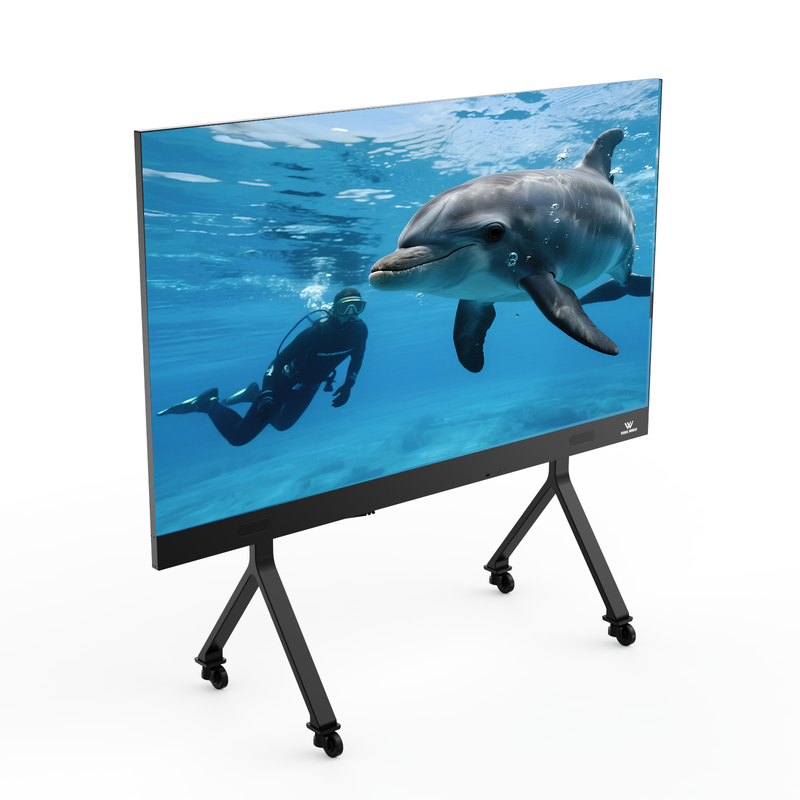

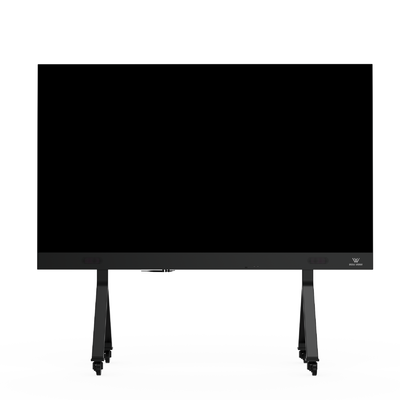

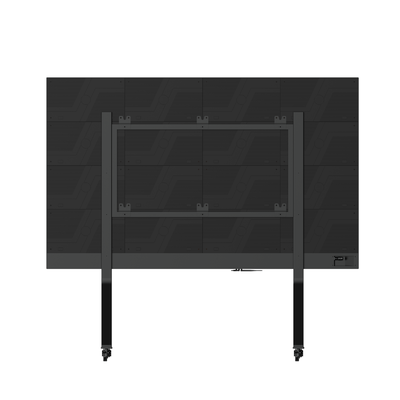

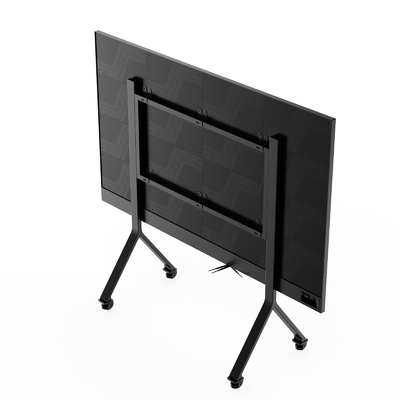

P1.56 Smart LED Poster Display COB 108" 16:9 Ratio Front Service For Multimedia Room
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.56 Smart LED Poster Display COB 108" 16:9 Ratio Front Service For Multimedia Room | Pixel Pitch: | 0.7mm,0.9mm,1.25mm,1.56mm |
|---|---|---|---|
| Display Size: | 2400*1350mm | LED Type: | COB |
| Cabinet Dimension: | 600*337.5 | Cabinet Material: | Die-casting Aluminum |
| Maintenance: | Front Service | Display Ratio: | 16:9 |
| Highlight: | P1.56 Smart LED Poster Display,COB LED display 108 inch,Front service LED display multimedia |
||
Product Description
P1.56 Smart LED Poster Display COB 108" 16:9 Ratio Front Service For Multimedia Room
Product Specifications
| Attribute | Value |
|---|---|
| Product Name | P1.56 Smart LED Poster Display COB 108" 16:9 Ratio Front Service For Multimedia Room |
| Pixel Pitch | 0.7mm,0.9mm,1.25mm,1.56mm |
| Display Size | 2400*1350mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5mm |
| Cabinet Material | Die-casting Aluminum |
| Maintenance | Front Service |
| Display Ratio | 16:9 |
Product Overview
The P1.56 Smart LED Poster Display is an advanced display solution designed for conferences, exhibitions, and advertising. With an ultra-fine 1.56mm pixel pitch and a 108-inch screen, it delivers crisp visuals and rich colors, making it a striking focal point in any setting.
Key Features
- Sleek & Lightweight Design: No complex installation required—operates just like a large TV.
- Height Adjustable: Adaptable for various environments and usage scenarios.
- Seamless Wireless Screen Sharing: Compatible with Windows, Mac OS, iOS, and Android for effortless screen mirroring.
- Efficient File Management: Supports file playback and organization, with options for selective or bulk deletion, categorizing files into images, music, videos, and more.
Technical Specifications
| Model | CrystalTV 108" (4X4) |
|---|---|
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| Cabinet Dimension (mm) | 600*337.5 | 600*337.5 | 600*337.5 | 600*337.5 |
| Module Size(mm) | 150x168.75 | 150x168.75 | 150x168.75 | 150x168.75 |
| LED Type | COB | COB | COB | COB |
| Display Size(mm) | 2400*1350 | 2400*1350 | 2400*1350 | 2400*1350 |
| Display Resolution | 3072*1728 | 2560*1440 | 1920*1080 | 1536*864 |
| Display Ratio | 16:9 | 16:9 | 16:9 | 16:9 |
| Cabinet Weight | 130KG (floor standing) 100KG (wall-mounted) | 130KG (floor standing) 100KG (wall-mounted) | 130KG (floor standing) 100KG (wall-mounted) | 130KG (floor standing) 100KG (wall-mounted) |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type | 1/36 | 1/40 | 1/60 | 1/48 |
| Maintenance | Front service | Front service | Front service | Front service |
| Brightness | 0-2000 nits | 0-800 nits | 0-800 nits | 1000 nits |
| Max Power Avg Power | 196W/m² 65W/m² | 280W/m² 95W/m² | 330W/m² 110W/m² | 330W/m² 100W/m² |
| IP Rating | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type | Floor Standing Wall Mounting Hanging | Floor Standing Wall Mounting Hanging | Floor Standing Wall Mounting Hanging | Floor Standing Wall Mounting Hanging |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170°V:170° | H:170°V:170° | H:170°V:170° | H:170°V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications
- Conference room
- Lecture theater
- Multimedia room
- Educational establishment
- Telemedicine
Frequently Asked Questions
Q1: Are you a manufacturer or trade company?
A1: We are a professional OEM/ODM manufacturer with more than 10 years of professional experience in the LED display screen industry.
Q2: What can I get from you?
A2: LED module, LED display screen, LED display screen series products.
Q3: How about your warranty period?
A3: 1-3 years warranty structure design, installation issues, programming screens.
Q4: How to use LED screens?
A4: We have a complete technical team, with a dedicated technical engineer and sales manager assigned to each customer. From pre-sales to during-sales and after-sales, we provide 24/7 service to ensure that you can operate your LED display proficiently in the shortest time possible.
Q5: What other services can you provide for LED displays?
A5: As our customer, you will have a dedicated technical engineer and sales manager who will visit you offline 1 to 3 times per year, providing offline maintenance and guidance on the latest technologies for your products.
