Outdoor P5.2-10.4 Transparent LED Display 1000×500mm Front Service IP65
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | P5.2-10.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2200 sqm/month |
|
Detail Information |
|||
| Product Name: | Outdoor P5.2-10.4 Transparent LED Display 1000×500mm Front Service IP65 | LED Type: | SMD1921 |
|---|---|---|---|
| Operating Temperature: | -20℃~+50℃ | Lifespan: | 100,000 Hours |
| Module Size: | 500x125 MM | Viewing Angle: | H:140°；V:140° |
| Gray Scale: | 14bit | Pixel Pitch: | 5.2-10.4mm |
Product Description

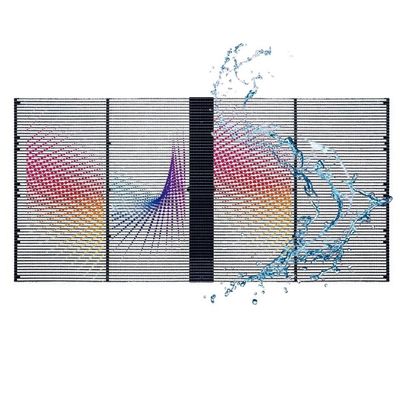

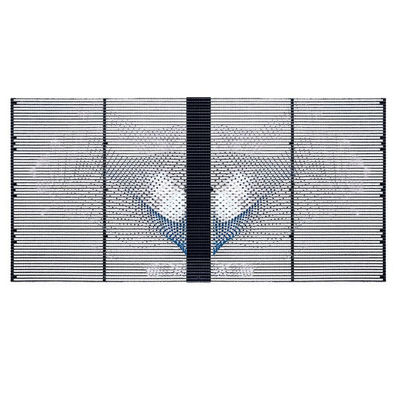

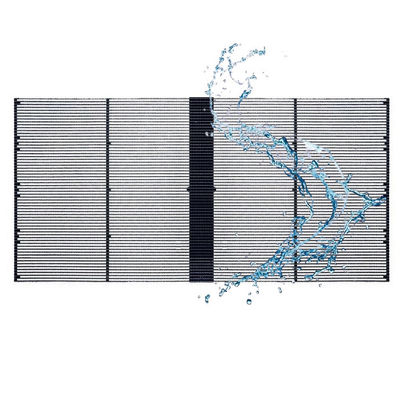

Outdoor P5.2-10.4 Transparent LED Display 1000×500mm Front Service IP65
Product Description:
Transparent LED screens provide an effective and compelling alternative to large format LED screens. The images on the screen are created by programming the LED to work together. By displaying the relevant pixel colors on the mapped LED, the lights are brought together to create the image. When integrated into a glass curtain wall, this effect is particularly powerful, allowing designers to provide screen solutions for retail buildings, with a focus on glass buildings without affecting the overall design.
Features:
- High contrast and brightness:Extra flexibility, weighs under 8.5 Kg/m2 and thinner than 25mm. Very convenient to use and move, saving a lot of transportation and assembling costs
- Stability long life time:Low power comsumption and energy saving, Low consumption of electricity to increase the lifetime of LED
- High Transparency and High Brightness:20-80% transparency rate, see through, suitable for glass wall mounting；>6500 nits brightness, for all outdoor environment
Technical Parameters:
| Technical Parameters | Transparent LED Display |
| Pixel Pitch: |
5.2-10.4 mm
|
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×500mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 15 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Transparent Rate: | 60% |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
Widely used for shopping malls, entertainment venues, building construction, government agencies, trade fair, fair, aiming at the exhibition, press conference, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
Advantage
1. The unit price depends on the quantity, we can offer you at a competitive price.
2. Your inquiry related to our products or prices will be replied in 24hours.
3. Well-trained and experienced staffs to answer all your enquiry regarding products.
4. Distributorship are offered for your unique design and some our current models.
5. Protection of your sales area, ideas of design and all your private information.
FAQ:
Q1: The model of LED display screens is generally represented by "P", such as P2, P3, P4... P8, P10. What does this mean?
A1: P3 P4..... P8, P10 indicates that the pixel pitch is 3mm, 4mm... 10mm, which determines the resolution of the display. The smaller the pixel pitch, the higher the resolution of the LED display.
Q2: What pixel pitch should I choose on my display?
A2: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q3: What information do I have to give you to order a monitor?
A3: You should provide the width/height of the monitor, main use, viewing distance, on-site photos and other special requirements before I can provide you with a detailed quotation list
Q5: How about delivery time?
A4: We will ship as soon as possible, but depending on the distance and some other necessary processes, it usually takes 2-3 weeks to receive the goods.
Q6: What if I don't know how to maintain the screen?
A6: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
