P31 Outdoor Transparent LED Display Aluminum Cabinet IP67 For Music Nights
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | OC31 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2200 sqm/month |
|
Detail Information |
|||
| Product Name: | P31 Outdoor Transparent LED Display Aluminum Cabinet IP67 For Music Nights | Pixel Pitch: | 31.25 Mm |
|---|---|---|---|
| Cabinet Dimension: | 500×1500mm | Cabinet Weight: | 9.75 Kg |
| Transparency: | 69% | Brightness: | 7000nits |
| IP Rating: | IP67 | Maintenance: | Front & Rear |
| Highlight: | outdoor transparent LED display aluminum cabinet,IP67 waterproof LED display,transparent LED screen for music nights |
||
Product Description
P31 Outdoor Transparent LED Display Aluminum Cabinet IP67 For Music Nights
Product Description
The P31 Outdoor Transparent LED Display seamlessly integrates with building walls, offering complete waterproof and dustproof protection while maintaining excellent light transmittance and high-brightness display performance. This ensures perfect visibility even in brightly lit environments, delivering outstanding visual clarity under various lighting conditions.
Features

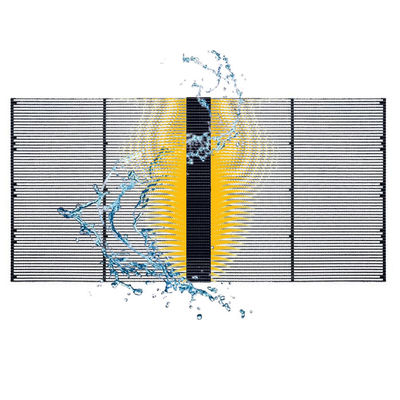

- High Ingress Protection - The IP67 certification signifies that the product remains stable even in harsh weather or industrial environments.
- Light Weight & Easy Installation & Maintenance - The LED screen is lightweight at around 8-13kg per square meter and supports quick installation and maintenance.
- High Brightness & High Transparency - This LED screen can reach a brightness of 4,500-7,000nits, while the screen transparency can reach 69% to 85%.

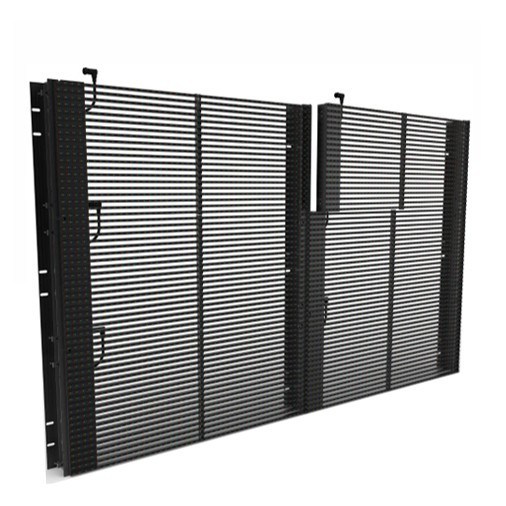

- Independent Led Strip Design - The curtain LED cabinet is structured with a single light bar arranged independently of each other. This design allows each light bar to be controlled individually, enabling precise adjustment of light brightness and color. Users can easily plug and unplug the light bars according to their personal preference or environmental needs.
Technical Parameters
| Product Model: | OC31 |
|---|---|
| Pixel Pitch: | 31.25 mm |
| LED Type: | DIP346 |
| Cabinet Dimension: | 500x1500 mm |
| LED Strip Quantity: | 16 pcs |
| Cabinet Weight: | 9.75 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | Static |
| Brightness: | 7000 nits |
| Max/Avg Power: | 300/100 W/m² |
| Maintenance: | Front&Rear service |
| Environment: | Outdoor Use |
| Transparency: | 69% |
| IP Rating: | IP67 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bit |
| Viewing Angle: | H:100°; V:60° |
| Operational Temp: | -40'℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Applications
Widely used in shopping malls, entertainment venues, architectural projects, government institutions, trade shows, exhibitions, press conferences, airports, hotels, station waiting areas, indoor arenas, and various other public facilities.
Service and Support
Pre-sale service:
- Inquiries are answered within 24 hours.
- Market research and forecasts.
- Customized solutions based on customer needs.
- Datasheets and samples were provided.
- Additional services like custom packing and factory visits.
In-sale service:
- Continuous monitoring of production.
- Photos and videos of production upon request.
- Free spare parts.
After-sale service:
- Complaints were addressed within 24 hours.
- Maintenance guidance and solutions within 48 hours.
- 24-month warranty.
- Free technician training.
- Free documents: installation guide, software manual, maintenance guide, and control system software CD.
FAQ
Q1: Can I order a sample of the LED screen?
A1: Yes, we accept the ordering of samples for testing and quality inspection.
Q2: How long is the warranty period?
A2: We offer a comprehensive two-year warranty for all products.
Q3: How to ensure product quality?
A3: We are a genuine manufacturer and all of our products are produced in-house, which allows us to guarantee the quality of our products accurately.
Q4: What technical support can you provide?
A4: We provide various technical training free of charge, including the operation and maintenance training of LED displays in the factory.
Q5: To order a display, what kind of information do I have to offer you?
A5: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
