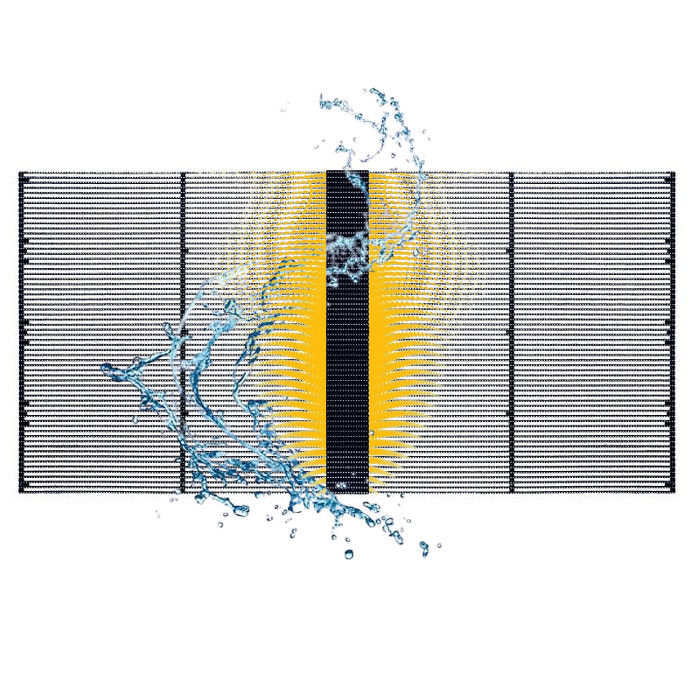

P5.2-10.4 Outdoor Transparent LED Display 1000×500mm 75% High Transparency
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | P5.2-10.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2200 sqm/month |
|
Detail Information |
|||
| Product Name: | P5.2-10.4 Outdoor Transparent LED Display 1000×500mm 75% High Transparency | Pixel Pitch: | 5.2-10.4mm |
|---|---|---|---|
| LED Type: | SMD1921 | Cabinet Dimension: | 1000×500mm |
| Module Size: | 500x125mm | Brightness: | 5000nits |
| Transparency Rate: | 75% | Refresh Rate: | 1920Hz |
Product Description
P5.2-10.4 Outdoor Transparent LED Display 1000×500mm 75% High Transparency
Product Description:
P5.2-10.4 Transparent LED screens provide a highly effective and captivating alternative to traditional large-format LED displays. These screens produce cohesive images by coordinating LEDs to light up in precise pixel colors. When integrated into glass curtain walls, they create an imposing effect, allowing designers to implement display solutions for retail spaces—particularly those with glass facades—without interrupting the architectural design.
Features:
- High contrast and brightness
Extra flexibility, weighs under 8.5 Kg/m2 and thinner than 25mm. Very convenient to use and move, saving a lot of transportation and assembling costs
- Stability long life time
Low power comsumption and energy saving, Low consumption of electricity to increase the lifetime of LED
- High Transparency
75% transparency rate, see through, suitable for glass wall mounting；>5000 nits brightness, for all outdoor environment
Technical Parameters:
| Technical Parameters | Transparent LED Display |
| Pixel Pitch: |
5.2-10.4 mm
|
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×500mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 15 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m² |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Transparent Rate: | 75% |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
| Installation Type: | Mounting/Hanging |
Applications:
Widely utilized in shopping malls, entertainment venues, architectural projects, government institutions, trade shows, and for purposes such as exhibitions, press conferences, airports, hotels, station waiting areas, indoor arenas, and various other public facilities.
FAQ:
Q1:How does your factory do regarding quality control?
A1:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CCC,PSE,RCM,CE,ROHS,FCC,IP65,CNAS authentication.
Q2:What is your MOQ?
A2:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q3: What is your best service?
A3: 1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q4. How about your delivery time?
A4: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the
quantity of your order.
Q5:How about your Warranty Term?
A5: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have
professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also
help you get over any problems.
