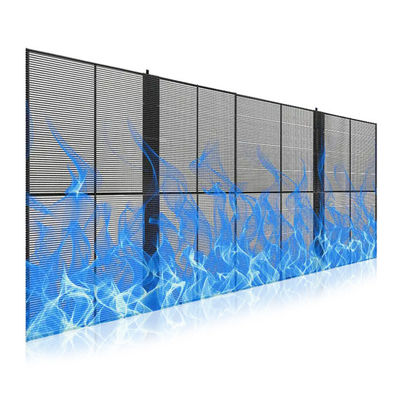

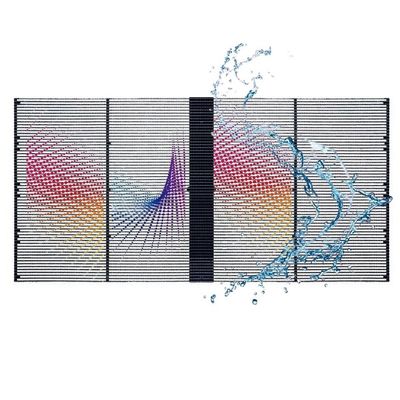

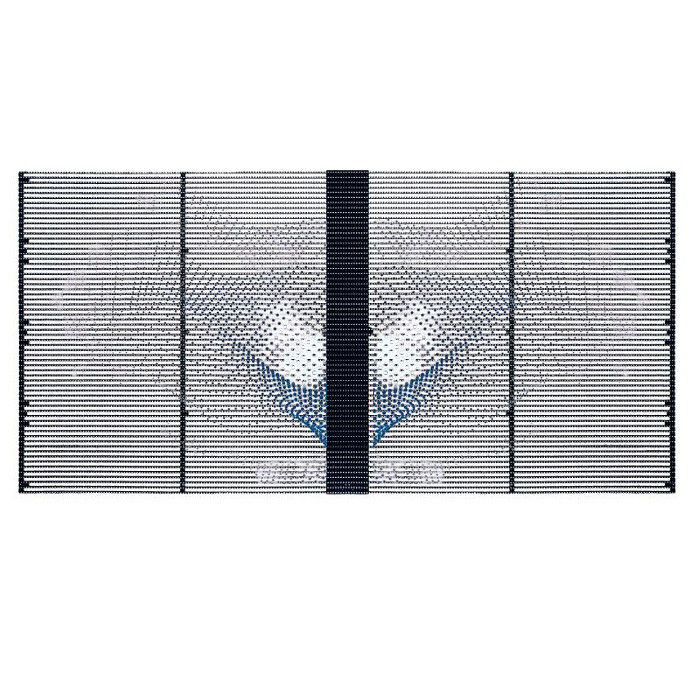

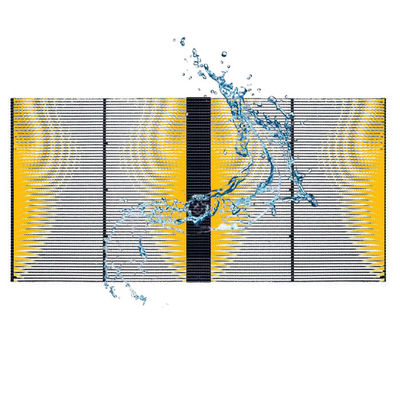

Outdoor P5.2-10.4 High Transparency LED Display 15kg 5000 nits For Exhibition
Outdoor P5.2-10.4 High Transparency LED Display 15kg 5000 nits For Exhibition
Brand Name
VW
Product Model
P5.2-10.4
Certificate
CE, ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
2200 sqm/month
Product Details
Highlight:
Outdoor P5.2 transparent LED display
,High brightness 5000 nits LED screen
,Lightweight 15kg exhibition LED display
Product Name:
Outdoor P5.2-10.4 High Transparency LED Display 15kg 5000 Nits For Exhibition
LED Type:
SMD1921
Operating Temperature:
-20℃~+50℃
Lifespan:
100,000 Hours
Module Size:
500x125 MM
Viewing Angle:
H:140°；V:140°
Gray Scale:
14bit
Pixel Pitch:
5.2-10.4mm
Product Description
Detailed Specifications And Features
Outdoor P5.2-10.4 High Transparency LED Display 15kg 5000 nits For Exhibition
Product Description
Transparent LED screens provide an effective and compelling alternative to large format LED screens. The images on the screen are created by programming the LED to work together. By displaying the relevant pixel colors on the mapped LED, the lights are brought together to create the image. When integrated into a glass curtain wall, this effect is particularly powerful, allowing designers to provide screen solutions for retail buildings, with a focus on glass buildings without affecting the overall design.
Features
- High contrast and brightness: Extra flexibility, weighs under 8.5 Kg/m2 and thinner than 25mm. Very convenient to use and move, saving a lot of transportation and assembling costs
- Stability long life time: Low power consumption and energy saving, Low consumption of electricity to increase the lifetime of LED
- High Transparency and High Brightness: 20-80% transparency rate, see through, suitable for glass wall mounting；>6500 nits brightness, for all outdoor environment
Technical Parameters
| Technical Parameters | Transparent LED Display |
|---|---|
| Pixel Pitch: | 5.2-10.4 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×500mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 15 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Transparent Rate: | 60% |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications
Widely used for shopping malls, entertainment venues, building construction, government agencies, trade fair, fair, aiming at the exhibition, press conference, airports, hotels, internal, station waiting area, indoor stadium, and a variety of public facilities and etc.
FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A1: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display. Pixel pitch is smaller, led display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A2: It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display, what kind of information do I have to offer you?
A3: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Q4: How to install?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5: Can I order a sample?
A5: Yes, We welcome customers to order samples to check our product quality of our products and service.
