P50 Outdoor Transparent LED Display with 3500nits Brightness and 80% Transparency
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | OC50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2200 sqm/month |
|
Detail Information |
|||
| Product Name: | P50 Outdoor Transparent LED Display With 3500nits Brightness And 80% Transparency | Pixel Pitch: | 50mm |
|---|---|---|---|
| LED Type: | DIP346 | Cabinet Dimension: | 500×1500mm |
| Cabinet Weight: | 7.5kg | IP Rating: | IP67 |
| Maintenance: | Front & Rear | Refresh Rate: | >1920Hz |
| Highlight: | P50 transparent LED display,outdoor LED screen with 3500nits,80% transparent LED display |
||
Product Description
| Attribute | Value |
|---|---|
| Product name | P50 Outdoor Transparent LED Display with 3500nits Brightness and 80% Transparency |
| Pixel Pitch | 50mm |
| LED Type | DIP346 |
| Cabinet dimension | 500×1500mm |
| Cabinet Weight | 7.5kg |
| IP Rating | IP67 |
| Maintenance | Front & Rear |
| Refresh rate | >1920Hz |
This P50 Outdoor Transparent LED Display fits freely with the wall and is not only waterproof and dustproof, but also has excellent light transmittance and high-brightness display effect, so that it can remain clearly visible even in a well-lit environment.

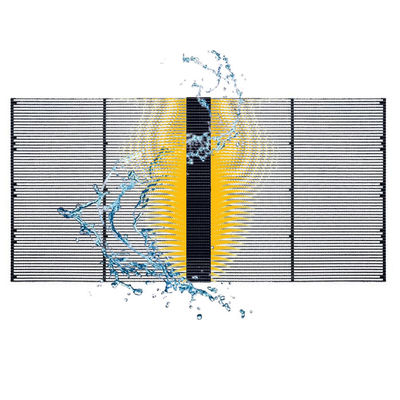

- High Ingress Protection - The IP67 certification signifies that the product remains stable even in harsh weather or industrial environments.
- Light Weight & Easy Installation&Maintenance - The LED screen is lightweight at around 8-13kg per square meter and supports quick installation and maintenance.
- High Brightness & High Transparency - This LED screen can reach a brightness of 4,500-7,000nits, while the screen transparency can reach 69% to 85%.

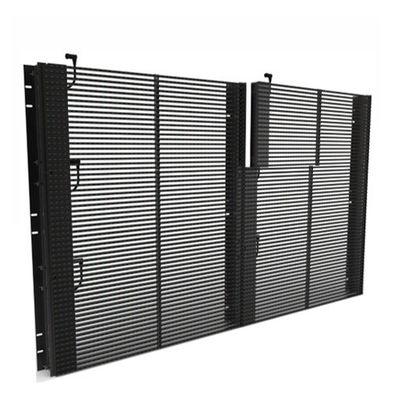

- Independent Led Strip Design - The curtain LED cabinet is structured with a single light bar arranged independently of each other. This design allows each light bar to be controlled individually, enabling precise adjustment of light brightness and color. Users can easily plug and unplug the light bars according to their personal preference or environmental needs.
| Product Model: | 0C50 |
| Pixel Pitch: | 50 mm |
| LED Type: | DIP346 |
| Cabinet Dimension: | 500x1500 mm |
| LED Strip Quantity: | 10 pcs |
| Cabinet Weight: | 7.5 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | Static |
| Brightness: | 3500 nits |
| Max/Avg Power: | 160/55 W/m2 |
| Maintenance: | Front&Rear service |
| Environment: | Outdoor Use |
| Transparency: | 80% |
| IP Rating: | IP67 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bit |
| Viewing Angle: | H:100°; V:60° |
| Operational Temp: | -40°C~+60°C |
| Operational Humidity: | 10%~90% RH |
Widely used in shopping malls, entertainment venues, architectural projects, government institutions, trade shows, exhibitions, press conferences, airports, hotels, station waiting areas, indoor arenas, and various other public facilities.
- Inquiries are answered within 24 hours.
- Market research and forecasts.
- Customized solutions based on customer needs.
- Datasheets and samples were provided.
- Additional services like custom packing and factory visits.
- Continuous monitoring of production.
- Photos and videos of production upon request.
- Free spare parts.
- Complaints were addressed within 24 hours.
- Maintenance guidance and solutions within 48 hours.
- 24-month warranty.
- Free technician training.
- Free documents: installation guide, software manual, maintenance guide, and control system software CD.
A1: Yes, we accept the ordering of samples for testing and quality inspection.
A2: We offer a comprehensive two-year warranty for all products.
A3: We use the Nova control system to control the content and screen.
A4: We are a genuine manufacturer and all of our products are produced in-house, which allows us to guarantee the quality of our products accurately.
A5: We provide various technical training free of charge, including the operation and maintenance training of LED displays in the factory.
