Outdoor P5.2-10.4 Transparent LED Display Screen 60% Transparency 5000 nits
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | P5.2-10.4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood box |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2200 sqm/month |
|
Detail Information |
|||
| Product Name: | Outdoor P5.2-10.4 Transparent LED Display Screen 60% Transparency 5000 Nits | LED Type: | SMD1921 |
|---|---|---|---|
| Operating Temperature: | -20℃~+50℃ | Lifespan: | 100,000 Hours |
| Module Size: | 500x125 MM | Viewing Angle: | H:140°；V:140° |
| Gray Scale: | 14bit | Pixel Pitch: | 5.2-10.4mm |
| Highlight: | Outdoor P5.2 transparent LED screen,Transparent LED display 5000 nits,P5.2-10.4 LED screen with warranty |
||
Product Description

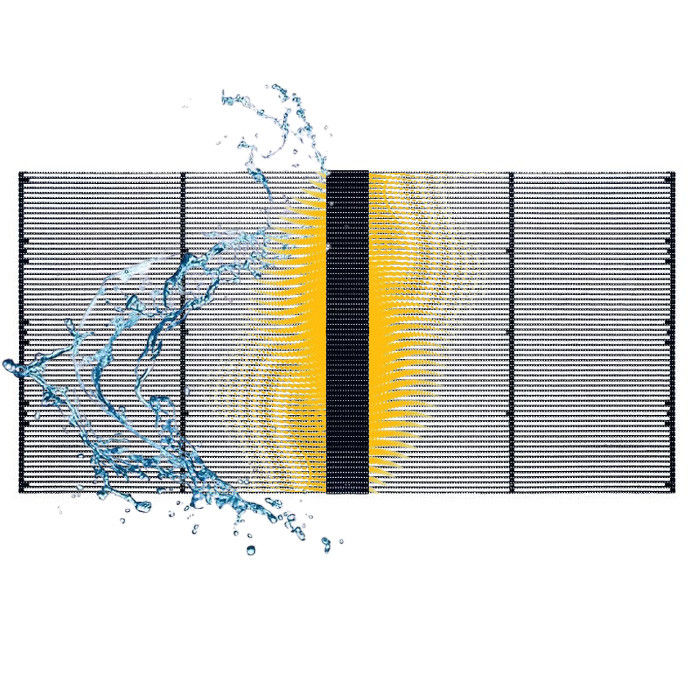

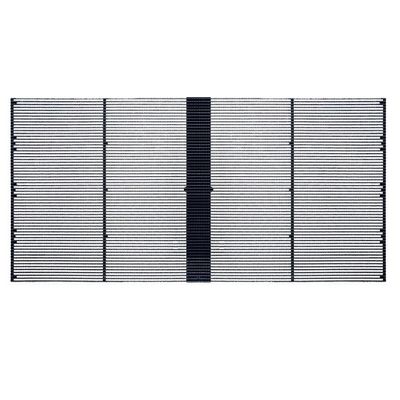

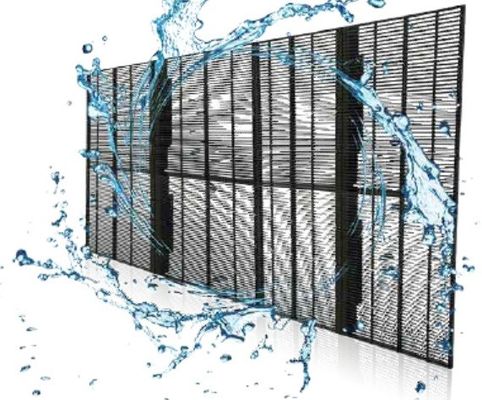

Outdoor P5.2-10.4 Transparent LED Display Screen
Product Attributes
| Attribute | Value |
|---|---|
| Product Name | Outdoor P5.2-10.4 Transparent LED Display Screen 60% Transparency 5000 nits |
| LED Type | SMD1921 |
| Operating Temperature | -20℃~+50℃ |
| Lifespan | 100,000 Hours |
| Module Size | 500x125 MM |
| Viewing Angle | H:140°；V:140° |
| Gray Scale | 14bit |
| Pixel Pitch | 5.2-10.4mm |
Product Description
Transparent LED screens provide an effective and compelling alternative to large format LED screens. The images on the screen are created by programming the LED to work together. By displaying the relevant pixel colors on the mapped LED, the lights are brought together to create the image. When integrated into a glass curtain wall, this effect is particularly powerful, allowing designers to provide screen solutions for retail buildings, with a focus on glass buildings without affecting the overall design.
Key Features
- High contrast and brightness: Extra flexibility, weighs under 8.5 Kg/m² and thinner than 25mm. Very convenient to use and move, saving transportation and assembling costs
- Stability long life time: Low power consumption and energy saving, increasing the lifetime of LED
- High Transparency and High Brightness: 20-80% transparency rate, see through, suitable for glass wall mounting; >6500 nits brightness, for all outdoor environments
Technical Parameters
| Parameter | Specification |
|---|---|
| Pixel Pitch | 5.2-10.4 mm |
| LED Type | SMD1921 |
| Cabinet Dimension | 1000×500mm |
| Module Size | 500x125 mm |
| Cabinet Weight | 15 kg |
| Cabinet Material | Aluminum |
| Driving Type | 1/6 |
| Brightness | 5000 nits |
| Max/Avg Power | 800/280 W/m² |
| Maintenance | Front service |
| IP Rating | IP65 |
| Refresh Rate | >1920 Hz |
| Transparent Rate | 60% |
| Gray Scale | 14 bit |
| Viewing Angle | H:140°；V:140° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%~90% RH |
Applications
Widely used for shopping malls, entertainment venues, building construction, government agencies, trade fairs, exhibitions, press conferences, airports, hotels, station waiting areas, indoor stadiums, and various public facilities.
Frequently Asked Questions
Q1: Are you the manufacturer or trading company? and where is your factory?
A1: We are professional manufacturer devoted to producing LED outdoor, LED indoor display, rental display, stadium screen, advertising screen and stage screen etc. You are warmly welcome to visit our factory to learn the technical and maintenance skills and everything you need in our factory.
Q2: May be we will need some samples, what is the lead time of samples and lead time of order?
A2: We will arrange your sample of the charges within 1-2 days and arrange your order within 5-12 days after receiving your payment.
Q3: How can I place an order?
A3: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Whatsapp/Wechat/Skype/Email/Phone, in case of any delays.
Q4: How about the quality?
A4: Our LED products must be testing of at least 72 hours before shipping, from purchase raw materials to ship. Each step has strict quality control systems to ensure LED display with good quality.
Q5: Can you offer technical support? Since it's my first time....
A5: We provide free training for our customers, teaching how to set up screens, make configuration of parameters, broadcast videos through Nova star and Colorlight or Linsn control systems. Our engineer can directly teach you how to control, or help you if you really don't know how to control (Our Engineer can text English, we can save more time).
