P0.7 COB Small Pixel Pitch LED Display Front Service IP54 For Billboard

P0.7 COB Small Pixel Pitch LED Display Front Service IP54 For Billboard
Brand Name
Visual World
Product Model
P0.7
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:

P0.7 COB LED Display

,

IP54 Small Pixel Pitch LED Display

,

Front Service LED Display

Product Name: P0.7 COB Small Pixel Pitch LED Display Front Service IP54 For Billboard
Pixel Pitch: P0.7/P0.9/P1.25/P1.56
Cabinet Material: Die-casting Aluminum
Cabinet Size: 600x337.5mm
Maintenance: Front Service
LED Type: COB
Cabinet Weight: 4.6kg
Installation Type: Mounting/Hanging/Stacking
Product Description
Detailed Specifications And Features

P0.7 COB Small Pixel Pitch LED Display Front Service IP54 For Billboard



Product Description:

Introducing our P0.7 COB Small Pixel Pitch Display, a groundbreaking innovation designed to redefine visual experiences. Leveraging cutting-edge display technology, it delivers exceptional performance, energy efficiency, and stunning clarity, making it the ideal choice for premium digital signage, immersive virtual reality environments, and beyond.

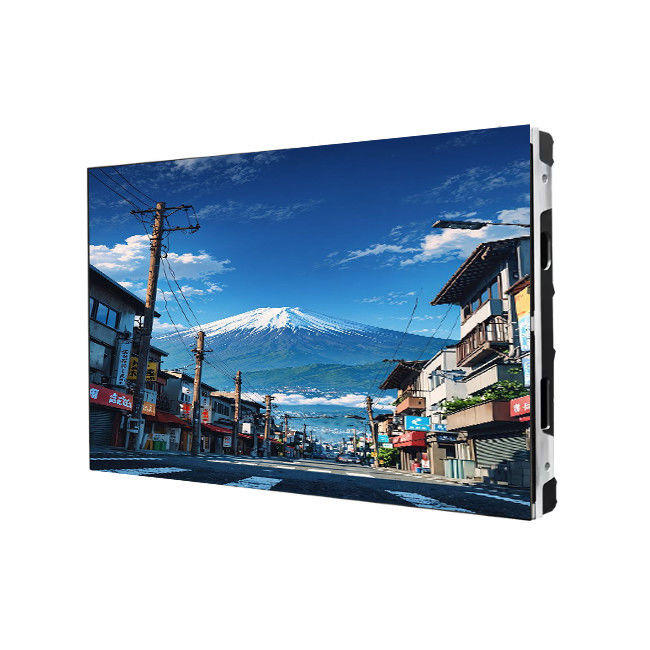

P0.7 COB Small Pixel Pitch LED Display  Front Service IP54 For Billboard 0

Features:

  • High Brightness: Brightness up to 1000nits.
  • Energy Saving: Energy saving 30%.
  • High Reliability: Flip-chip common cathode, better heat dissipation, and more stability.
  • Patented Appearance Treatment: No white edge and burrs of the module; light transmittance up to 75% and low temperature.
  • High Contrast Ratio: >20000: 1.

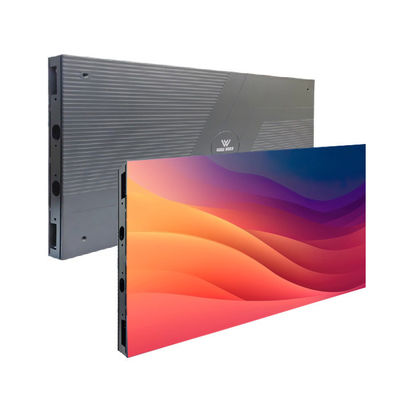

P0.7 COB Small Pixel Pitch LED Display  Front Service IP54 For Billboard 1



Technical Parameters:

Model P0.7
Pixel Pitch 0.7mm
LED Type COB
Cabinet Dimension 600*337.5*35mm
Module Size 150x168.75 mm
Cabinet Weight 4.6kg
Cabinet Material Die-casting Aluminum
Driving Type: 1/36
maintenance Front service
Brightness 0-2000 nits
Max/Avg Power 390/136 W/m2
IP Rating

Front: IP54

Rear: IP30

Refresh Rate >3840Hz
Installation Type

Mounting

Hanging

Stacking

Gray Scale 16bit
Viewing Angle H:170°;V:170°
Operational Temp -20℃~+50℃
Operational Humidity 10%-90%RH



Applications:

  • Digital Signage system
  • Chain store
  • Street furniture
  • Billboard
  • Football stadium
  • Perimeter LED poster
  • Arena display, etc.

P0.7 COB Small Pixel Pitch LED Display  Front Service IP54 For Billboard 2P0.7 COB Small Pixel Pitch LED Display  Front Service IP54 For Billboard 3



FAQ:

Q1: Is it possible to print my logo on the product?
A1: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.



Q2: Can I place a sample order for the LED screen?
A2: Yes, we welcome sample orders for testing and quality checks. Mixed samples are also acceptable.



Q3: What is your delivery time?
A3: Generally, delivery takes 7–15 days after receiving your deposit. The specific delivery time depends on the order items and quantities.



Q4: What is the control system, and how does it work?
A4: We use the Nova Taurus Series asynchronous control system, which supports cluster play and management. It also allows control via APP, phone, Wi-Fi, iPad, laptop, PC, and cloud. This makes operation very easy and convenient.
