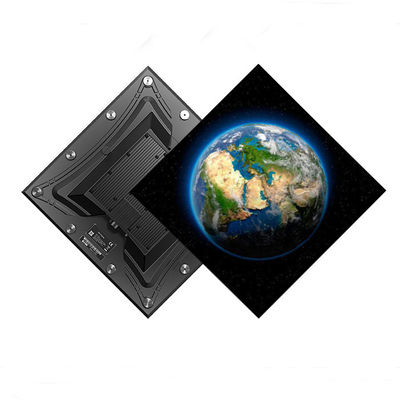

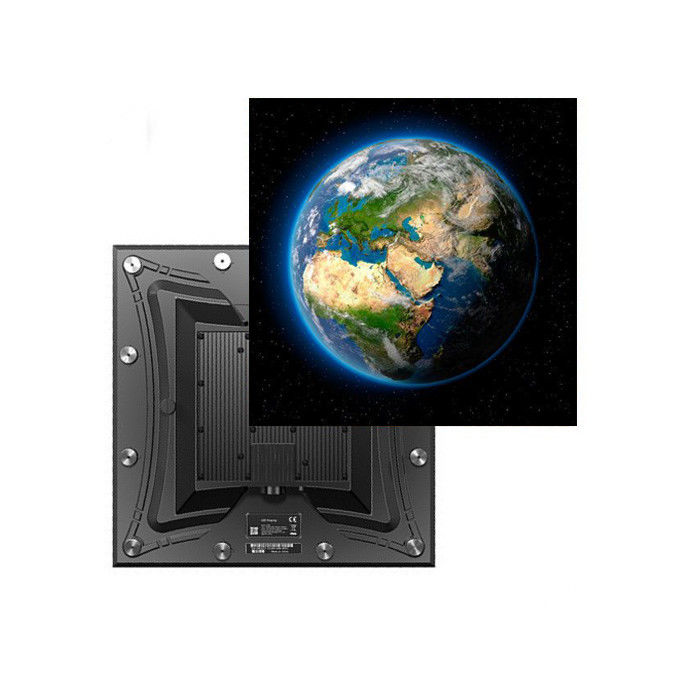

P2.85 Smart Outdoor Fixed LED Screen 45° Design With Magnetic Mounting
Smart Outdoor Fixed LED Screen
,P2.85 Outdoor Fixed LED Screen
P2.85 Smart Outdoor Fixed LED Screen 45° Design With Magnetic Mounting
Product Description:
320x320mm Smart LED module / Modular Design / less weight, high protection, easy to installation / IP67 protection level, waterproof and anti-salt / Easy to assemble, install, and maintain / Signal and power cable all in one.
Product Quick Details
1. Diecasting aluminum
2. Front maintenance
3. Power box integration
4. Concave/convex wall
5. 2-in-1 transmission cable
TECHNICAL SPECIFICATIONS
| Product Model: | SMART BLOCK |
| Pixel Pitch: | 2.85 mm |
| LED Type: | SMD1921 |
| Pixel Density: | 62500 dots/sqm |
| Cabinet Size: | 320x320mm |
| Module Resolution: | 80*80 |
| Module Weight: | 1.54 kg |
| Module+Frame Weight: | 2.22 kg |
| Module Material: | Die-casting aluminum |
| Driving Type: | 1/16 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| Environment: | Outdoor Use |
| IP Rating: | IP67 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 16 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -30℃~+60℃ |
| Operational Humidity: | 10%~80% RH |
FEATURES
Visual World SMART BLOCK series integrated led module is customized for indoor/outdoor use. High precision and waterproof modules, magnetic front access, 45°module edges to make concave/convex screen, synchronous transmission of power & signal, less messy cables, good heat dissipation. High brightness and excellent visual performance.
- DIECASTING ALUMINUM
CNC die-casting aluminum frame, strong and durable. The heat sink design at the power box speeds up the heat dissipation.
- FRONT MAINTENANCE

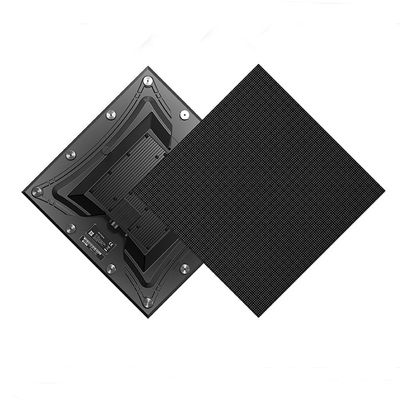

Magnetic-led modules strongly connect to the module frame. A safety rope is optional to tighten the connection.
- POWERBOX INTEGRATION
The power supply, receiving card, and hub are integrated into the 320x320mm module, making the module can be used as a single panel.
- CONCURVED VIDEO WALL
The edges of the module are 45° beveled edge treatment. Which allows the module to build a 90°straight corner, concave/convex video wall.
- 2-in-1 TRANSMISSION CABLE

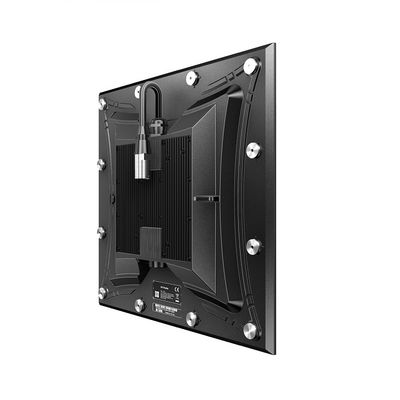

Customized 2 in 1 cable and waterproof connectors ensure simultaneous transmission of the power and signal.

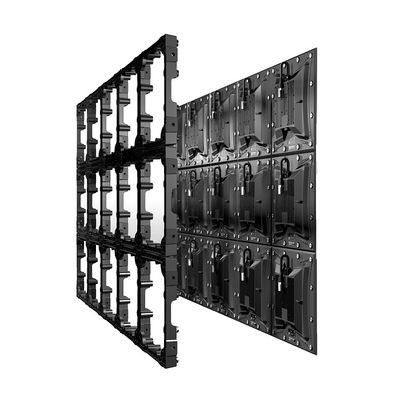

INSTALLATION METHOD
APPLICATION FIELD
- Shop guide desk
- Park entrance
- Gallery showcase
- Outlets storefront
- Arc video wall
Pre-sale service:
- Inquiries are answered within 24 hours.
- Market research and forecasts.
- Customized solutions based on customer needs.
- Datasheets and samples were provided.
- Additional services like custom packing and factory visits.
In-sale service:
- Continuous monitoring of production.
- Photos and videos of production upon request.
- Free spare parts.
After-sale service:
- Complaints were addressed within 24 hours.
- Maintenance guidance and solutions within 48 hours.
- 24-month warranty.
- Free technician training.
- Free documents: installation guide, software manual, maintenance guide, and control system software CD.
