P3.9 Outdoor LED Display Module 250×500mm Front Service Magnetic 45° Design

P3.9 Outdoor LED Display Module 250×500mm Front Service Magnetic 45° Design
Brand Name
VW
Product Model
Smart Block Plus
Certificate
CE, ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
2000sqm/month
Product Details
Highlight:

P3.9 outdoor LED display module

,

250×500mm front service LED module

,

45° magnetic outdoor LED display
Product Name: P3.9 Outdoor LED Display Module 250×500mm Front Service Magnetic 45° Design
Module Size: 250mm*500mm
Power Consumption: 600W/㎡
Installation Method: Wall Mounted/Hanging
Edge: 45° Design
Material: Aluminum
IP Rate: IP66
Operating Humidity: 10%~90%
Operating Temperature: -20°C~50°C
Brightness: 5000nits
Product Description
Detailed Specifications And Features
P3.9 Outdoor LED Display Module 250×500mm Front Service Magnetic 45° Design
Our SMART BLOCK-PLUS series Outdoor LED Display Module is engineered for diverse outdoor applications. This 250mm × 500mm module integrates advanced technology into a high-performance product. The highly integrated design combines essential LED display components into a single panel, enabling compact displays and assembly into various non-standard sizes and angled corner configurations.
SMART BLOCK-PLUS Outdoor LED Display Module overview
Key Features
  • Integrated Design: Combines power supply, receiving card, and module into one cabinet
  • IP67 Protection: High protection level ensuring waterproof and dustproof performance
  • Efficient Heat Dissipation: No external air-conditioning required
  • Cable All-in-One Design: Signal and power cables integrated into single solution
  • Light Weight: Only 3.5kg per piece, reducing shipping costs
  • Magnetic Design: Quick disassembly and installation capabilities
LED module magnetic design and quick installation features
45° Design: Bevel edge design enables various shape splicing configurations

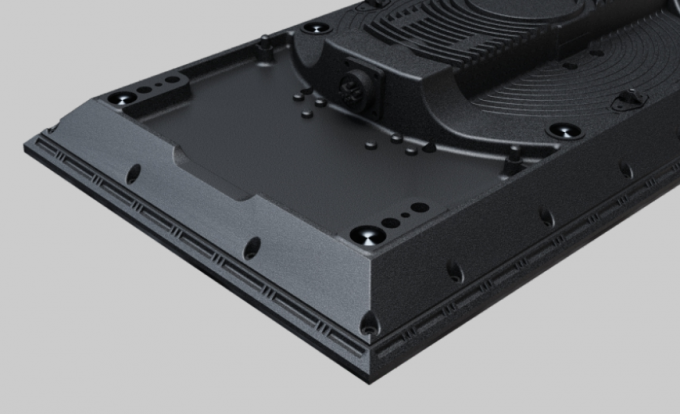

45° bevel edge design for shape splicing
Technical Specifications
Parameter P2.97 P3.91
Pixel Pitch 2.97 mm 3.91 mm
LED Type SMD1415 SMD1921
Cabinet Dimension 250×500 mm 250×500 mm
Module Size 250×250 mm 250×250 mm
Cabinet Weight 3.5 kg/pcs 3.5 kg/pcs
Cabinet Material Die-casting Aluminum Die-casting Aluminum
Driving Type 1/21 1/16
Brightness >5000 nits >5000 nits
Max/Avg Power 97w/pcs 97w/pcs
Maintenance Front service Front service
Environment Outdoor Use Outdoor Use
IP Rating F: IP66, R: IP66 F: IP66, R: IP66
Refresh Rate >3840 Hz >3840 Hz
Installation Type Mounting/Hanging Mounting/Hanging
Gray Scale 14 bit 14 bit
Viewing Angle H:140°; V:140° H:140°; V:140°
Operational Temp -20℃~+60℃ -20℃~+60℃
Operational Humidity 10%~90% RH 10%~90% RH
Applications
Our SMART BLOCK PLUS integrated LED module is highly recommended for outdoor video wall projects. The special 45° edges design enables creation of LED screens with various shapes and display areas. Contact us to learn more about this versatile product.
LED module applications and installation examples
Frequently Asked Questions
What is the difference between indoor and outdoor LED displays?
Indoor screens: 600-1200 nits brightness, IP30/IP40 protection, pixel pitch (P0.6-P3.9). Outdoor screens: ≥3500-12000 nits, IP66/IP65/IP54 waterproof, pixel pitch (P3.9-P10).
What control systems do you support?
Standard compatibility with NovaStar and Colorlight. We also offer all-in-one solutions with built-in controllers.
Do you provide certifications for global markets?
Yes. All products include CE, FCC, RoHS, ISO and CCC. Optional ETL (North America), PSE (Japan), and SASO (Saudi Arabia) available.
What is your warranty and after-sales service?
3-year warranty on panels. 24/7 online technical support + local on-site service in 100+ countries. Spare parts shipped within 24 hours.
How does your factory do quality control?
We strictly quality control raw materials from suppliers, ensuring high-quality screens for every customer.
When do you ship?
Depending on order size and quantity, we can deliver finished LED screens within 7-15 working days at the earliest.
