P2.5 5500nits High Brightness Aliuminum Profile Outdoor Fixed LED Display Screen
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Pixel Pitch: | 2.5-16mm | Cabinet Size: | 1000x1000x90mm |
|---|---|---|---|
| Cabinet Material: | Aliuminum Profile | Cabinet Weight: | 30kg/sqm |
| Module Size: | 500mm X 250mm | Module Connection: | Hard Connection |
| Operating Temperature: | -20°C To +60°C | Lifespan: | 100000 Hours |
| Refresh Rate: | ≥1920Hz | Working Voltage: | AC100-240V/50-60HZ |
| Ip Rating: | IP65 | Gray Scale: | 14 Bit |
| Color Temperature: | 6500K Adjustable | Brightness: | ≥6500nits |
| High Light: | Aliuminum Profile LED Display Screen,5500nits LED Display Screen,P2.5 Outdoor Fixed LED Display |
||
Product Description
6500nits High Brightness Aliuminum Profile Outdoor Fixed LED Display Screen
Product Description:
100% full front access fixed LED Display / 1000*1000mm Aluminum profile LED Panel / Wall-mounted outdoor LED screen / Waterproof LED Video wall / Outdoor LED screen without fan
Features:
- High brightness:the brightness can be over 6000nits, even 8000nits.
- Flanless design:Good heat dissipation without fans
- Front access:100% full front service, led module and power box all can be took out from front side.
- Aluminum module:Aluminum bottom base of module, more stable and good heat dissipation.
Technical Parameters:
| Product Model: | P2.5 | P3 | P3.076 | P3.33 | P3.33 | P4 | P4 |
| Pixel Pitch: | 2.5mm | 3mm | 3.076mm | 3.33mm | 3.33mm | 4mm | 4mm |
| LED Type: | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 1024x1024mm | 960x960mm |
| Module Size: | 160×160mm | 192×192mm | 192×192mm | 160×160mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/16 | 1/16 | 1/13 | 1/12 | 1/12 | 1/8 | 1/10 |
| Brightness: | 5500 nits | 5500 nits | 5000 nits | 5500 nits | 5500 nits | 6500 nits | 5500 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
| Product Model: | P10 | P16 |
| Pixel Pitch: | 10mm | 16mm |
| LED Type: | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 1024x1024mm |
| Module Size: | 320×160mm | 256×256mm |
| Maintenance | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel |
| Driving Type: | 1/2 | Static |
| Brightness: | 6000 nits | 6500 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH |
Drawing:

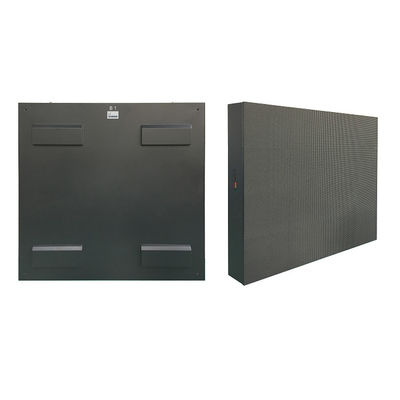

Outdoor waterproof 1000x1000x90mm Aluminum Profile LED Panel.
Application:
Wharf Mall
Train station
Theme Park
Outdoor activity area
Building exterior wall
creative modeling
Park entrance
FAQ:
Q1:Can we custom LED display screen size?
A1: With extensive experience in a diverse range of markets and applications, we ensure the development of a unique LED video wall, configured LED video wall, or a custom display that matches your exact requirements. We provide custom LED display, custom shape LED screens of any sizes including giant and slim LED display and so much more. The bigger size is with the better effect . So just feel free to contact us , we could provide you the reasonable and suitable solution for your project.
Q2:How to install it after received?
A2: We will offer you the drawing to guide you for installation, even send our engineer toyou for help if needed.
Q3: What's the weight of one cabinet?
A3: One standard 960x960mm OFR cabinet is 28kg.
Q4: Why do you recommend to use OFR die casting aluminum cabinet?
A4: Because OFR die casting aluminum cabinet is light and thin, the screen will looks beautiful, meantime easily for installation. And if you need to use the screen for rental in the future, OFR can do that, too.
Q5: Are you trading company or manufacturer?
A5: VISUAL WORLD is a professional LED display manufacturer, having been enrolled in led display industry with professional
R&D team and skilled QC team for 10 years.
