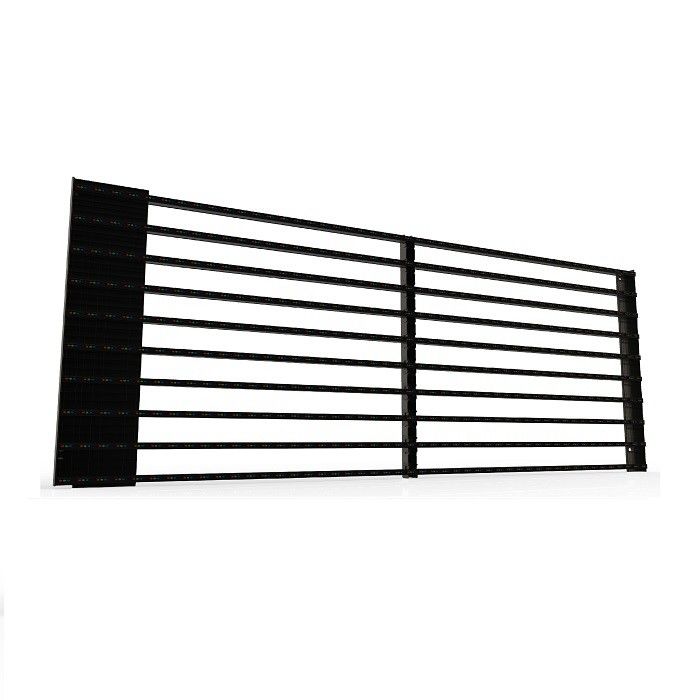

P15.625 Outdoor LED Curtain Display 500x1000mm 10000 nits 70% Transparency IP67
Outdoor LED curtain display 10000 nits
,P15.625 LED curtain display IP67
,500x1000mm transparent LED curtain display
P15.625 Outdoor LED Curtain Display 500x1000mm 10000 nits 70% Transparency IP67
DESCRIPTION
Outdoor curtain transparent LED Display / Building facade LED screen / IP67 high protection level, waterproof and anti-salt, can be installed seaside / High brightness and low power consumption, energy-saving design optional.
FEATURES
- HIGH INGRESS PROTECTION
IP67, waterproof and dustproof.
- HIGH TRANSPARENCY
Unparalleled transparency, the transparent rate could be from 35% to 70%.
- HIGN BRIGHTNESS
Pure gold wire LED lamp, The brightness can be over 10000nits.
- GOOD HEAT DISSIPATION
Heat sink design, speed up the heat conduction.
- INDEPENDENT LED STRIP DESIGN
Curtain LED cabinet composed of single LED Strips, plug in and out independently.
-
LIGHT WEIGHT
Only around 14-22kg/sqm, save shipping cost.
- EASY INSTALLATION AND MAINTENANCE
Quick installation and maintenance, reduce labor cost.
TECHNICAL SPECIFICATIONS
| Product Model: | P15.625 | P15.625-25 | P15.625-31.25 |
| Pixel Pitch: | 15.625 mm | 15.625-25 mm | 15.625-31.25 mm |
| LED Type: | DIP346 | DIP346 | DIP346 |
| Cabinet Dimension: | 500×1000/1500 mm | 500×1000/1500 mm | 500×1000/1500 mm |
| LED Strip Quantity: | 32pcs | 20pcs | 320x160 mm |
| Cabinet Weight: | 11 kg | 28 kg | 28 kg |
| Cabinet Material: | Aluminum | Aluminum | Aluminum |
| Driving Type: | Static | Static | Static |
| Brightness: | >10000 nits | >8000 nits | >8000 nits |
| Max/Avg Power: | 400/130 W/sqm | 385/125 W/sqm | 350/120 W/sqm |
| Maintenance: | Front or Rear service | Front or Rear service | Front or Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:100°；V:60° | H:100°；V:60° | H:100°；V:60° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
DRAWING

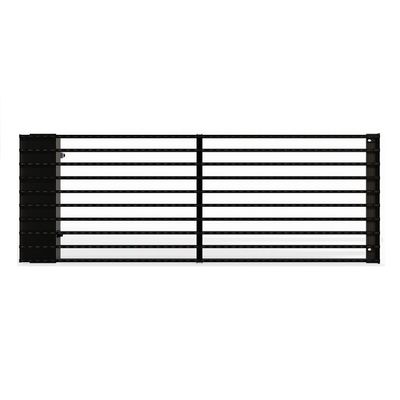

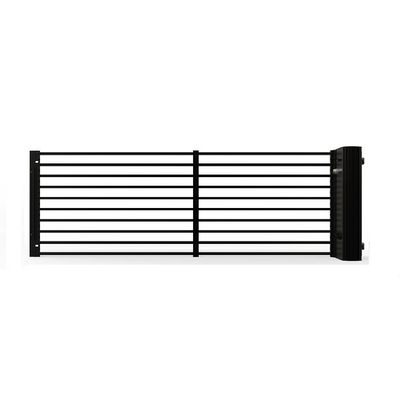

Outdoor P15.625 DIP 500x1000mm Curtain LED Cabinet.
Outdoor P15.625-25 DIP 500x1000mm Curtain LED Cabinet.
Outdoor P15.625-31.25 DIP 500x1000mm Curtain LED Cabinet.
INSTALLATION
Quick installation for curtain LED display on the building facade.
PICTURES
Quick dismount LED strip.
APPLICATION
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a professional OEM & ODM manufacturer with more than 10 years of professional experience in the LED display industry.
Q2: How is your factory doing in terms of quality control?
A2: Quality first. We attach great importance to quality control from beginning to end. We focus on every detail. Our factory has obtained lS09001, 1S014001, CE, RoHS, FCC certification.
Q3: What is your minimum order quantity?
A3: Your order can accept any quantity. And the price for large quantities can benegotiated.
Q4: What technical support can you provide?
A4: We provide various technical training free of charge, including the operation and maintenance training of LED display in the factory. We can send a team of engineers to the customer's country to guide the installation.
Q5.Can we make any size we want? And What's the best size of led screen?
A5:Yes, we can design any size according to your size requirement. Normally, advertising ,stage led screen.The best aspect ratio of LED display are W16:H9 or W4:H3.
Q6.What's the function of video processor?
A6:lt can tranfter the video source to make the screen performance more clear, and normally, if led screen connected to computer (DVI Signal) directly, no need video processor, if want to play other kind video source, such as HDMl, SDIVGA signal port, that will need.Or the HD led screen, its resolution is high, need more than 2pcs sending cards also need video processor.
-
