P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits

P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits
Brand Name
VW
Product Model
P15.625,P15.625-31.25
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
China
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
1000sqm per month
Product Details
Highlight:

P15.625 outdoor LED curtain display

,

aluminum cabinet LED curtain display

,

10000nits transparent LED display
Product Name: P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits
Pixel Pitch: 15.625, 15.625-31.25
LEDs Type: DIP346
IP Level: IP67
Brightness: 10000nits
Transparent Rate: 35%-70%
Power Consumption: Max400W/sqm, Avg130W/sqm
Maintenance: Both Front And Rear Service
Product Description
Detailed Specifications And Features

P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits


DESCRIPTION


Outdoor curtain transparent LED Display / Building facade LED screen / IP67 high protection level, waterproof and anti-salt, can be installed seaside / High brightness and low power consumption, energy-saving design optional.


FEATURES

  • HIGH INGRESS PROTECTION

IP67, waterproof and dustproof.

  • HIGH TRANSPARENCY

Unparalleled transparency, the transparent rate could be from 35% to 70%.

  • HIGN BRIGHTNESS

​Pure gold wire LED lamp, The brightness can be over 10000nits.

  • GOOD HEAT DISSIPATION

Heat sink design, speed up the heat conduction.

  • INDEPENDENT LED STRIP DESIGN

Curtain LED cabinet composed of single LED Strips, plug in and out independently.

  • LIGHT WEIGHT

Only around 14-22kg/sqm, save shipping cost.

  • EASY INSTALLATION AND MAINTENANCE

Quick installation and maintenance, reduce labor cost.


TECHNICAL SPECIFICATIONS

Product Model: P15.625 P15.625-25 P15.625-31.25
Pixel Pitch: 15.625 mm 15.625-25 mm 15.625-31.25 mm
LED Type: DIP346 DIP346 DIP346
Cabinet Dimension: 500×1000/1500 mm 500×1000/1500 mm 500×1000/1500 mm
LED Strip Quantity: 32pcs 20pcs 320x160 mm
Cabinet Weight: 11 kg 28 kg 28 kg
Cabinet Material: Aluminum Aluminum Aluminum
Driving Type: Static Static Static
Brightness: >10000 nits >8000 nits >8000 nits
Max/Avg Power: 400/130 W/sqm 385/125 W/sqm 350/120 W/sqm
Maintenance: Front or Rear service Front or Rear service Front or Rear service
Environment: Outdoor Use Outdoor Use Outdoor Use
IP Rating: F: IP67, R: IP67 F: IP67, R: IP67 F: IP67, R: IP67
Refresh Rate: >3840 Hz >3840 Hz >3840 Hz
Installation Type: Mounting/Hanging Mounting/Hanging Mounting/Hanging
Gray Scale: 14 bit 14 bit 14 bit
Viewing Angle: H:100°；V:60° H:100°；V:60° H:100°；V:60°
Operational Temp: -40℃~+60℃ -40℃~+60℃ -40℃~+60℃
Operational Humidity: 10%~90% RH 10%~90% RH 10%~90% RH


DRAWING

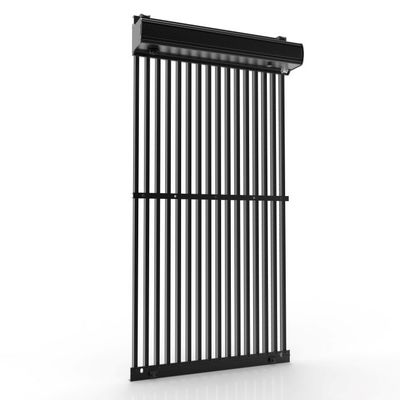

Outdoor P15.625 DIP 500x1000mm Curtain LED Cabinet.


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 0

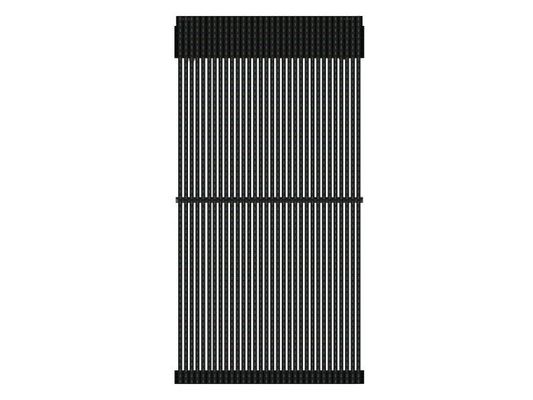

Outdoor P15.625-25 DIP 500x1000mm Curtain LED Cabinet.


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 1

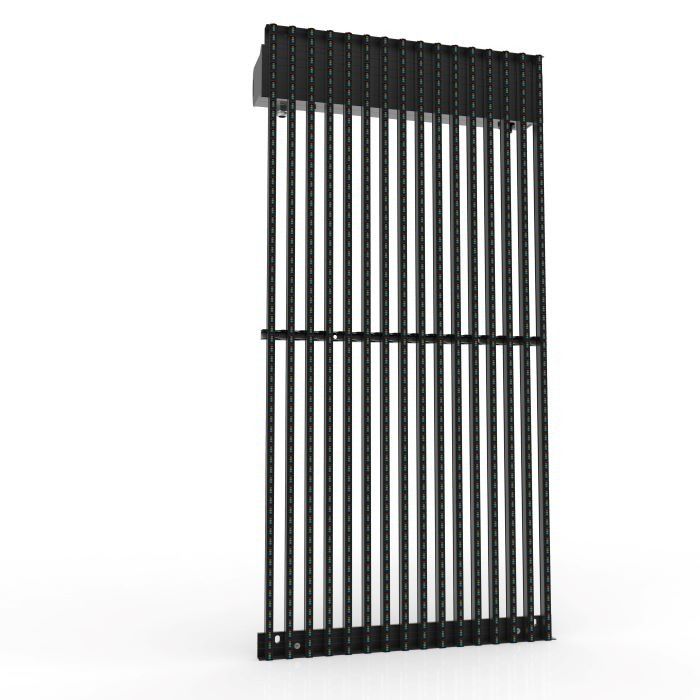

Outdoor P15.625-31.25 DIP 500x1000mm Curtain LED Cabinet.


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 2


INSTALLATION


Quick installation for curtain LED display on the building facade.


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 3


PICTURES


Quick dismount LED strip.


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 4


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 5


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 6


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 7


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 8


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 9


APPLICATION


P15.625 Outdoor LED Curtain Display 70% Transparency Aluminum Cabinet 10000nits 10


FAQ

Q1: What is the control system? How is it?
A1: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.

Q2: Can I have a sample order for led screen?
A2: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.

Q3:Is it OK to print my logo on product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: What is your best service?
A4: 1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.

Q5. How about your delivery time?
A5: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q6:How about your Warranty Term?
A6: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
