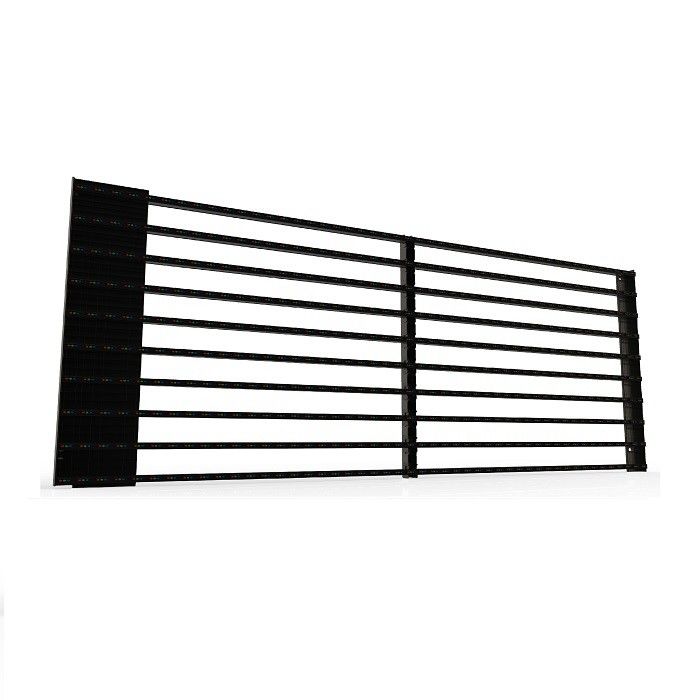

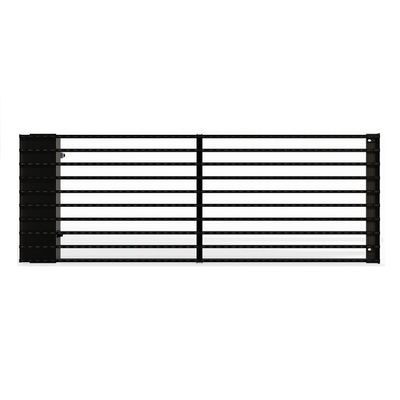

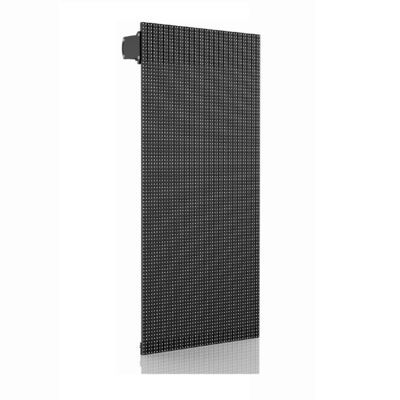

P15.625 Outdoor LED Curtain Display Waterproof IP67 8000 nits 70% Transparency
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P15.625,P15.625-31.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Pixel Pitch: | 15.625, 15.625-31.25 | LEDs Type: | DIP346 |
|---|---|---|---|
| IP Level: | IP67 | Brightness: | 10000nits |
| Transparent Rate: | 35%-70% | Power Consumption: | Max400W/sqm, Avg130W/sqm |
| Refresh Rate: | 3840Hz | Maintenance: | Both Front And Rear Service |
| Highlight: | Outdoor LED curtain display waterproof,Transparent LED curtain display IP67,High brightness LED curtain display 8000nits |
||
Product Description
P15.625 Outdoor LED Curtain Display Waterproof IP67 8000 nits 70% Transparency
DESCRIPTION
Outdoor curtain transparent LED Display / Building facade LED screen / IP67 high protection level, waterproof and anti-salt, can be installed seaside / High brightness and low power consumption, energy-saving design optional.
FEATURES
- HIGH INGRESS PROTECTION - IP67, waterproof and dustproof.
- HIGH TRANSPARENCY - Unparalleled transparency, the transparent rate could be from 35% to 70%.
- HIGN BRIGHTNESS - Pure gold wire LED lamp, The brightness can be over 10000nits.
- GOOD HEAT DISSIPATION - Heat sink design, speed up the heat conduction.
- INDEPENDENT LED STRIP DESIGN - Curtain LED cabinet composed of single LED Strips, plug in and out independently.
- LIGHT WEIGHT - Only around 14-22kg/sqm, save shipping cost.
- EASY INSTALLATION AND MAINTENANCE - Quick installation and maintenance, reduce labor cost.
TECHNICAL SPECIFICATIONS
| Product Model: | P15.625 | P15.625-25 | P15.625-31.25 |
|---|---|---|---|
| Pixel Pitch: | 15.625 mm | 15.625-25 mm | 15.625-31.25 mm |
| LED Type: | DIP346 | DIP346 | DIP346 |
| Cabinet Dimension: | 500×1000/1500 mm | 500×1000/1500 mm | 500×1000/1500 mm |
| LED Strip Quantity: | 32pcs | 20pcs | 320x160 mm |
| Cabinet Weight: | 11 kg | 28 kg | 28 kg |
| Cabinet Material: | Aluminum | Aluminum | Aluminum |
| Driving Type: | Static | Static | Static |
| Brightness: | >10000 nits | >8000 nits | >8000 nits |
| Max/Avg Power: | 400/130 W/sqm | 385/125 W/sqm | 350/120 W/sqm |
| Maintenance: | Front or Rear service | Front or Rear service | Front or Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:100°；V:60° | H:100°；V:60° | H:100°；V:60° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
DRAWING
Outdoor P15.625 DIP 500x1000mm Curtain LED Cabinet.
Outdoor P15.625-25 DIP 500x1000mm Curtain LED Cabinet.
Outdoor P15.625-31.25 DIP 500x1000mm Curtain LED Cabinet.
INSTALLATION
Quick installation for curtain LED display on the building facade.
PICTURES
Quick dismount LED strip.
APPLICATION
FAQ
Q1: LED display models are generally expressed in PX, such as P2 P3 P4.....P8, P10, what does this mean?
A1: P3 P4.....P8,P10 means that the pixel pitch is 3mm 4mm....10mm, which determines resolution of a display. Pixel pitch is smaller, led display resolution is higher.
Q2: What pixel pitch should I choose on my display?
A2: It is determined mainly by the viewing distance, the size of the display screen, the desired effect and the customer budget.
Q3: To order a display, what kind of information do I have to offer you?
A3: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Q4: How to install?
A4: Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging. We can also send our engineers to the site to guide the installation if needed.
Q5: Can I order a sample?
A5: Yes, We welcome customers to order samples to check our product quality of our products and service.
