P15.625 Outdoor LED Curtain Display 70% Transparency IP67 500x1000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P15.625,P15.625-31.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P15.625 Outdoor LED Curtain Display 70% Transparency IP67 500x1000mm | Pixel Pitch: | 15.625, 15.625-31.25 |
|---|---|---|---|
| LEDs Type: | DIP346 | IP Level: | IP67 |
| Brightness: | 10000nits | Transparent Rate: | 35%-70% |
| Power Consumption: | Max400W/sqm, Avg130W/sqm | Maintenance: | Both Front And Rear Service |
| Highlight: | Outdoor LED curtain display with IP67,Transparent LED curtain display 500x1000mm,P15.625 LED curtain display outdoor |
||
Product Description
P15.625 Outdoor LED Curtain Display 70% Transparency IP67 500x1000mm
DESCRIPTION
Outdoor curtain transparent LED Display / Building facade LED screen / IP67 high protection level, waterproof and anti-salt, can be installed seaside / High brightness and low power consumption, energy-saving design optional.
FEATURES
- HIGH INGRESS PROTECTION
IP67, waterproof and dustproof.
- HIGH TRANSPARENCY
Unparalleled transparency, the transparent rate could be from 35% to 70%.
- HIGN BRIGHTNESS
Pure gold wire LED lamp, The brightness can be over 10000nits.
- GOOD HEAT DISSIPATION
Heat sink design, speed up the heat conduction.
- INDEPENDENT LED STRIP DESIGN
Curtain LED cabinet composed of single LED Strips, plug in and out independently.
-
LIGHT WEIGHT
Only around 14-22kg/sqm, save shipping cost.
- EASY INSTALLATION AND MAINTENANCE
Quick installation and maintenance, reduce labor cost.
TECHNICAL SPECIFICATIONS
| Product Model: | P15.625 | P15.625-25 | P15.625-31.25 |
| Pixel Pitch: | 15.625 mm | 15.625-25 mm | 15.625-31.25 mm |
| LED Type: | DIP346 | DIP346 | DIP346 |
| Cabinet Dimension: | 500×1000/1500 mm | 500×1000/1500 mm | 500×1000/1500 mm |
| LED Strip Quantity: | 32pcs | 20pcs | 320x160 mm |
| Cabinet Weight: | 11 kg | 28 kg | 28 kg |
| Cabinet Material: | Aluminum | Aluminum | Aluminum |
| Driving Type: | Static | Static | Static |
| Brightness: | >10000 nits | >8000 nits | >8000 nits |
| Max/Avg Power: | 400/130 W/sqm | 385/125 W/sqm | 350/120 W/sqm |
| Maintenance: | Front or Rear service | Front or Rear service | Front or Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:100°；V:60° | H:100°；V:60° | H:100°；V:60° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
DRAWING

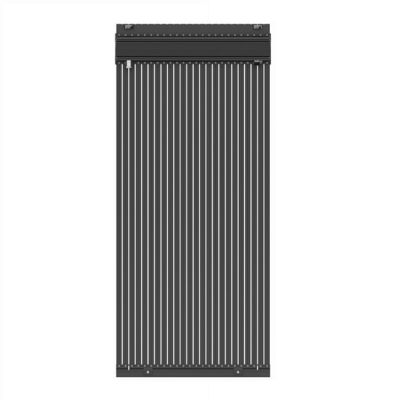

Outdoor P15.625 DIP 500x1000mm Curtain LED Cabinet.
Outdoor P15.625-25 DIP 500x1000mm Curtain LED Cabinet.
Outdoor P15.625-31.25 DIP 500x1000mm Curtain LED Cabinet.
INSTALLATION
Quick installation for curtain LED display on the building facade.
PICTURES

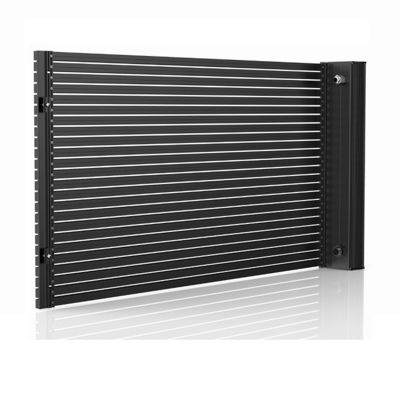

Quick dismount LED strip.
APPLICATION
