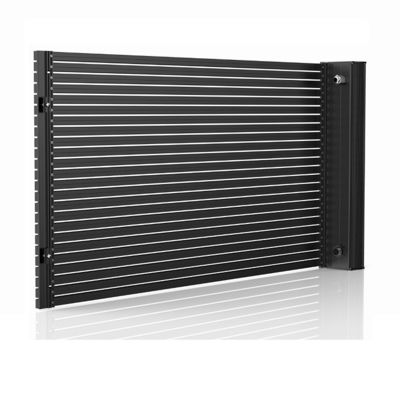

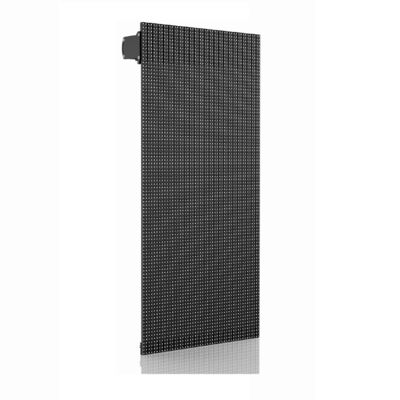

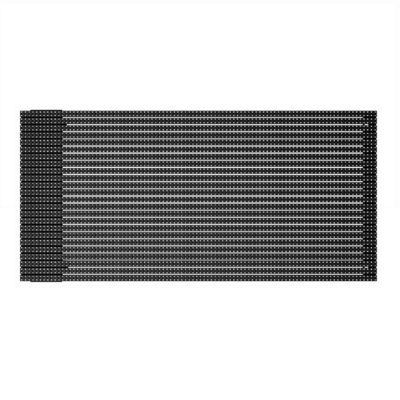

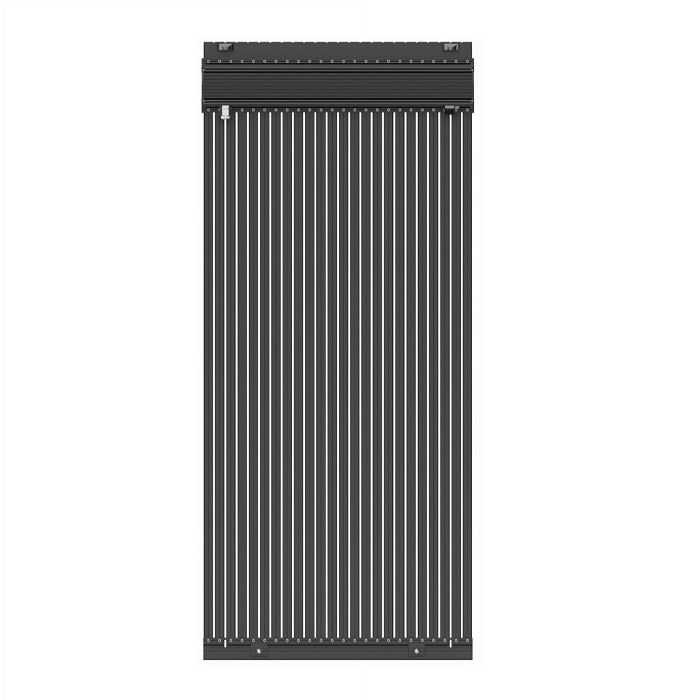

P15.625 Outdoor LED Curtain Display 500x1000mm 70% Transparency 10000nits IP67
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P15.625,P15.625-31.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Product Name: | P15.625 Outdoor LED Curtain Display 500x1000mm 70% Transparency 10000nits IP67 | Pixel Pitch: | 15.625, 15.625-31.25 |
|---|---|---|---|
| LEDs Type: | DIP346 | IP Level: | IP67 |
| Brightness: | 10000nits | Transparent Rate: | 35%-70% |
| Power Consumption: | Max400W/sqm, Avg130W/sqm | Maintenance: | Both Front And Rear Service |
| Highlight: | Outdoor LED curtain display 500x1000mm,High brightness LED curtain display 10000nits,IP67 waterproof LED curtain display |
||
Product Description
P15.625 Outdoor LED Curtain Display 500x1000mm 70% Transparency 10000nits IP67
DESCRIPTION
Outdoor curtain transparent LED Display / Building facade LED screen / IP67 high protection level, waterproof and anti-salt, can be installed seaside / High brightness and low power consumption, energy-saving design optional.
FEATURES
- HIGH INGRESS PROTECTION
IP67, waterproof and dustproof.
- HIGH TRANSPARENCY
Unparalleled transparency, the transparent rate could be from 35% to 70%.
- HIGN BRIGHTNESS
Pure gold wire LED lamp, The brightness can be over 10000nits.
- GOOD HEAT DISSIPATION
Heat sink design, speed up the heat conduction.
- INDEPENDENT LED STRIP DESIGN
Curtain LED cabinet composed of single LED Strips, plug in and out independently.
-
LIGHT WEIGHT
Only around 14-22kg/sqm, save shipping cost.
- EASY INSTALLATION AND MAINTENANCE
Quick installation and maintenance, reduce labor cost.
TECHNICAL SPECIFICATIONS
| Product Model: | P15.625 | P15.625-25 | P15.625-31.25 |
| Pixel Pitch: | 15.625 mm | 15.625-25 mm | 15.625-31.25 mm |
| LED Type: | DIP346 | DIP346 | DIP346 |
| Cabinet Dimension: | 500×1000/1500 mm | 500×1000/1500 mm | 500×1000/1500 mm |
| LED Strip Quantity: | 32pcs | 20pcs | 320x160 mm |
| Cabinet Weight: | 11 kg | 28 kg | 28 kg |
| Cabinet Material: | Aluminum | Aluminum | Aluminum |
| Driving Type: | Static | Static | Static |
| Brightness: | >10000 nits | >8000 nits | >8000 nits |
| Max/Avg Power: | 400/130 W/sqm | 385/125 W/sqm | 350/120 W/sqm |
| Maintenance: | Front or Rear service | Front or Rear service | Front or Rear service |
| Environment: | Outdoor Use | Outdoor Use | Outdoor Use |
| IP Rating: | F: IP67, R: IP67 | F: IP67, R: IP67 | F: IP67, R: IP67 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:100°；V:60° | H:100°；V:60° | H:100°；V:60° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH |
DRAWING
Outdoor P15.625 DIP 500x1000mm Curtain LED Cabinet.
Outdoor P15.625-25 DIP 500x1000mm Curtain LED Cabinet.
Outdoor P15.625-31.25 DIP 500x1000mm Curtain LED Cabinet.
INSTALLATION
Quick installation for curtain LED display on the building facade.
PICTURES
Quick dismount LED strip.
APPLICATION
FAQ
Q1: How much is the freight?
A1: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q2: What is Price per square meter of screen?
A2: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: May I know the Minimum order for your products?
A4: We have no limit for different size of the screen, but usually one screen’s dots are more than 50000 dots will be clear for the viewer to see the video on the screen.
Q5: How does your factory do regarding quality control?
A5: The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
