P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67

P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67
Brand Name
VW
Product Model
P15.625,P15.625-31.25
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
China
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
1000sqm per month
Product Details
Highlight:

outdoor LED curtain display waterproof

,

transparent LED curtain display 8000 nits

,

IP67 waterproof LED curtain display
Product Name: P15.625 Outdoor LED Curtain Display 8000 Nits 70% Transparency Waterproof IP67
Pixel Pitch: 15.625, 15.625-31.25
LEDs Type: DIP346
IP Level: IP67
Brightness: 10000nits
Transparent Rate: 35%-70%
Power Consumption: Max400W/sqm, Avg130W/sqm
Maintenance: Both Front And Rear Service
Product Description
Detailed Specifications And Features

P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67


DESCRIPTION


Outdoor curtain transparent LED Display / Building facade LED screen / IP67 high protection level, waterproof and anti-salt, can be installed seaside / High brightness and low power consumption, energy-saving design optional.


FEATURES

  • HIGH INGRESS PROTECTION

IP67, waterproof and dustproof.

  • HIGH TRANSPARENCY

Unparalleled transparency, the transparent rate could be from 35% to 70%.

  • HIGN BRIGHTNESS

​Pure gold wire LED lamp, The brightness can be over 10000nits.

  • GOOD HEAT DISSIPATION

Heat sink design, speed up the heat conduction.

  • INDEPENDENT LED STRIP DESIGN

Curtain LED cabinet composed of single LED Strips, plug in and out independently.

  • LIGHT WEIGHT

Only around 14-22kg/sqm, save shipping cost.

  • EASY INSTALLATION AND MAINTENANCE

Quick installation and maintenance, reduce labor cost.


TECHNICAL SPECIFICATIONS

Product Model:P15.625P15.625-25P15.625-31.25
Pixel Pitch:15.625 mm15.625-25 mm15.625-31.25 mm
LED Type:DIP346DIP346DIP346
Cabinet Dimension:500×1000/1500 mm500×1000/1500 mm500×1000/1500 mm
LED Strip Quantity:32pcs20pcs320x160 mm
Cabinet Weight:11 kg28 kg28 kg
Cabinet Material:AluminumAluminumAluminum
Driving Type:StaticStaticStatic
Brightness:>10000 nits>8000 nits>8000 nits
Max/Avg Power:400/130 W/sqm385/125 W/sqm350/120 W/sqm
Maintenance:Front or Rear serviceFront or Rear serviceFront or Rear service
Environment:Outdoor UseOutdoor UseOutdoor Use
IP Rating:F: IP67, R: IP67F: IP67, R: IP67F: IP67, R: IP67
Refresh Rate:>3840 Hz>3840 Hz>3840 Hz
Installation Type:Mounting/HangingMounting/HangingMounting/Hanging
Gray Scale:14 bit14 bit14 bit
Viewing Angle:H:100°；V:60°H:100°；V:60°H:100°；V:60°
Operational Temp:-40℃~+60℃-40℃~+60℃-40℃~+60℃
Operational Humidity:10%~90% RH10%~90% RH10%~90% RH


DRAWING

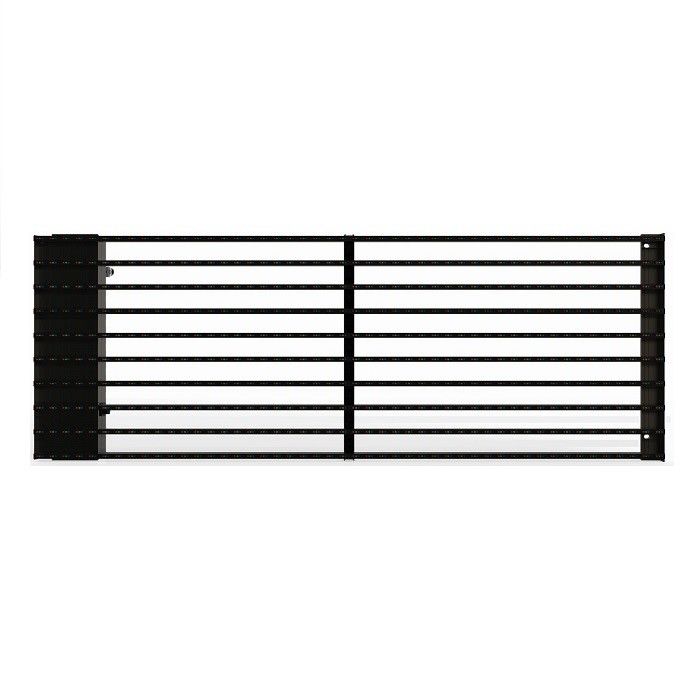

Outdoor P15.625 DIP 500x1000mm Curtain LED Cabinet.


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 0

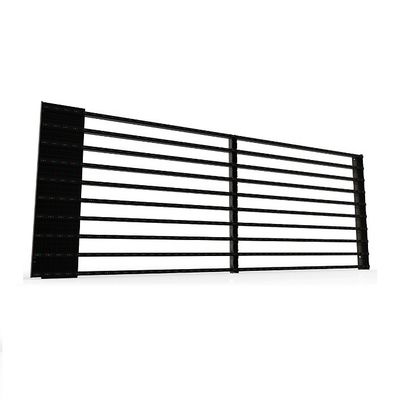

Outdoor P15.625-25 DIP 500x1000mm Curtain LED Cabinet.


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 1

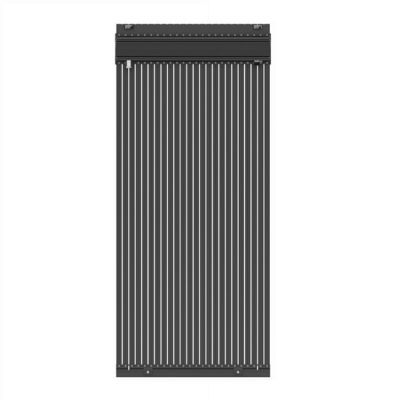

Outdoor P15.625-31.25 DIP 500x1000mm Curtain LED Cabinet.


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 2


INSTALLATION

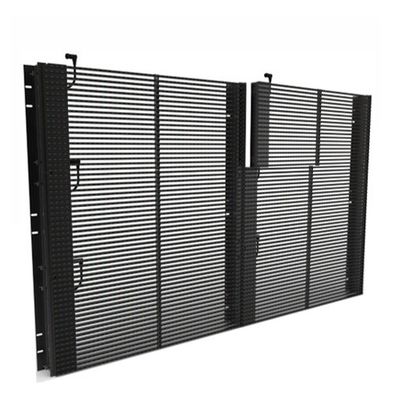

Quick installation for curtain LED display on the building facade.


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 3


PICTURES

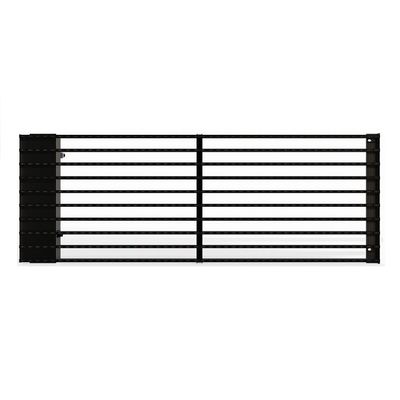

Quick dismount LED strip.


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 4


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 5


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 6


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 7


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 8


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 9


APPLICATION


P15.625 Outdoor LED Curtain Display 8000 nits 70% Transparency Waterproof IP67 10


FAQ

Q1: Are you a manufacturer or trading company?

- We are a professional OEM/ODM manufacturer ,which has specialized in the LED display industry for more than 10 years.
Q2: How to install?
- Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram,free remote debugging.
- Technical support: Provide technical consultation and guidance to help users solve problems encountered during use;
- Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.
Q3: What about your quality?
- The lamp beads used in our LED display are all genuine lamp beads. We are do not need to be used scattered lights and tail lights.
- Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q4: What about the warranty?
- Calculated from the goods to the customer, the warranty period is 3 years, don’t worry, there is a problem with the module, you can send it back to us for repair.


Q5:What's your after-sale service?

-lf any problems, you will get our reply within 24 hours. Solution will be offered instantly.


Q6:Can the product system be customized with models?

-Yes, support customization.
