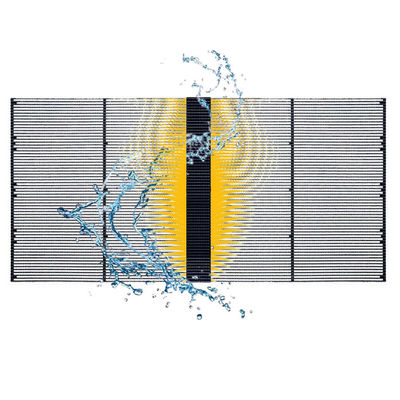

P5.2-10.4 Outdoor Transparent LED Display SMD1921 5000nits 1000×500mm
P5.2 Outdoor Transparent LED Display
,1000×500mm Outdoor Transparent LED Display
,5000nits Outdoor Transparent LED Display
P5.2-10.4 Outdoor Transparent LED Display SMD1921 5000nits 1000×500mm
Product Description:
P5.2-10.4 Transparent LED screens provide a highly effective and captivating alternative to traditional large-format LED displays. These screens produce cohesive images by coordinating LEDs to light up in precise pixel colors. When integrated into glass curtain walls, they create an imposing effect, allowing designers to implement display solutions for retail spaces—particularly those with glass facades—without interrupting the architectural design.
Features:
- High contrast and brightness
Extra flexibility, weighs under 8.5 Kg/m2 and thinner than 25mm. Very convenient to use and move, saving a lot of transportation and assembling costs
- Stability long life time
Low power comsumption and energy saving, Low consumption of electricity to increase the lifetime of LED
- High Transparency
75% transparency rate, see through, suitable for glass wall mounting；>5000 nits brightness, for all outdoor environment
Technical Parameters:
| Technical Parameters | Transparent LED Display |
| Pixel Pitch: |
5.2-10.4 mm
|
| LED Type: | SMD1921 |
| Cabinet Dimension: | 1000×500mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 15 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/6 |
| Brightness: | 5000 nits |
| Max/Avg Power: | 800/280 W/m² |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Transparent Rate: | 75% |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
| Installation Type: | Mounting/Hanging |
Applications:
Widely utilized in shopping malls, entertainment venues, architectural projects, government institutions, trade shows, and for purposes such as exhibitions, press conferences, airports, hotels, station waiting areas, indoor arenas, and various other public facilities.
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping port: Shenzhen, China
Shipping way:Air;Express;Ocean;Land Transportation
Delivery time: 10-15 working days after confirm receipt payment in advance.
FAQ:
Q1.How to choose a best pixel pitch?
Q2. How to install and debug?
A2: We will make drawings and build the fixed structure and installation according to the drawings. Engineers will video remotely debugging assistance and training you how to use!
Q3.What's the warranty?
A3: 2 years warranty! We will prepare enough spare parts for you, if there are broken parts, can be replaced in time without affecting the use of!
Q4.What's the minimum quatity?
A4: Sample is available! Quantity is negotiable!
Q5.How to make order?
A5: Provide your E-mail address, detail address and phone number, we will make payment link for you!
-
