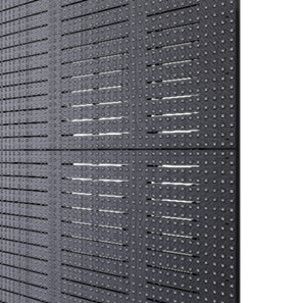

P3.91 Carbon Fiber LED Display 4500nits Super Light Weight IP65 for Outdoor Use
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | CFL3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case, Carton Box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | P3.91 Carbon Fiber LED Display 4500nits Super Light Weight IP65 For Outdoor Use | Pixel Pitch(mm): | 3.91 |
|---|---|---|---|
| Module Size: | 500×250mm | Screen Size: | 500×1000mm |
| Brightness: | 4500nits | Weight: | 14kg/sqm |
| IP Rate: | IP65 | Usage Scenarios: | Outdoor |
| Highlight: | P7.8 carbon fiber LED display,6000nits outdoor LED screen,IP65 waterproof rental display |
||
Product Description
P3.91 Carbon Fiber LED Display 4500nits Super Light Weight IP65 for Outdoor Use
Product Description
The P3.91 Carbon Fiber LED Display redefines portability with its ultra-lightweight construction, significantly reducing transportation challenges. Its modular design enables rapid disassembly and reassembly, dramatically improving installation efficiency. The transparent windproof screen, enhanced by a 45° beveled edge design, delivers optimized visual performance while merging aesthetic appeal with functional durability--making it ideal for outdoor advertising, exhibitions, and diverse application scenarios.
Product Features
- Transparent & Windproof: The hollow design cleverly utilizes aerodynamics, enabling effective air convection in outdoor environments, reducing wind impact.
- Quick Disassembly & Assembly: Features patented Quick Release Lock technology for fast, efficient setup and breakdown in any situation.
- 45° Bevel Design: Allows minimum splicing angle of 90° for flexible spatial integration and can be configured into creative cube displays.
- Modular Design: Consists of three core components: independent power box, high-strength carbon fiber frame, and integrated LED module for simplicity and durability.
Technical Parameters
| Product model | CFI3 | CFLI3 | CFL3 |
| Pixel pitch(mm) | 3.91 | 3.91 | 3.91 |
| Module size(mm) | 500x250 | ||
| Module resolution(dot) | 128 x 64 | ||
| Module assembly | 1x2 | 1x4 | |
| Panel size(mm) | 500x500 | 500x1000 | |
| Panel resolution(dot) | 128 x 128 | 128x256 | |
| LED type | SMD2020 | SMD1415 | |
| Brightness(cd/m2) | ≥800 | 4500 | |
| Contrast ratio | 5000:1 | ||
| Support input | Composite,S-Vido,Component,VGA,DVI,HDMI,HD_SDI | ||
| Horizontal viewing angle | 160° | ||
| Vertical viewing angle | 160° | ||
| Gray level(bit) | 16 | ||
| Refresh rate | ≥7680Hz | ||
| Max. AC power consumption | ≤660W/m² | ≤700W/m² | |
| Avg. AC power consumption | ≤195W/m² | ≤250W/m² | |
| Input voltage | 100-240 VAC,50~60 Hz | ||
| Operate temperature | -30°C~+50°C | ||
| Storage temperature | -40~+80°C | ||
| Operating humidity | 10~90% RH | ||
| Protection grade | IP32 | IP65 | |
| Working environment | indoor | Outdoor | |
| Cabinet material | Carbon fiber | ||
| LED lifetime(hours) | 100000 | ||
| Weight(kg/m²) | 16 | 13 | 14 |
Product Applications
Event Rental • Stage Rental • Game Play Rental
Frequently Asked Questions
What is your minimum order quantity (MOQ)?
We accept any order quantity. For larger orders, pricing is negotiable.
What is your delivery time?
LED display modules typically ship within 3 to 15 days, while full LED displays are delivered within 10 to 25 days after receiving the deposit. The exact delivery timeline depends on the type and size of your order.
Do your products come with free spare parts?
Yes, for LED modules, we provide spare lamps and ICs. For full LED displays, we include spare lamps, ICs, modules, power supplies, and more.
Do your products come with a warranty?
Yes, we offer a two-year warranty on all products.
Can your products be customized?
Absolutely! We offer customization options tailored to your specific requirements, including size, shape, and features. Additionally, we can customize the LED display with your logo.
