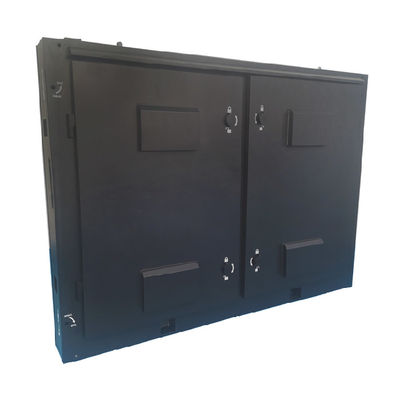

P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Chip Color: | RGB Full Color | Usage: | Outdoor Fixed Led Video Wall |
|---|---|---|---|
| Pixel Density: | 65536 Dots/sqm | Function: | Popup Pictures, Zoom In/out, Text In Pictures |
| Application: | Hotel Advertising Billboard, Outdoor Led Signs | Module Connection: | Locks |
| Warranty: | 2 Years | Lifespan: | 100000 Hours |
| High Light: | 960x960mm Fixed LED Display Screen,P4 Outdoor Fixed LED Display Screen,Outdoor Fixed LED Display For Highway |
||
Product Description
P4 Outdoor Fixed LED Display Screen 960x960mm Cabinet For Highway Billboard
Product Description:
100% full front access fixed LED Display / 1000*1000mm Aluminum profile LED Panel / Wall-mounted outdoor LED screen / Waterproof LED Video wall / Outdoor LED screen without fan
Features:
- High brightness:the brightness can be over 6000nits, even 8000nits.
- Flanless design:Good heat dissipation without fans
- Front access:100% full front service, led module and power box all can be took out from front side.
- Aluminum module:Aluminum bottom base of module, more stable and good heat dissipation.
Technical Parameters:
| Product Model: | P2.5 | P3 | P3.076 | P3.33 | P3.33 | P4 | P4 |
| Pixel Pitch: | 2.5mm | 3mm | 3.076mm | 3.33mm | 3.33mm | 4mm | 4mm |
| LED Type: | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 1024x1024mm | 960x960mm |
| Module Size: | 160×160mm | 192×192mm | 192×192mm | 160×160mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/16 | 1/16 | 1/13 | 1/12 | 1/12 | 1/8 | 1/10 |
| Brightness: | 5500 nits | 5500 nits | 5000 nits | 5500 nits | 5500 nits | 6500 nits | 5500 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
| Product Model: | P10 | P16 |
| Pixel Pitch: | 10mm | 16mm |
| LED Type: | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 1024x1024mm |
| Module Size: | 320×160mm | 256×256mm |
| Maintenance | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel |
| Driving Type: | 1/2 | Static |
| Brightness: | 6000 nits | 6500 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH |
Application:
- Wharf Mall
- Train station
- Theme Park
- Outdoor activity area
- Building exterior wall
- creative modeling
- Park entrance
FAQ
Q1: How fast can I get reply from your company?
A1: during working days, usually within 30 minutes, you will get reply from our professional sales team
Q2:What pixel pitch can you provide? And what product do you have?
A2 :Indoor Series from P1.25 to P10, outdoor from P2.5 to 100. Matrix Displays offers a wide range of LED displays, manufacturing,sales, and exportation of indoor and outdoor rental led display, LED Sphere, LED cube, LED transparent window glass display, and customized led projects etc.
Q3;What kind of sending/receiving cards are used in this system?
A3: Nova/Colorlight/Linsn; mostly, NOVA STAR used
Q4:What is the operating power of the system?
A4:Global working voltage, from 90V to 264V
Q5:What is the frame update frequency?
A5:50HZ // 60HZ
Q6: Why do you recommend to use OFR die casting aluminum cabinet?
A4: Because OFR die casting aluminum cabinet is light and thin, the screen will looks beautiful, meantime easily for installation. And if you need to use the screen for rental in the future, OFR can do that, too.
Q7: Are you trading company or manufacturer?
A5: VISUAL WORLD is a professional LED display manufacturer, having been enrolled in led display industry with professional
R&D team and skilled QC team for 10 years.
