P3.91 Outdoor Fixed LED Display Zirca Series 500x1000mm 3840Hz For Swimming Pool
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.91 Outdoor Fixed LED Display Zirca Series 500x1000mm 3840Hz For Swimming Pool | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Cabinet Size: | 500*1000*87mm | Module Size: | 500*250*14mm |
| Cabinet Weight: | 19.5kg/Cabinet | Brightness: | 7500CD/m² |
| IP Rating: | IP65 | Maintenance: | Front/Back |
| Highlight: | P3.91 outdoor LED display,fixed LED screen for swimming pool,500x1000mm outdoor LED display |
||
Product Description
P3.91 Outdoor Fixed LED Display Zirca Series 500x1000mm 3840Hz For Swimming Pool

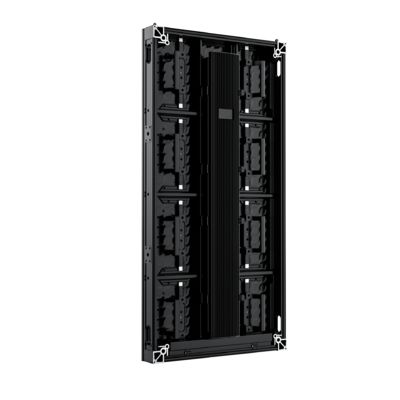

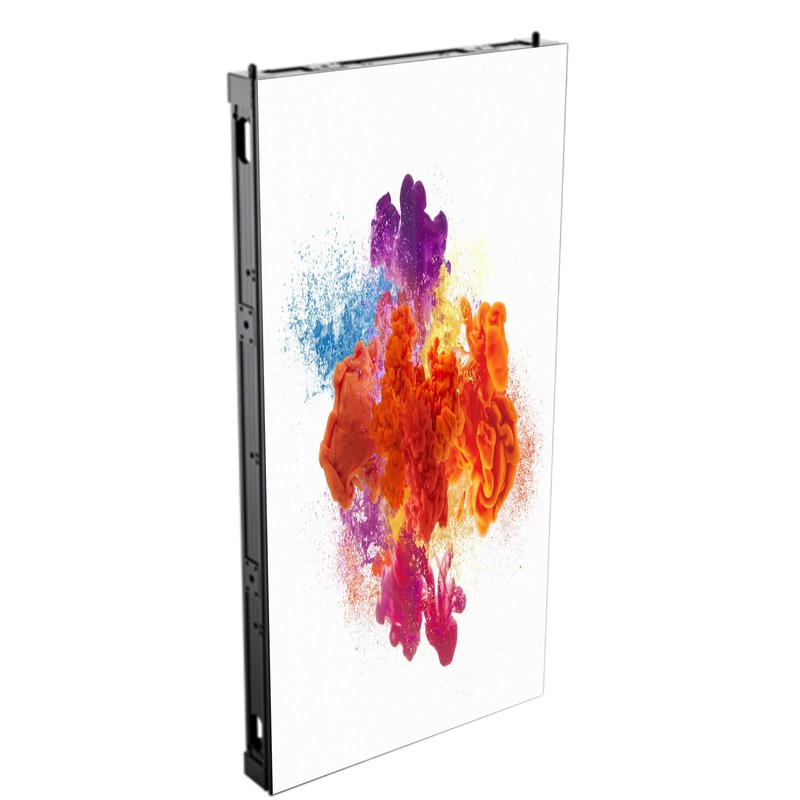

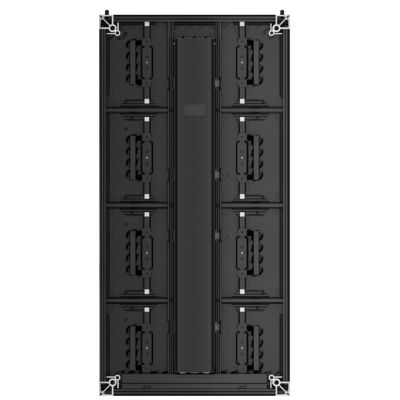

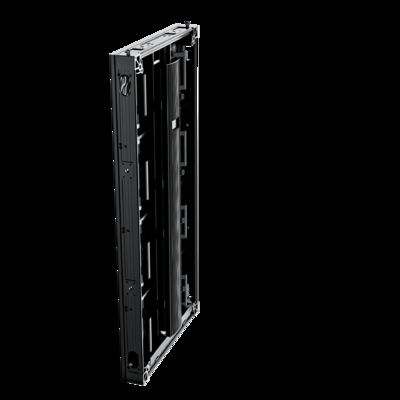

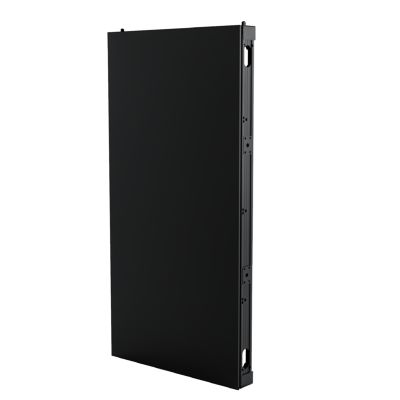

High-precision aluminum profile cabinet is only 87mm thick/19.5kg (500×1000mm),500×1000mm and 500×750mm cabinets are free to mix and match shaped shapes, sharing the same type of control box. Push-button lock realizes 5 seconds fast disassembly and assembly, optional arc lock supports curved surface splicing.
Features
- Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
- Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
- Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.
Technical Parameters
| Item | Specification |
|---|---|
| Pixel Pitch | 3.91mm |
| Resolution rate | 128*64mm |
| Module Size | 500*250*14mm |
| Pixel LED | SMD1921 Black led |
| Module Power | ≤74W |
| Driving IC | ICN2055 |
| Drivingway | 1/8 |
| Material | Aluminum profile |
| Cabinet Weight (kg/Cabinet) | 19.5kg |
| Resolution rate | 128*256Dots |
| Cabinet Size | 500*1000*87mm |
| Module quantity | 1*4 |
| Density | 65536 Dots/㎡ |
| Brightness | 7500CD/m² |
| View Angel | H/V:120°/120° |
| Maximal power/㎡ | ≤650W/㎡ |
| Average Power/㎡ | ≤220W/㎡ |
| Refresh Frequency | 3840Hz |
| Gray Grade | ≥13bit |
| Protection grade | IP65 |
| Maintenance | Front/Back |
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
FAQ
Q1: How much is the freight?
A1: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q2: What is Price per square meter of screen?
A2: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: May I know the Minimum order for your products?
A4: We have no limit for different size of the screen, but usually one screen's dots are more than 50000 dots will be clear for the viewer to see the video on the screen.
Q5: How does your factory do regarding quality control?
A5: The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
