Indoor 800-1000nits P4 Space-saving Design Front Service Flexible LED Display
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | flight case, plywood box |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 1100sqm/month |
|
Detail Information |
|||
| IP Rating: | IP20 | Gray Scale: | 12 Bit |
|---|---|---|---|
| Pixel Pitch: | 4mm | Driving Method: | 1/15 |
| Maintenance: | Front Service | Cabinet Dimension: | 960×720mm |
| Installation Type: | Mounting/Hanging | Viewing Angle: | H:140°；V:140° |
| High Light: | Versatile Bendable LED Display,Bendable LED Display IP20 |
||
Product Description
Indoor 800-1000nits P4 Space-saving Design Front Service Flexible LED Display
Product Description:
Features:
- Space-saving compact design saves space and labor costs;
- Flexible features, easy installation and adaptable to different building structures;
- Highly customizable features with a wide range of customization options for size, shape, and pixel pitch;
- Highly maneuverable - easy to install, dismantle, fold, store and transport.
Technical Parameters:
| Technical Parameters | Flexible LED Display Screen |
| Pixel Pitch: | 4 mm |
| LED Type: | SMD2121 |
| Cabinet Dimension: | 960×720mm |

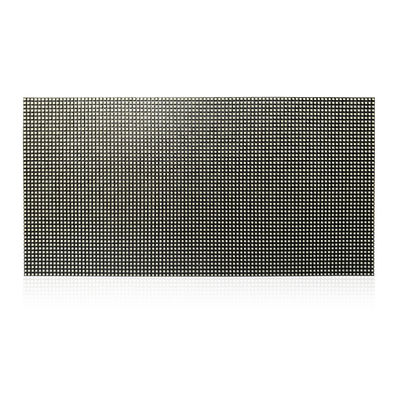

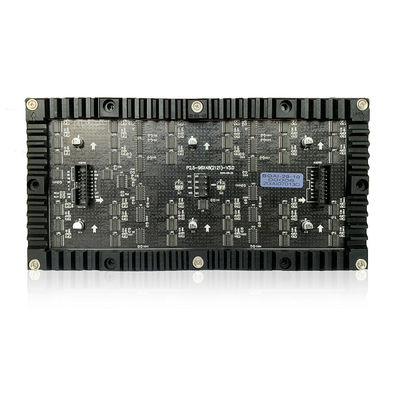

| Module Size: | 240x120 mm |
| Cabinet Weight: | 19kg |
| Cabinet Material: | Simple Steel |
| Driving Type: | 1/15 |
| Brightness: | 800-1000nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Front service |
| IP Rating: | IP20 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 12 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications:
1. Creative Designs
One of the main features of flexible LED display is that it can fit in different applications with the creative designs as the high potentials it owns make it can be suitable to more conditions.
According to this screen’s specialties, it can achieve many creative LED displays such as LED cube display, spherical LED display, ribbon LED display and so on.
Sometimes the display can be customized to certain angles for you if you have such need so as to achieve more adventurous shapes.
2. Giant outdoor advertising LED display
Soft LED displays can support giant LED display installation whether is installed from LED modules or cabinets. Besides, you can customize your preferred size and design.
Further, as soft LED display has outstanding heat dissipation, it can be more durable than other kinds of displaying medias. The long duration of use give customers higher cost-efficiency, and less worry of daily maintenance.
3. 360° emcompassing LED display screen

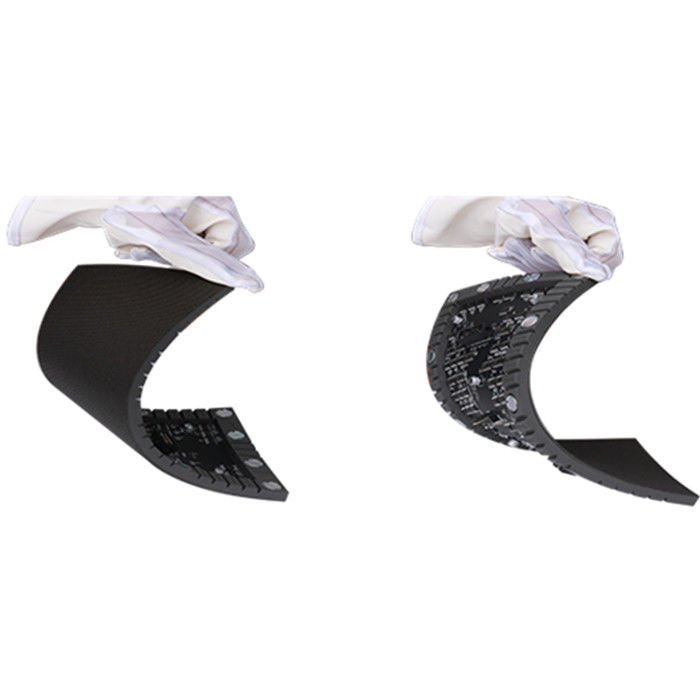

Flexible LED displays are ultra-thin, light and have flexibility. Therefore, it can design highly flexible shapes such as ribbon, and can be bend 180°.
(1).The LED display module with soft cover can achieve the highest color uniformity and grayscale, which can protect LEDs effectively.
(2).The flexibility makes LED display installation easily and quickly.
(3).The high flexibility gives designers more free to create more innovative shapes.
Our Service:
Pre-sale service:
Inquiries will be replied within 24 hours. Market research and forecast for customer. Provide unique and professional solutions based on customer's requirement. Data sheet and samples offered. Other required services such as special packing design, factory visiting and so on.
In-sale service:
Tracking producing procedures all the time. Provide photos and videos as per customer's requirement during production. Free spare parts provided.
After-sale service:
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours. Warranty: 24 months. Free technician training. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
FAQ:
Q1:How to choose a led display?
A1: You should consider 3 simple questions when you choose a led screen by yourself.
1. What's the environment- indoor or outdoor?
2. Is it for rental use ( need to be moved from one place to another place frequently) or for fixed installation (to be installed in a place permanently)?
3. what is the approximate size of the led screen you would like to purchase?
Q2:How to ship?
A2: It is optional and we respect customer's choice. You can choose to ship by air cargo, by DHL(Fedex, UPS etc) international express company, or by sea according to your goods weight and volume and the delivery time you need.
Q3:How to install it after received?
A3: We will offer you the drawing to guide you for installation, even send our engineer toyou for help if needed.
