P3.9 Full Color Window Screen 1000x500mm Aluminum Cabinet For Indoor Atriums
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | TF3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, carton box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | P3.9 Full Color Window Screen 1000x500mm Aluminum Cabinet For Indoor Atriums | Pixel Pitch: | 3.9*7.8 Mm |
|---|---|---|---|
| Module Size: | 500×125mm | Cabinet Size: | 1000×500×84mm |
| LED Type: | SMD2121; SMD1921 | Brightness:: | 800-5500 Nits |
| IP Rating: | F: IP20, R: IP21 | Transparency Rate: | 65% |
| Highlight: | P3.9 indoor transparent LED display,1000x500mm aluminum LED cabinet,full color window screen display |
||
Product Description

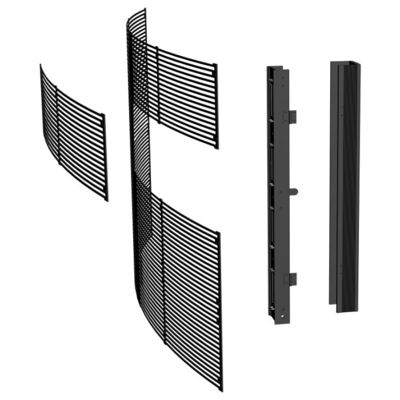

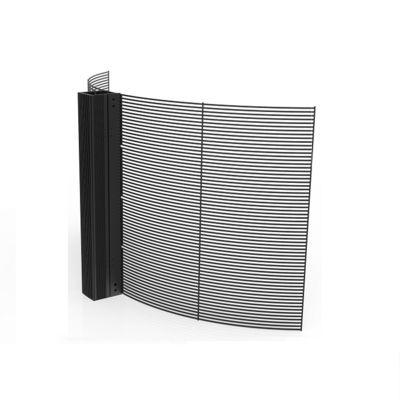

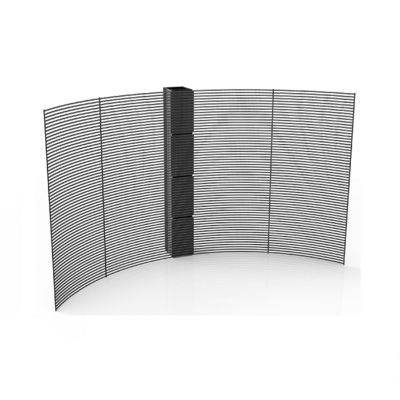

P3.9 Full Color Window Screen 1000x500mm Aluminum Cabinet For Indoor Atriums
Product Overview
The seamless fusion of LED technology and transparent glass achieves a uniquely sophisticated visual harmony, uniting cutting-edge innovation with architectural elegance. This solution effortlessly adapts to curved surfaces, frameless installations, and fully bespoke designs—every element showcasing meticulous craftsmanship and customized professional support to fulfill precise client needs.
Key Features
- Brightness 800-5500nits adjustable
- Quick Installation and Maintenance
- Fast lock mechanism
- Frontal protection
Technical Specifications
| Product Model: | TF3.9 |
|---|---|
| Pixel Pitch: | 3.9*7.8 mm |
| LED Type: | SMD2121; SMD1921 |
| Cabinet Dimension: | 1000x500x84 mm |
| Module Size: | 500x125 mm |
| Cabinet Weight: | 3.5 kg |
| Cabinet Material: | Aluminum |
| Driving Type: | 1/16; 1/8 |
| Brightness: | 800-5500 nits |
| Max/Avg Power: | 400/140; 800/280 W/m² |
| Transparency Rate: | 65% |
| Environment: | Indoor Use |
| IP Rating: | F:IP20, R: IP21 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Hanging |
| Gray scale: | 14 bit |
| Viewing Angle: | H:140°; V:140° |
| Operational Temp: | -20°C~+60℃ |
| Operational Humidity: | 10%~90% RH |
Applications
Supermarket, airport advertising display, self-service store, metro station, museum, convenience store, stadium exhibition, chain brand store, high-end conference room, luxury brand store, hotel, bar, theatre, cinema, T stage, showroom, tourist attractions...
Visual World recommends that our customers purchase enough LED display modules for spare replacement. If the LED display modules come from different purchases, they may come from different batches, which could cause color differences.
Frequently Asked Questions
Q1. Can I have a sample order for LED display?
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen.
Q2. Does there have any warranty?
A2: 1 year or 2 years after service.
Q3. Do you have any MOQ limit for LED display order?
A3: There is no strict MOQ, and we offer competitive pricing for bulk orders.
Q4. How do you ship the goods and how long does it take to arrive?
A4: We mostly accept FOB train term, but we can help you order and arrange shipping agent. It usually takes 20-30 days by sea, plus a few days for customer clearance.
Q5. To order a display, what kind of information do I have to offer you?
A5: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
Q6. Is it OK to print my logo on the products?
A6: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A7: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
Q8: How to deal with the faulty?
- Our products are produced with strict quality control and the defective rate will be less than 0.2%.
- During the guarantee period, we will send new modules with new order for small quantity.
- For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
