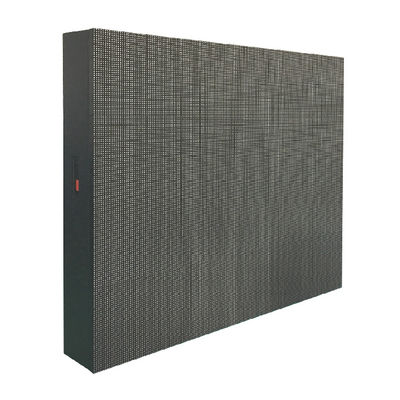

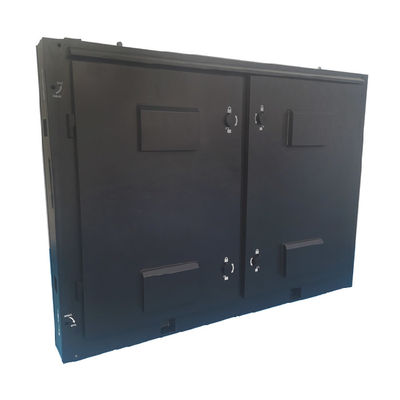

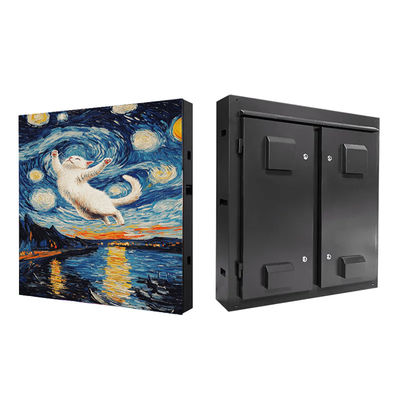

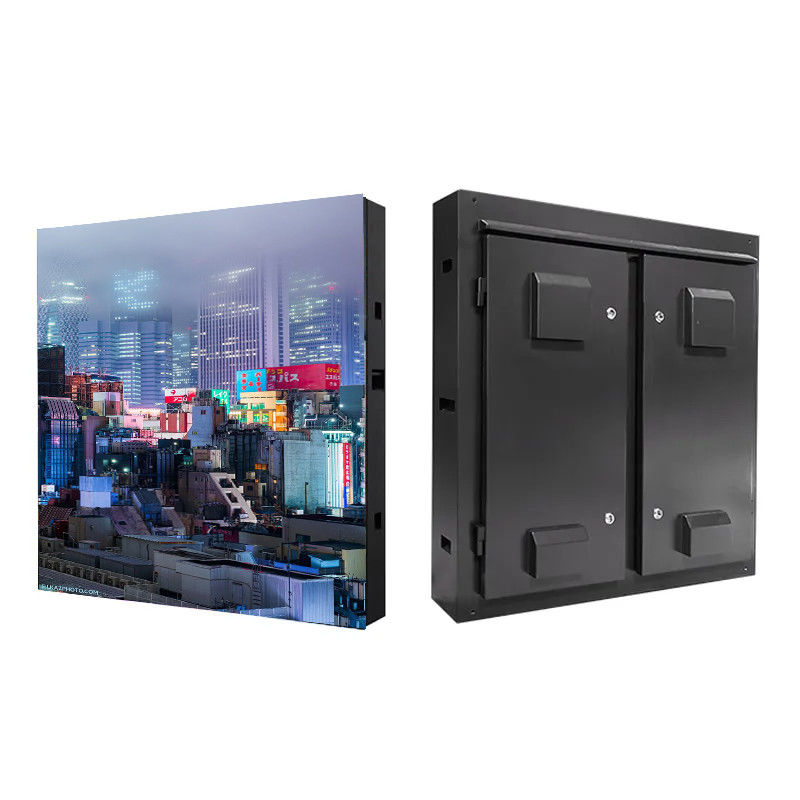

P6.67 Outdoor Fixed LED Screen 960x960mm IP65 5500nits Rear Service Steel Cabinet
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor Fixed LED Screen 960x960mm IP65 5500nits Rear Service Steel Cabinet | LED Type: | SMD3535 |
|---|---|---|---|
| Cabinet Dimension: | 960x960mm | Chip Color: | RGB Full Color |
| Pixel Density: | 28224 Dots/sqm | Maintenance: | Rear Service |
| Cabinet Weight: | 38 Kg | Application: | Outdoor Wall Mounting Advertising Video Wall |
| Module Connection: | Locks | Brightness: | 5500 Nits |
| Highlight: | P6.67 outdoor LED display screen,960x960mm IP65 LED screen,5500nits steel cabinet LED display |
||
Product Description
P6.67 Outdoor Fixed LED Screen 960x960mm IP65 5500nits Rear Service Steel Cabinet
Fixed LED display screens are permanently installed displays available for both indoor and outdoor applications. These displays feature lightweight construction, dust prevention, waterproof capabilities, high temperature resistance, flame retardancy, and automatic power on/off with brightness control. Visual World provides highly stable outdoor fixed installation LED displays with extended service life.
Key Features
- Waterproof: Durable, waterproof aluminum cabinet with IP65 protection level designed for outdoor use with fast heat dissipation
- High Brightness: Customized module PCB and designated power supply deliver up to 6000 nits brightness
- Wide Viewing Angles: Horizontal 140° and vertical 140° viewing angles allow clear visibility from various distances
- Quick Installation: Simple internal cable connections and positioning pins enable fast and easy installation
Technical Specifications
| Product Model | P6.67 |
| Pixel Pitch | 6.67mm |
| LED Type | SMD3535 |
| Cabinet Dimension | 960x960mm |
| Module Size | 320×160mm |
| Maintenance | Rear service |
| Cabinet Weight | 38 kg |
| Cabinet Material | Steel |
| Driving Type | 1/6 |
| Brightness | 5500 nits |
| Max/Avg Power | 800/280 W/m² |
| Environment | Outdoor |
| IP Rating | IP65 |
| Refresh Rate | >1920 Hz |
| Installation Type | Mounting / Hanging |
| Gray Scale | 14 bit |
| Viewing Angle | H:140°; V:120° |
| Operational Temperature | Outdoor |
| Operational Humidity | 10%~90% RH |
Applications
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: How much is the freight?
A1: Shipping costs are determined by screen size and project specifications. Please provide your inquiry details for accurate freight calculation.
Q2: What is Price per square meter of screen?
A2: We welcome your inquiry. Our professional sales engineers will provide suitable solutions and pricing based on your specific requirements.
Q3: Can I customize it?
A3: Yes, all products can be customized. We have a professional product development team ready to accommodate your specific customization needs.
Q4: May I know the Minimum order for your products?
A4: There are no minimum order restrictions for different screen sizes. However, for optimal video viewing clarity, we recommend screens with at least 50,000 pixels.
Q5: How does your factory do regarding quality control?
A5: We use genuine LED lamp beads exclusively, avoiding scattered lights and tail lights. Our manufacturing process includes silver-containing solder paste, pure copper power cords, and short cables. Delivering high-quality screens is our commitment to every customer.
