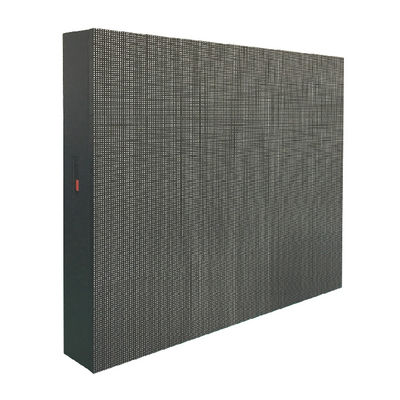

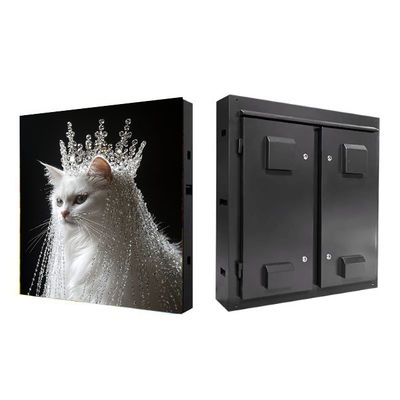

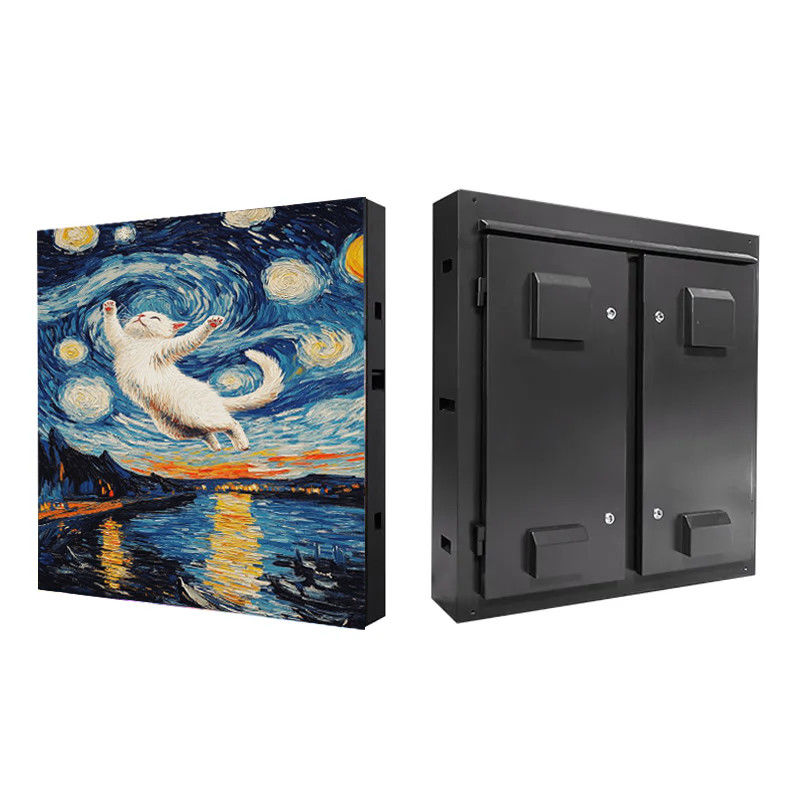

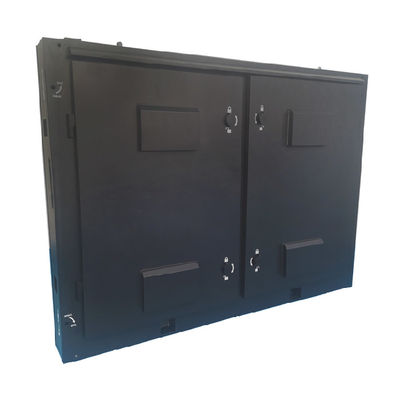

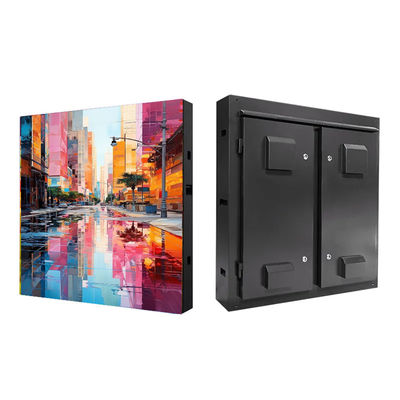

P6.67 Outdoor Fixed LED Screen IP65 5000nits Rear Service For Building Exterior Wall
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P6.67 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P6.67 Outdoor Fixed LED Screen IP65 5000nits Rear Service For Building Exterior Wall | LED Type: | SMD3535 |
|---|---|---|---|
| Cabinet Dimension: | 960x960mm | Chip Color: | RGB Full Color |
| Pixel Density: | 28224 Dots/sqm | Maintenance: | Rear Service |
| Cabinet Weight: | 38 Kg | Application: | Outdoor Wall Mounting Advertising Video Wall |
| Module Connection: | Locks | Brightness: | 5500 Nits |
| Highlight: | P6.67 outdoor LED screen,IP65 waterproof LED display,5000nits high brightness LED panel |
||
Product Description
P6.67 Outdoor Fixed LED Screen IP65 5000nits Rear Service For Building Exterior Wall
Fixed LED display screen refers to the LED display screen installed in a fixed position. It can be separated into indoor and outdoor installation depending on the conditions. With powerful features including light weight, dust prevention, waterproofness, high temperature resistance, flame retardancy, automatic power on/off and brightness control. Visual World offers the most stable and long service life outdoor fixed installation LED displays.
Key Features
- Waterproof: Durable, waterproof, fast heat dissipation aluminum cabinet with IP65 protection level for outdoor use.
- High brightness: Customized module PCB and designated power supply make it up to 6000nits brightness.
- Wide viewing angles: Horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- Quick installation: Simple internal cables connection and positioning pins, quick and easy installation.
Technical Specifications
| Product Model: | P6.67 |
|---|---|
| Pixel Pitch: | 6.67mm |
| LED Type: | SMD3535 |
| Cabinet Dimension: | 960x960mm |
| Module Size: | 320×160mm |
| Maintenance: | Rear service |
| Cabinet Weight: | 38 kg |
| Cabinet Material: | Steel |
| Driving Type: | 1/6 |
| Brightness: | 5500 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Environment: | Outdoor |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting /Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:120° |
| Operational Temp: | Outdoor |
| Operational Humidity: | 10%~90% RH |
Applications
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
Frequently Asked Questions
Q1: What is the control system? How is it?
A1: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It's very easy and convenient to control.
Q2: Can I have a sample order for LED screen?
A2: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q3: Is it OK to print my logo on product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What is your best service?
A4:
- One to one sales engineer to customer responsibility system;
- Know your project and provide the best solution for it;
- Track your order and let you know each step and detail of it;
- Teach you how to install and use the screen;
- Care the subsequent use of your screen and ensure your after-sales service be well.
Q5: How about your delivery time?
A5: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q6: How about your Warranty Term?
A6: 2-year warranty. Structure design, installation problem, system problem, how to use the screen...don't worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
