Hard Connection P5.71 Outdoor Fixed LED Display Screen Aluminum Profile Cabinet

Hard Connection P5.71 Outdoor Fixed LED Display Screen Aluminum Profile Cabinet

Product Details:

Place of Origin: CN
Brand Name: VW
Certification: CE, ROHS, LVD, EMC
Model Number: P5.71

Payment & Shipping Terms:

Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Plywood case
Delivery Time: 8-10 work days
Payment Terms: T/T, Western Union, D/P
Supply Ability: 2000 sqm/month
Get Best Price Contact Now

Detail Information

Chip Color: Full Color Usage: Outdoor
Pixel Density: 30625 Dots/sqm Function: Module Flash, Synchronous/asynchronous Control, Flame Retardancy
Application: Roadside, Building Facade, Street Module Connection: Hard Connection
Warranty: 2 Years Lifespan: 100000 Hours

Product Description

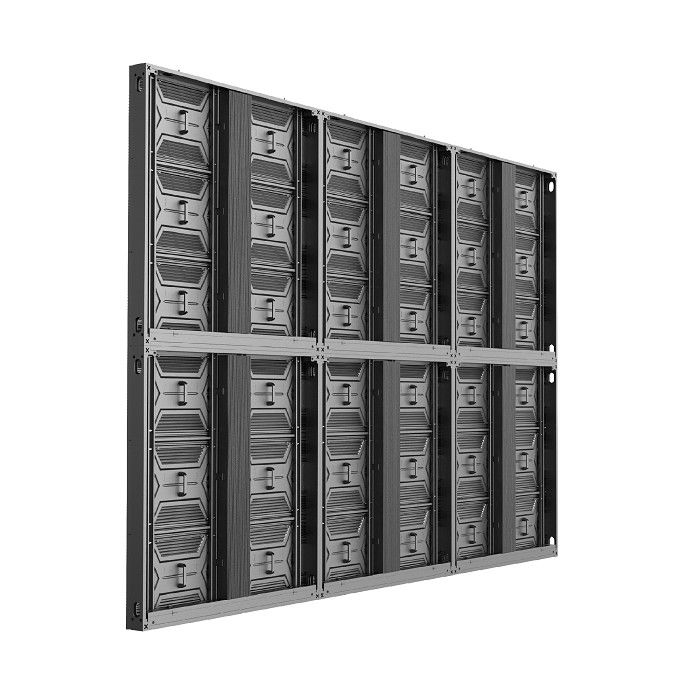

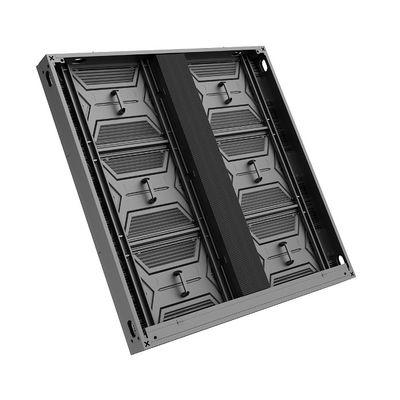

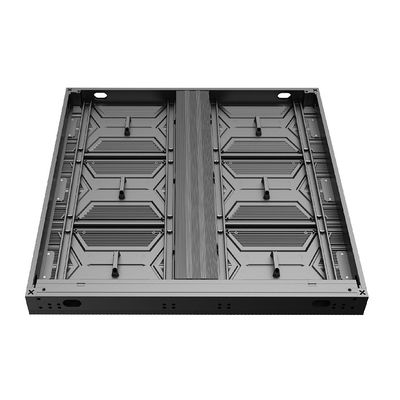

Hard Connection P5.71 Outdoor Fixed LED Display Screen Aluminum Profile Cabinet​



Product Description:

New outdoor front rear service display made of aluminum profile frame, high precision, concise modeling, mature industrial structure design. Easy to transport and install. New trend of outdoor led display comparing to conventional clumsy cabinet, it combines safety, stability, durability.



Visual World redesign and simplify the module and cabinet separately from the traditional outdoor bulky cabinets, in order to achieve improvements in appearance and functionality. Customized modules equip with unusual size 480x320mm, and enable it to work independently waterproof. The appearance and function of the cabinet are optimized, achieving a lightweight and easy installing effect.



In order to improve the led display's appearance and functionality, Visual World redesigns and simplifies it apart from the conventional outdoor bulky cabinets. Customized modules come with an uncommon size of 480x320mm and are waterproof. The cabinet's appearance and functionality have been optimized for lightness and ease of installation. By maximizing the effectiveness of outdoor display screen assembly, Visual World is setting a new standard in the industry for fixed outdoor installations.



Features:

  • Dual port module:Modules have 2 ports for connecting and both can use, so there won’t be left and right side to choose when doing installation or repairing.
  • Front rear service:Module and power box are reachable from front or rear side, convenient to use and meet different kinds of project conditions.
  • Waterproof:Up to ip66 protection level for outdoor using. Durable and stable.
  • Fast heat dissipation:Whole frame is made of aluminum profile, and no closed structure for the modules. Let the heat goes through the frame and module itself, extend the life time of the led display.
  • Hard connection:Modules connect to the hub board directly to communicate without cables. Convenient and fast, accurate positioning, no cables need to organize.



Technical Parameters:

Technical Parameters Outdoor Fixed LED Display Screen
Product Model: FIA-Outdoor
Pixel Pitch: 5.71 mm
LED Type: SMD2727
Cabinet Dimension: 960x960 mm
Cabinet Resolution: 168*168 pixels
Module Size: 480x320 mm
Module Resolution: 84*56 pixels
Module Qty/cabinet: 2x3=6pcs
Pixel Density: 30625 dots/sqm
Cabinet Weight: 22 kg
Cabinet Material: Aluminum profile
Cabinet Color: Black / White
Driving Type: 1/9
Brightness: 6000 nits
Max/Avg Power: 600/170 W/m2
Maintenance: Front rear service
Environment: Outdoor Use
IP Rating: IP66
Refresh Rate: >3840 Hz
Installation Type: Mounting/Stacking
Gray Scale: 14 bits
Viewing Angle: H:140°;V:140°
Operational Temp: -20℃~+50℃
Operational Humidity: 10%~90% RH



Applications:

Highway billboard

Pole LED wall

outdoor advertising

Roadside poster

Sport stadium

Hard Connection P5.71 Outdoor Fixed LED Display Screen Aluminum Profile Cabinet 0

Hard Connection P5.71 Outdoor Fixed LED Display Screen Aluminum Profile Cabinet 1



FAQ:

Q1: Are you a manufacturer or a trading company?

A1: We are a professional OEM/ODM manufacturer with 10 years of professional experience in the LED display industry.



Q2: How is your factory doing in terms of quality control?

A2: Quality first. We attach great importance to quality control from beginning to end. We focus on every detail. Our factory has obtained ISO9001, ISO14001,CE, RoHS, FCC certification.



Q3: What is your minimum order quantity?

A3: We can accept any quantity. And the price for
large quantities can be negotiated.



Q4: When will you deliver?

A4: According to the size and quantity of your order, we can deliver the led module within 3-5 working days and the finished led screen within 10-12 days.



Q5: What technical support can you provide?

A5: We provide various technical training free of charge, including the operation and maintenance training of LED display in the factory. We can send a team of engineers to the customer's country to guide the installation.



Q6: How long is the warranty period?

A6: The standard warranty period is 1 year. Depending on the requirements, the time may be longer.



Q7: Do you provide free spare parts in every order?

A7: Yes, a certain number of spare parts will be provided free of charge, including modules, power lines, signal lines, LED lights, IC, masks, power supplies, receiving cards, etc.
