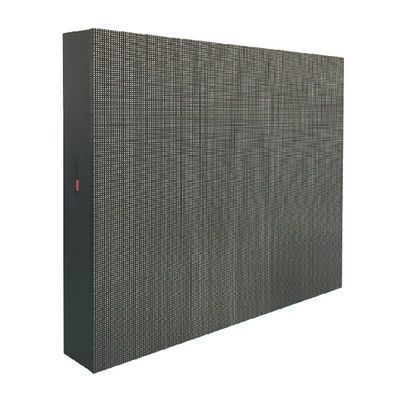

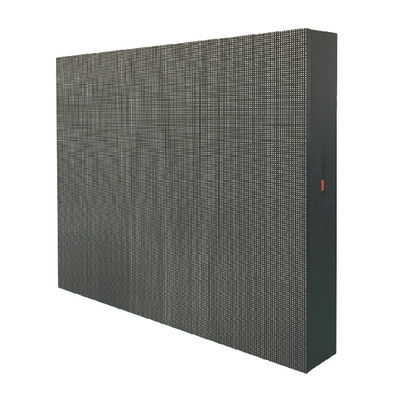

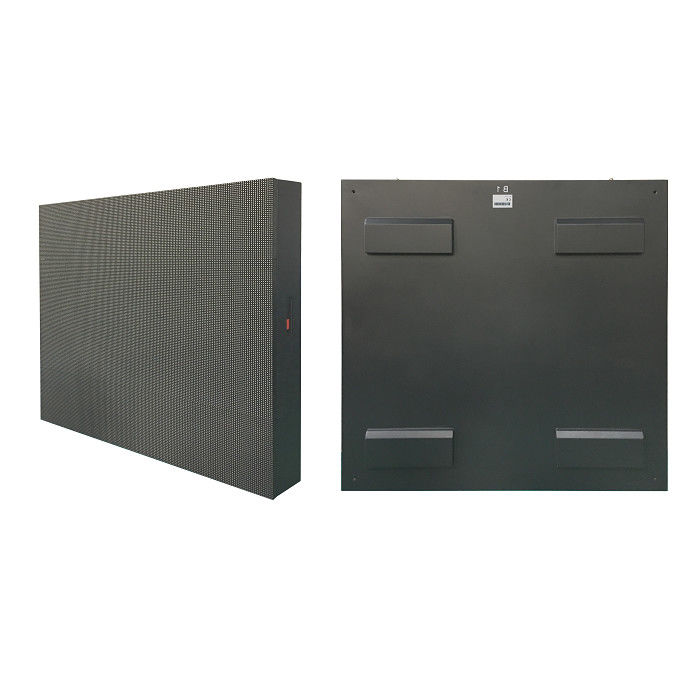

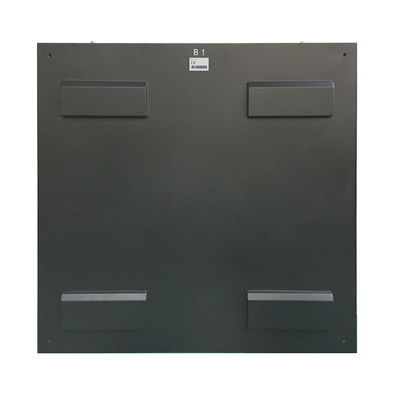

P2.5 Aliuminum Profile Outdoor Fixed LED Display Screen with 960X960mm Cabinet
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P2.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000sqm per month |
|
Detail Information |
|||
| Pixel Pitch: | 2.5-16mm | Cabinet Size: | 960x960mm |
|---|---|---|---|
| Cabinet Material: | Aliuminum Profile | Cabinet Weight: | 30kg/sqm |
| Module Size: | 160 X 160mm | Module Connection: | Hard Connection |
| Operating Temperature: | -20°C To +60°C | Lifespan: | 100000 Hours |
| Refresh Rate: | ≥1920Hz | Working Voltage: | AC100-240V/50-60HZ |
| Ip Rating: | IP65 | Gray Scale: | 14 Bit |
| Color Temperature: | 6500K Adjustable | Brightness: | ≥6500nits |
| Highlight: | 960X960mm Outdoor Fixed LED Display Screen,P2.5 Outdoor Fixed LED Display Screen |
||
Product Description
P2.5 Aliuminum Profile Outdoor Fixed LED Display Screen with 960X960mm Cabinet
Product Description:
100% full front access fixed LED Display / 1000*1000mm Aluminum profile LED Panel / Wall-mounted outdoor LED screen / Waterproof LED Video wall / Outdoor LED screen without fan
Features:
- High brightness:the brightness can be over 6000nits, even 8000nits.
- Flanless design:Good heat dissipation without fans
- Front access:100% full front service, led module and power box all can be took out from front side.
- Aluminum module:Aluminum bottom base of module, more stable and good heat dissipation.
Technical Parameters:
| Product Model: | P2.5 | P3 | P3.076 | P3.33 | P3.33 | P4 | P4 |
| Pixel Pitch: | 2.5mm | 3mm | 3.076mm | 3.33mm | 3.33mm | 4mm | 4mm |
| LED Type: | SMD1415 | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD1921 | SMD1921 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 1024x1024mm | 960x960mm |
| Module Size: | 160×160mm | 192×192mm | 192×192mm | 160×160mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/16 | 1/16 | 1/13 | 1/12 | 1/12 | 1/8 | 1/10 |
| Brightness: | 5500 nits | 5500 nits | 5000 nits | 5500 nits | 5500 nits | 6500 nits | 5500 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | -20℃~+60℃ | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
| Product Model: | P5 | P5 | P5.926 | P6 | P6.67 | P8 | P8 |
| Pixel Pitch: | 5mm | 5mm | 5.926mm | 6mm | 6.67mm | 8mm | 8mm |
| LED Type: | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD3535 | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm | 960x960mm |
| Module Size: | 160×160mm | 320×160mm | 320×160mm | 192×192mm | 320×160mm | 256×128mm | 320×160mm |
| Maintenance | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel | Steel | Steel | Steel | Steel | Steel |
| Driving Type: | 1/8 | 1/8 | 1/7 | 1/8 | 1/6 | 1/4 | 1/5 |
| Brightness: | 5200 nits | 5200 nits | 5800 nits | 5000 nits | 5500 nits | 5500 nits | 5800 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz | >1920 Hz |
| Installation Type: |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
Mounting /Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
| Product Model: | P10 | P16 |
| Pixel Pitch: | 10mm | 16mm |
| LED Type: | SMD3535 | SMD3535 |
| Cabinet Dimension: | 960x960mm | 1024x1024mm |
| Module Size: | 320×160mm | 256×256mm |
| Maintenance | Rear service | Rear service |
| Cabinet Weight: | 38 kg | 38 kg |
| Cabinet Material: | Steel | Steel |
| Driving Type: | 1/2 | Static |
| Brightness: | 6000 nits | 6500 nits |
| Max/Avg Power: | 800/280 W/m2 | 800/280 W/m2 |
| Environment: | Outdoor | Outdoor |
| IP Rating: | IP65 | IP65 |
| Refresh Rate: | >1920 Hz | >1920 Hz |
| Installation Type: | Mounting/Hanging | Mounting/Hanging |
| Gray Scale: | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:120° | H:140°；V:120° |
| Operational Temp: | Outdoor | Outdoor |
| Operational Humidity: | 10%~90% RH | 10%~90% RH |
Drawing:
Outdoor waterproof 1000x1000x90mm Aluminum Profile LED Panel.
Application:
Wharf Mall
Train station
Theme Park
Outdoor activity area
Building exterior wall
creative modeling
Park entrance
FAQ:
A1:The main characteristic of the LED screen is that the lighting system is created with LED bulbs that emit light and are synchronized to give the effect of a video screen. These bulbs are grouped in modules that facilitate their installation and maintenance. If a module needs to be replaced, it can be easily uninstalled from the screen.
Outdoor LED screens are used both as advertising and informative screens, creating giant LED screens with iron structures or installed in cabinets of different sizes to facilitate their installation and maintenance.
A2:The main difference between these two types of screens is their technology. Outdoor LED screens to use light bulbs as a light source, while LCD technology screens use a layer of liquid crystal that can improve their resolution but only reach 98 inches in total size.
A3:The components of LED screens are diverse, and you can also add accessories according to how you need them to be installed, but here we will talk about the electronic components of LED screens.
LED modules with different sizes.
Cabinets are made of iron or aluminium.
Power supply
Sending card (it is an accessory and is not inside the screen)
Receiving card
