P8 Outdoor Fixed LED Display Screen 1280x960mm Cabinet Outdoor Curved LED Video Wall
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | P8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 20 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1800sqm/month |
|
Detail Information |
|||
| Chip Color: | RGB Full Color | Usage: | Outdoor Curved Led Video Wall |
|---|---|---|---|
| Pixel Density: | 15625 Dots/sqm | Function: | Module Flash, Automatic Power On/off, Automatic Brightness Adjustment |
| Application: | Building Facade, Creative Archetecture, Curved Billboard | Module Connection: | Screws |
| Warranty: | 2 Years | Lifespan: | 100000 Hours |
| High Light: | P8 Outdoor Fixed LED Display Screen,1280x960mm Outdoor Fixed LED Display Screen,Outdoor Curved LED Video Wall |
||
Product Description
P8 Outdoor Fixed LED Display Screen 1280x960mm Cabinet for Outdoor curved led video wall
Product Description:
The standards for quality and installation are substantially higher for outdoor all-weather installations than for indoor led displays. Visual World FS-outdoor series led displays are made to meet different outdoor requirements, which is also the most common and widely used outdoor display screen.
Product Quick Details:
1. Waterproof cabinet
2. Rear service
3. High-end cabinet housing
4. Wide viewing angles
5. Good heat dissipation
Features:
The standards for quality and installation are substantially higher for outdoor all-weather installations than for indoor led displays. Visual World FS-outdoor series led displays are made to meet different outdoor requirements, which is also the most common and widely used outdoor display screen.
1. WATERPROOF

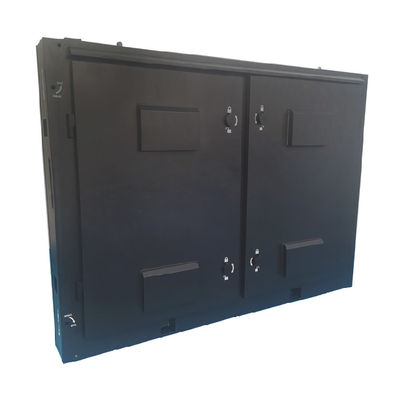

Durable iron cabinet with back door, IP65 protection level for outdoor using.
2. REAR SERVICE
Module, power supply and receiving card are reachable from backdoor, suitable for outdoor display projects with maintenance channels.
3. HIGH-END CABINET HOUSING
High quality cabinet frame housing, iron frame ensures durability and smooth led screen flatness.
4. WIDE VIEWING ANGLES
Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
5. GOOD HEAT DISSIPATION
Built-in fans and curved holes at the back door speed up the heat dissipation, extend the life time of the cabinet.
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Product Model: | FS-Outdoor |
| Pixel Pitch: | 8 mm |
| LED Type: | SMD3535 |
| Cabinet Size: | 1280x960 mm |
| Cabinet Resolution: | 160*120 pixels |
| Module Size: | 320x160 mm |
| Module Resolution: | 40*20 pixels |
| Module Qty/cabinet: | 4x6=24pcs |
| Pixel Density: | 15625 dots/sqm |
| Cabinet Weight: | 50 kg |
| Cabinet Material: | Iron |
| Cabinet Color: | Black |
| Scan Type: | 1/6 |
| Brightness: | 6000 nits |
| Max/Avg Power: | 800/280 W/m2 |
| Maintenance: | Rear service |
| Environment: | Outdoor Use |
| IP Rating: | IP65 |
| Refresh Rate: | >1920 Hz |
| Installation Type: | Mounting/Stacking |
| Gray Scale: | 14 bits |
Applications:
FAQ:
Q1:How does your factory do regarding quality control?
A1:Quality is priority.Our company always attach great importance to quality controlling from the very beginning to the very end.We focus on every detail,Our factory has gained CE, ROHS ,FCC,IP65 authentication.
Q2:What is your MOQ?
A2:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q3:When will you make the delivery?
A3:Generally, we can make the delivery within 10 working days according to the size and quantities of your order.
