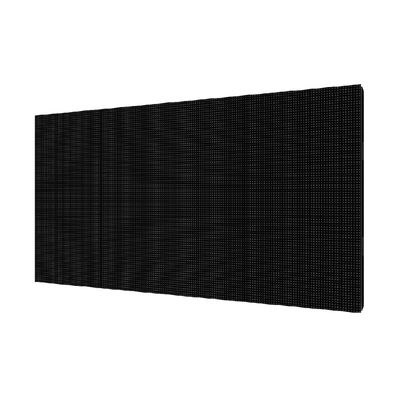

High Brightness P5 Outdoor Fixed LED Display 960*540mm Aluminum Profile
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, FCC |
| Model Number: | P5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, flight case |
| Delivery Time: | 10 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 1500sqm/month |
|
Detail Information |
|||
| Refresh Rate: | ≥3840Hz | Operating Temperature: | -20℃~+50℃ |
|---|---|---|---|
| IP Rating: | IP65 | Gray Scale: | 14bit |
| Brightness: | 5500cd/㎡ | Lifespan: | ≥100,000hrs |
| Power Consumption: | Max.:720W/㎡, Ave.: 252W/㎡ | Maintenance: | Front Service |
| High Light: | P5 Outdoor Fixed LED Display,High Brightness P5 Outdoor LED Display,Aluminum Profile P5 Outdoor LED Display |
||
Product Description
Maintenance Front Service Outdoor LED Screen with Long Lifespan
Product Description:
Special cabinet size 960x540mm made of uniquemodule size 480x270mm, this product will help youstand out of the display crowds.
Features:
- 16:9 Gold ratio:Module size:480*270mm;Cabinet size:960*540mm
- Thin and light:Single cabinet 11.5kg,thickness 58mm

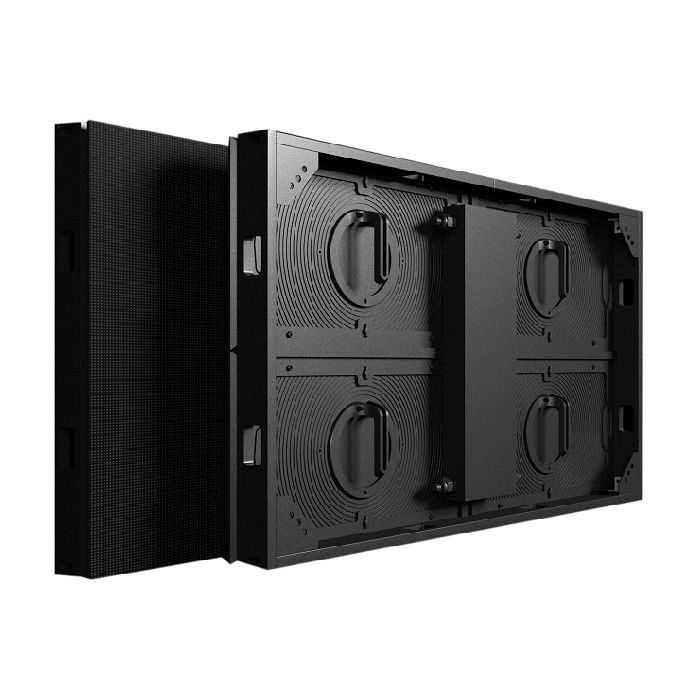

- Module magnet design:Power box can be individually removed.
- Modular design:Front service
- Quick and easy installation
Technical Parameters:
| Technical Parameters | Outdoor Fixed LED Display Screen |
| Pixel Pitch: | 5 mm |
| LED Type: | SMD1921 |
| Cabinet Dimension: | 960×540 mm |
| Module Size: | 480x270 mm |
| Cabinet Weight: | 13kg |
| Cabinet Material: | Aluminum Profile |
| Driving Type: | 1/9 |
| Brightness: | 5500 nits |
| Max/Avg Power: | 720/252 W/m2 |
| Maintenance: | Front service |
| IP Rating: | IP65 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
Applications and Case:
The Outdoor Fixed LED Display Screen is also a popular choice for sports arenas and stadiums. Its high brightness and wide viewing angle make it ideal for displaying live sports events and replays. Its IP65 rating also ensures that the screen can withstand any weather conditions, making it suitable for outdoor sports venues.
- IP65 Rating: With its IP65 rating, the screen is able to withstand harsh weather conditions, ensuring uninterrupted display of live events.
- Wide Viewing Angle: With a horizontal viewing angle of 140° and a vertical viewing angle of 140°, the screen can be viewed from multiple angles without any loss of image quality.
Installation:
Installation of Outdoor led display
FAQ:
Q1: I have not done business with USER SDT before, how can i trust your organisation?
A1: Our company has been on Alibaba.com for almost 13 years, which is longer than most of other digital advertising suppliers. We've been a golden supplier for years. Our certified products also show how we are serious about our exports, for example, CE, ,RoHS,FCC, ISO9001. Our Trade Assurance Limit is over $323,000 USD and growing, this shows how our partners trust us!
Q2: Do you give any discounts ?
A2: Prices are directly affected by the quantity. Simple ratio's, cost more to produce small qty and samples orders then largerones. We have many ways to help our partners when starting the sample processes. Make sure to ask your Key Account MGR on how we can make you save some charges.
Q3:I would like to add my company logo on your products, is this possible?
A3: Visual World is an OEM / ODM factory to start, we customize on a regular basis products for many large retaillers and brands.
