P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg 16bit
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg 16bit | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aluminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | P1.25 fine pitch LED display,Flip-COB LED display 600x337.5mm,Die-cast aluminum LED display 16bit |
||
Product Description

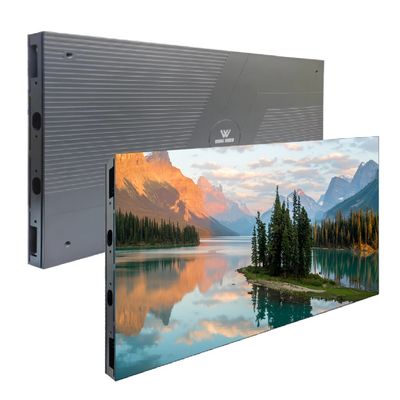

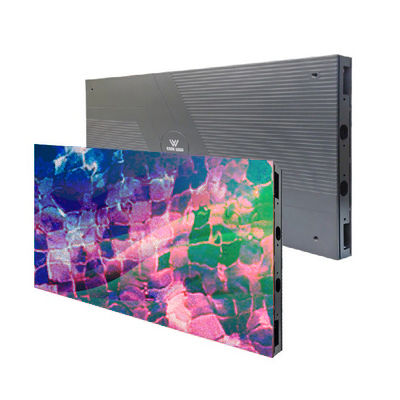

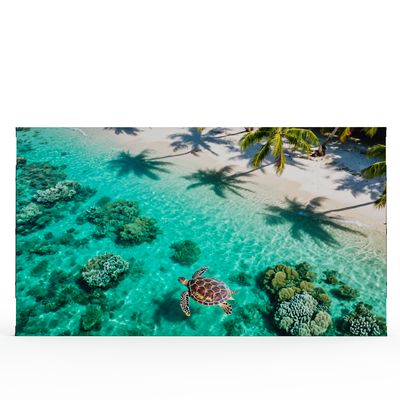

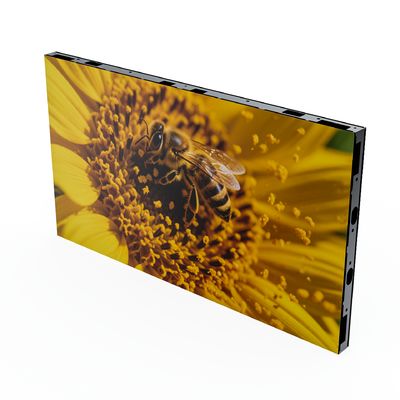

P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg 16bit
P1.25 Fine Pitch LED Display Flip-COB 600*337.5mm Die-casting AL 4.6kg 16bit
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Key Features
- Full flip-chip COB process with protection technology including anti-collision, waterproof, moisture-proof, and salt spray resistance
- Module utilizes 3D ink printing technology, increasing contrast by 20% and reducing brightness requirements
- Supports LCD status display panel for intuitive monitoring of cabinet operation status
- Module PCB employs HDI multi-layer circuit board design for excellent color uniformity and even temperature distribution
- Complete series features Sunrise's energy-saving common cathode chip with higher performance and grayscale levels up to 16bit
Technical Specifications
| Parameter | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB (common cathode) | |||
| Cabinet Dimension (mm) | 600*337.5*29.5 | |||
| Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
| Module Size (mm) | 150x168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Scan Mode | 1/36 | 1/54 or 1/36 | 1/60 or 1/27 | 1/48 |
| Maintenance | Front Service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| Waterproof Level | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
Applications
- Advertising publish
- Retail store
- Shopping mall
- Home cinema
- Welcome display
- Self-service business
- Exhibition hall
- Airport
- Subway
- Elevator
- Restaurant & hotel supplies
- Education
- Medical treatment
Frequently Asked Questions
Q1: Are you trading company or manufacturer?
A1: We are a Professional and Integrated Manufacturer of R&D Different Kinds of LED Display Products.
Q2: What about the lead time?
A2: Our production time is 15-20 normal days against advance payment. For huge quantity, please check with our sales manager.
Q3: What aftersale service can provide?
A3: We have professional engineers providing 24H online technical support and by email. We also send professional technical personnel to the scene in customers' significant activities.
Q4: How to maintenance led screen?
A4: Check and maintain the screen annually. Clear the panel surface, check the cables connection, power supply and the controller card. If any LED modules or parts fail, you can replace them with our spare parts and send back the failed components for maintenance.
Q5: How to deliver the my goods?
A5: It depends on your budget and the date you need the LED screen. Regularly, the LED displays are shipped by sea. If the quantity is less and you need it urgently, we can arrange air cargo shipping for you.
