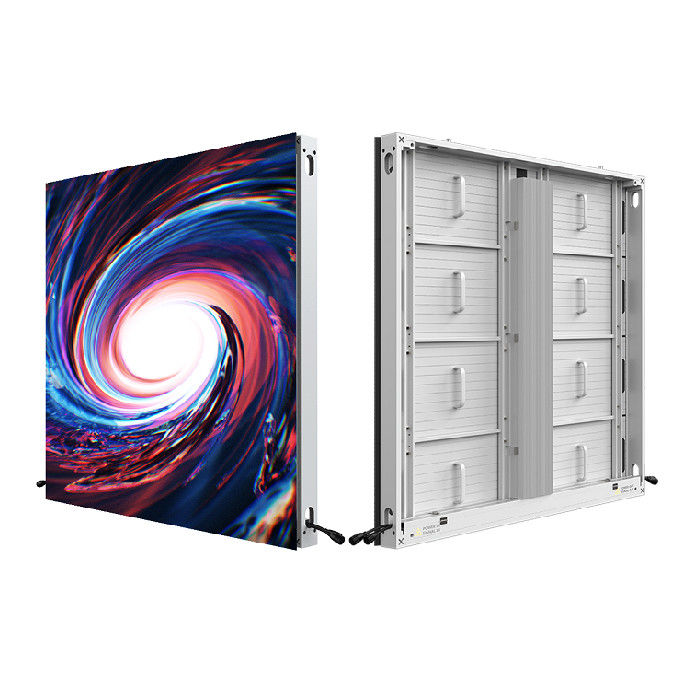

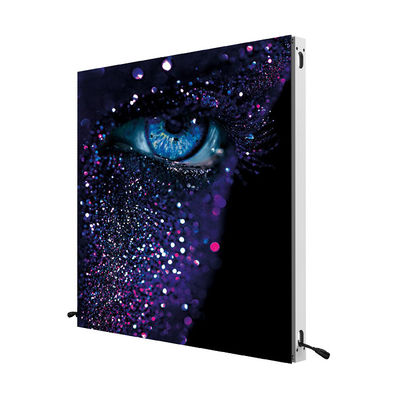

P7.8 Outdoor Fixed LED Display IP65 Aluminum Profile 9000nits For Building Entrance
P7.8 outdoor LED display IP65
,aluminum profile LED display screen
,9000nits fixed LED display
P7.8 Outdoor Fixed LED Display IP65 Aluminum Profile 9000nits For Building Entrance
Product Description:

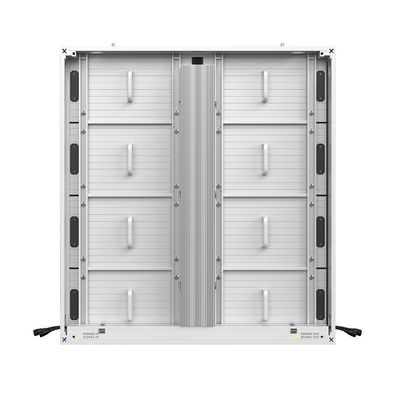

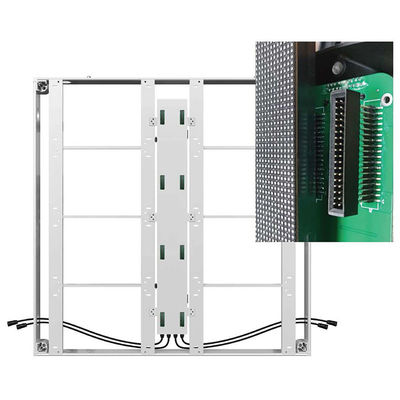

The P7.8 Outdoor Fixed LED Display integrates reliability and high performance through its robust installation design. Its hub connection minimizes failure rates, while the 500 x 250mm aluminum backplate resists deformation and enhances thermal management. Supporting both front and rear maintenance, it features an IP65 waterproof rating and a 2+1 power connector to prevent overheating damage. Optional smart modules with common cathode or anode configurations provide additional adaptability for diverse application needs.
Features:
- Waterproof:Durable, waterproof, fast heat dissipation aluminum cabinet with ip65 protection level for outdoor using.

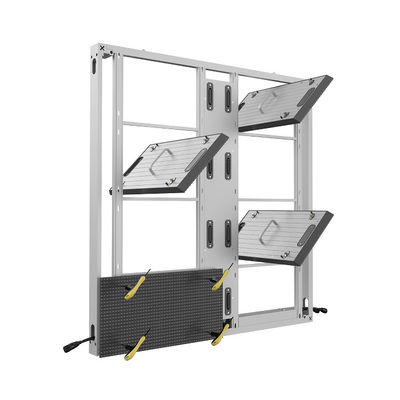

- Front & Rear service:Can be installed against the wall, with full front and rear maintenance design, convenient installation and saving installation space.
- Better Heat Dissipation:After one hour of white balance illumination, the aluminum base demonstrates superior heat dissipation, registering a temperature 10 degrees lower than a plastic base.
- Wide viewing angles:Wide viewing angles horizontal 140°, vertical 140° allows audience to watch the screen clearly from distances.
- 2+1 Power:The 2+1 power connector design features a built-in anti-reverse insertion mechanism to avoid damage from incorrect connections, precisely meets current load requirements for stable power delivery, and ensures safe, reliable module operation even under fluctuating electrical conditions.
Technical Parameters:
| Item | P7.8 |
| Pixel Pitch | 7.8125mm |
| Module Size | 500*250mm |
| Cabinet Dimension | 1000*1000*90mm/1000*500*90mm/1000*750*90mm/1500*1000*90mm/1500*500*90mm |
| LED Type | SMD2727 |
| Scan Mode | 1/4 |
| Cabinet Material | Aluminum Profile |
| Cabinet Weight | 30kg/cabinet |
| Brightness | 6000/9000nits |
| Power Consumption | 600/210w/m2 |
| Maintenance | Front/Rear Service |
| IP Rating | IP65 |
| Refresh Rate | ≥3840Hz |
| Viewing Angle | H:140°; V:140° |
| Operational Temp | ﹣20~50℃ |
| Operational Humidity: | 10%~90%RH |
Application:
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
- Advertising billboard
- Playing field
- Outdoor activity area
- Roadside poster
- Building exterior wall
FAQ
Q1: How much is the freight?
A1: The shipping cost is determined by the size of the screen, and the project information is informed by the inquiry.
Q2: What is Price per square meter of screen?
A2: Welcome to send us inquiry. Our professional sales engineers will provide suitable solutions.
Q3: Can I customize it?
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
Q4: May I know the Minimum order for your products?
A4: We have no limit for different size of the screen, but usually one screen’s dots are more than 50000 dots will be clear for the viewer to see the video on the screen.
Q5: How does your factory do regarding quality control?
A5: The lamp beads used in our LED display are all genuine lamp beads.We are do not need to be used scattered lights and tail lights. Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
-
