P3.9 Holographic Transparent LED Display 85% Transparency Only 6mm Thickness

P3.9 Holographic Transparent LED Display 85% Transparency Only 6mm Thickness
Brand Name
VW
Product Model
P3.9
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
1pcs
Unit Price
Negotiable
Payment Method
T/T,L/C,D/A,D/P
Supply Capacity
3000sqm/month
Product Details
Highlight:

P3.9 transparent LED display

,

holographic LED screen 6mm thickness

,

indoor transparent LED display 85% transparency
Product Name: P3.9 Holographic Transparent LED Display 85% Transparency Only 6mm Thickness
Brightness: 1000-5000nits
Waterproof: IP42
Led Type: SMD1415 1R1PG1PB UV
Driving Method: Static
Transparent Rate: 70%
Maintenance: Rear Service
Cabinet Size: 600/1200/1800x500/600/700/800mm
Cabinet Material: Aluminum+PCB
Panel Weight: 6 Kg/sqm
Product Description
Detailed Specifications And Features

P3.9 Holographic Transparent LED Display 85% Transparency Only 6mm Thickness


Product Description:

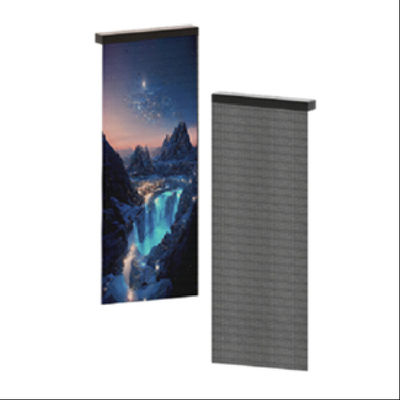

P3.9 Indoor Holographic Transparent LED Display is an innovative display solution designed for indoor applications that require a high level of visual engagement without compromising on aesthetics or space. This lightweight display system, weighing only 6kg per square meter, offers a perfect blend of technology and design.

P3.9 Holographic Transparent LED Display 85% Transparency Only 6mm Thickness 0

Features:

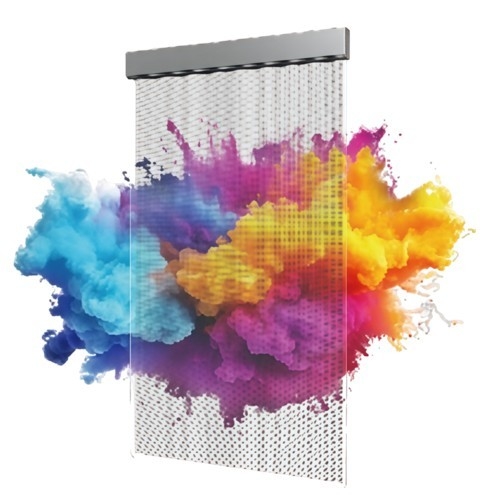

  • Transparent:Industry premiere,with no structural backbone；Real fully transparent；Permeability can reach 85%

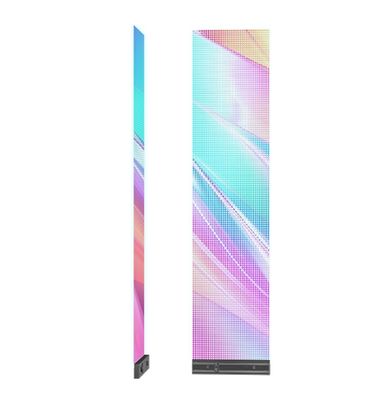

  • Thin:Module thickness<6mm；Seamless curved surface mountingIntegrated seamlessly onto glass

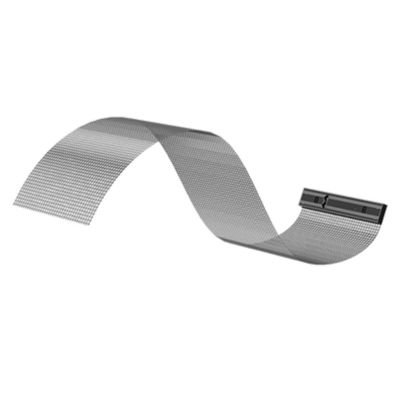

  • Foldable and arbitrarytransformation shape；Soft and bendable.lt can becustomized into different shapes according to different scenes, for example,triangles, ellipses, etc.

Technical Parameters:

Pixel Pitch  (H/V) W:3.9;H:3.9mm   W:6.25;H:6.25mm
Module Size 250x1000/250x1200/250x1500mm
LED Configuration SMD1415 1R1PG1PB UV
Pixel Density 65536dot/㎡ 25600dot/㎡
Transparency 80% 85%
Material Case Aluminum+PCB 1.8mm
Maintenance Rear
Driving Type Static
Control Method Synchronous/Asynchronous
Viewing Distance > 4m > 6m
Cabinet Weight 6kg/㎡
IP  Rating  (  front/back) IP20
Brightness 2000-3000 nits
Viewing Angle  (H/V) H:160°；V:160°
Refresh Rate 3840 Hz
Gray Scale 16 bit
Max/Avg Power 800/280 W/m²
Environment indoor
Operational Temp -20℃~+60℃
Operational Humidity 10%~90% RH
Operating Life 100,000hours

Applications:

  • Retail Displays: Enhance product showcases with dynamic holographic displays that capture the attention of shoppers and provide an immersive shopping experience.

  • Galleries and Exhibitions: Provide a unique viewing experience for art and exhibits, allowing visitors to see the artwork in a new light.

  • Corporate Settings: Use in conference rooms and lobbies for impactful presentations and informational displays that leave a lasting impression.

  • Entertainment Venues: Create immersive environments in theaters, clubs, and other entertainment spaces, adding depth and excitement to the atmosphere.

P3.9 Holographic Transparent LED Display 85% Transparency Only 6mm Thickness 1


FAQ:

Q1: What is the control system? How is it?
A1: We use Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/ Laptop/ PC/ Cloud control. It’s very easy and convenient to control.

Q2: Can I have a sample order for led screen?
A2: Yes, we welcome sample order to test and check quality. Mixed samples areacceptable.

Q3:Is it OK to print my logo on product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q4: What is your best service?
A4: 1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.

Q5. How about your delivery time?
A5: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.

Q6:How about your Warranty Term?
A6: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have professional after-sale team to solve your any questions after you placed an order. And your exclusive sales engineer will also help you get over any problems.
