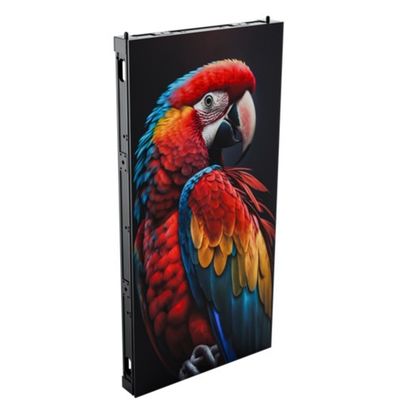

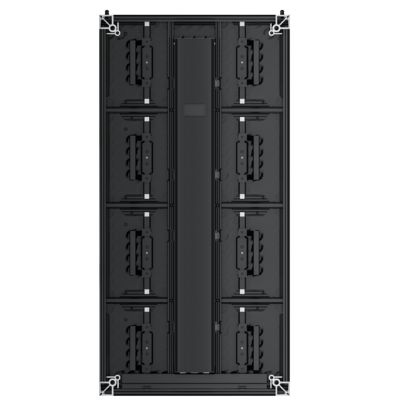

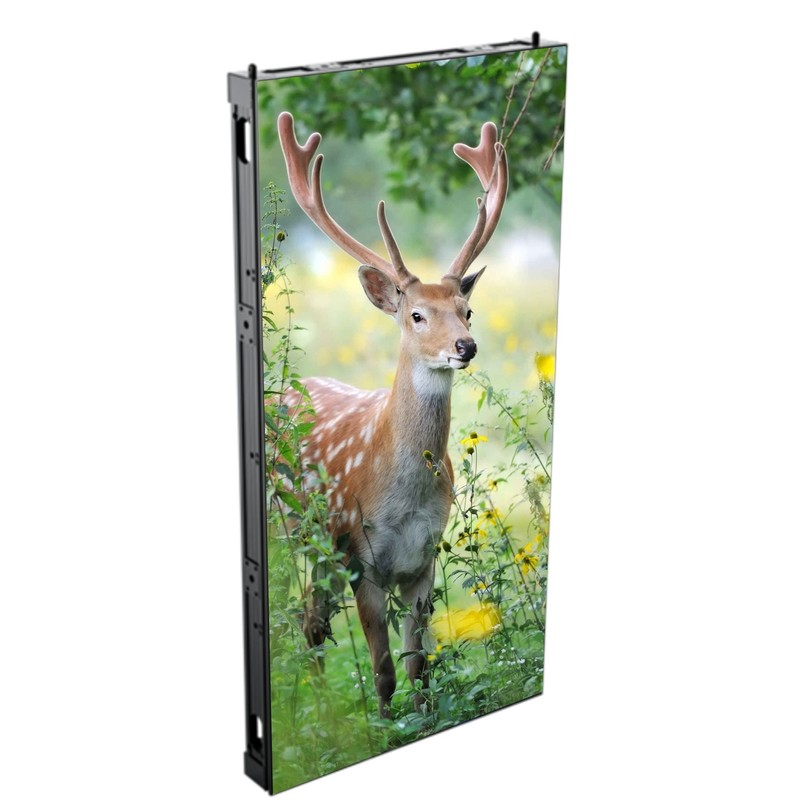

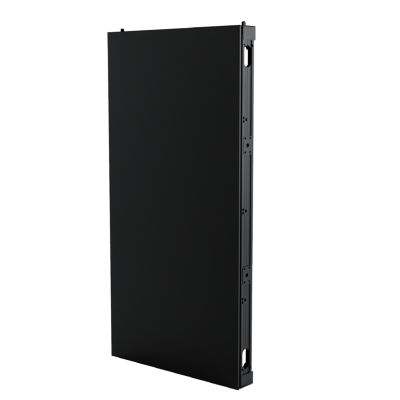

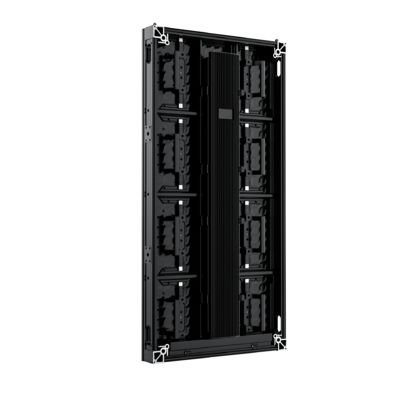

P3.91 Outdoor Fixed LED Display Zirca Series 500x1000mm Only 87mm Thick 19.5kg
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P3.91 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.91 Outdoor Fixed LED Display Zirca Series 500x1000mm Only 87mm Thick 19.5kg | Pixel Pitch: | 3.91mm |
|---|---|---|---|
| Cabinet Size: | 500*1000*87mm | Module Size: | 500*250*14mm |
| Cabinet Weight: | 19.5kg/Cabinet | Brightness: | 7500CD/m² |
| IP Rating: | IP65 | Maintenance: | Front/Back |
Product Description
P3.91 Outdoor Fixed LED Display Zirca Series 500x1000mm Only 87mm Thick 19.5kg
Product Description:
High-precision aluminum profile cabinet is only 87mm thick/19.5kg (500×1000mm),500×1000mm and 500×750mm cabinets are free to mix and match shaped shapes, sharing the same type of control box. Push-button lock realizes 5 seconds fast disassembly and assembly, optional arc lock supports curved surface splicing. Fanless ≤ 40dB silent operation, point-by-point calibration to ensure pixel-level uniformity. 3840Hz high refresh to eliminate 1/3000s shutter residual shadow, for stage performances, conferences, to provide a broadcaster-level visual base.
Features
- Point By Point Calibration: Fine-tune the white balance of each lamp bead point by point to eliminate chromatic aberration and light spots, achieve pixel-level display consistency.
- Work In Silence: Fanless silent design, working noise ≤ 40dB (A) ambient sound level.
- Installation And Maintenance: Optional curved locks for 10°~15° and 90° angles; modular push-button locks for 5-second quick assembly and disassembly; optional magnetic modules to support front service & rear service, efficient and convenient assembly and disassembly.
- Cabinets Design: The 500x1000mm and 500x750mm cabinets can be mixed and assembled into a variety of shapes; sharing a simple mini control box saves installation and calibration time.
Technical Parameters
| Item | Specification |
|---|---|
| PixelPitch | 3.91mm |
| Resolution rate | 128*64mm |
| Module Size | 500*250*14mm |
| Pixel LED | SMD1921 Black led |
| Module Power | ≤74W |
| Driving IC | ICN2055 |
| Drivingway | 1/8 |
| Material | Aluminum profile |
| Cabinet Weight (kg/Cabinet) | 19.5kg |
| Resolution rate | 128*256Dots |
| Cabinet Size | 500*1000*87mm |
| Module quantity | 1*4 |
| Density | 65536 Dots/㎡ |
| Brightness | 7500CD/m² |
| View Angel | H/V:120°/120° |
| Maximal power/㎡ | ≤650W/㎡ |
| Average Power/㎡ | ≤220W/㎡ |
| Refresh Frequency | 3840Hz |
| Gray Grade | ≥13bit |
| Protection grade | IP65 |
| Maintenance | Front/Back |
Application
- Outdoor creative modeling
- Building entrance
- Park entrance
- Swimming pool
FAQ
Q1: What products can you supply?
A1: We offer LED display screen products including various specifications of LED full-color display screens, LED irregular-shaped display screens. You can contact our sales team online for your customized requirements, they will help you to finalize your order.
Q2: Are you a manufacturer or a trading company?
A2: We are a company integrating manufacturing and trading in China. We have our own factory in Shenzhen.
Q3: Can you customize it for us?
A3: Yes. Our goods are normally customized as per client job site dimensions and situations.
Q4: Can I get a warranty?
A4: Yes, we offer a 2-year quality warranty for all our products, calculated from the date the goods are delivered to the customer.
Q5: What is your nearest shipping port?
A5: Shenzhen.
