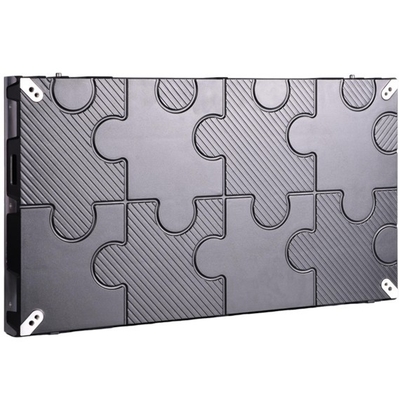

P1.56 Small Pixel Pitch LED Display Indoor 5.5kg Cabinet For Visual Data Center
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.56 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.56 Small Pixel Pitch LED Display Indoor 5.5kg Cabinet For Visual Data Center | Pixel Pitch: | 1.5625mm |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | Brightness: | 600nits |
| Cabinet Weight:: | 5.5kg | IP Rating: | F: IP30, R: IP45 |
| Highlight: | P1.56 LED display indoor,small pixel pitch LED screen,lightweight LED cabinet 5.5kg |
||
Product Description
P1.56 Small Pixel Pitch LED Display Indoor 5.5kg Cabinet For Visual Data Center
The P1.56 Small Pixel Pitch LED Display excels in delivering exceptional visual performance with ultra-fine detail and vibrant color reproduction. Its optimized 16:9 aspect ratio ensures broad viewing angles and comfortable immersion for all audiences. The integrated control system simplifies operation, while the full front-access maintenance design enables effortless servicing—keeping the display at peak performance with minimal downtime.
Key Features
- The full flip-chip COB process includes protection technologies such as anti-collision, waterproofing, moisture resistance, and salt spray resistance, preventing LED screens from blinding or experiencing failures due to dampness in high-humidity and salt-spray conditions.
- The module features 3D ink printing technology, enhancing contrast by 20% and lowering display brightness requirements. It supports an LCD status display panel for intuitive real-time monitoring of cabinet operations.
- The module's PCB utilizes an HDI multi-layer circuit board design, ensuring good color uniformity and even temperature distribution.
- The entire series incorporates Sunrise's energy-efficient common cathode chip, delivering higher performance with grayscale levels up to 16-bit.
Technical Specifications
| Product Model | FP0.9 | FP1.25 | FP1.56 | FP1.87 |
|---|---|---|---|---|
| Pixel Pitch | 0.9375mm | 1.25mm | 1.5625mm | 1.875mm |
| LED Type | 4 in 1 LED | SMD1212 | SMD1212 | SMD1515 |
| Cabinet Dimension | 600x337.5x58 mm | 600x337.5x58mm | 600x337.5x58mm | 600x337.5x58mm |
| Module Size | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm | 300x168.75 mm |
| Cabinet Weight | 5.5 kg | 5.5 kg | 5.5 kg | 5.5 kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type | 1/46 | 1/45 | 1/48 | 1/45 |
| Brightness | 400 nits | 600 nits | 600 nits | 600 nits |
| Max/Avg Power | 450/135 W/m² | 450/135 W/m² | 450/135 W/m² | 450/135 W/m² |
| Maintenance | Front service | Front service | Front service | Front service |
| Environment | Indoor Use | Indoor Use | Indoor Use | Indoor Use |
| IP Rating | F: IP30, R: IP45 | F: IP30, R: IP45 | F: IP30, R: IP45 | F: IP30, R: IP45 |
| Refresh Rate | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging | Mounting/Hanging |
| Gray Scale | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° | H:140°; V:140° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Typical Applications
- Digital Signage system
- Chain store
- Billboard
- Perimeter LED poster
- Arena display, etc.
Support and Service
Full-service support throughout the process.
- Pre-sales: We offer detailed production instructions and professional installation guidance.
- Sales: We provide customized solutions, visual designs, and project showcases.
- After-sales: Two-year warranty, professional maintenance team, timely assistance, spare parts provision, free training, logistics tracking, and continuous software improvement.
Frequently Asked Questions
Q1: Can you accept some sample orders?
A1: Yes, the sample order is acceptable for quality check and market test.
Q2: Does there have any warranty?
A2: 1 year or 2 years after service.
Q3: How to guarantee product quality?
A3: Always a pre-production sample before mass production; Always final Inspection before shipment.
Q4: How to deal with the faulty?
A4: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Secondly, during the guarantee period, we will send new module with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q5: To order a display, what kind of information do I have to offer you?
A5: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
