P2 Zirca-G Series Outdoor Fixed LED Display Ultra-Quiet For Home Control Centers
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, EMC |
| Model Number: | P2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 2000sqm/month |
|
Detail Information |
|||
| Product Name: | P2 Zirca-G Series Outdoor Fixed LED Display Ultra-Quiet For Home Control Centers | Pixel Pitch: | 2mm |
|---|---|---|---|
| Module Size: | 320×160mm | Cabinet Size: | 640×480×48mm |
| Cabinet Weight: | 7kg | Brightness: | 500~900 Nit |
| Maintenance: | Front | Installation Type: | Hoisting/mounting/wall Hanging |
| Highlight: | P2 Zirca-G LED display,outdoor fixed LED screen,ultra-quiet home control display |
||
Product Description

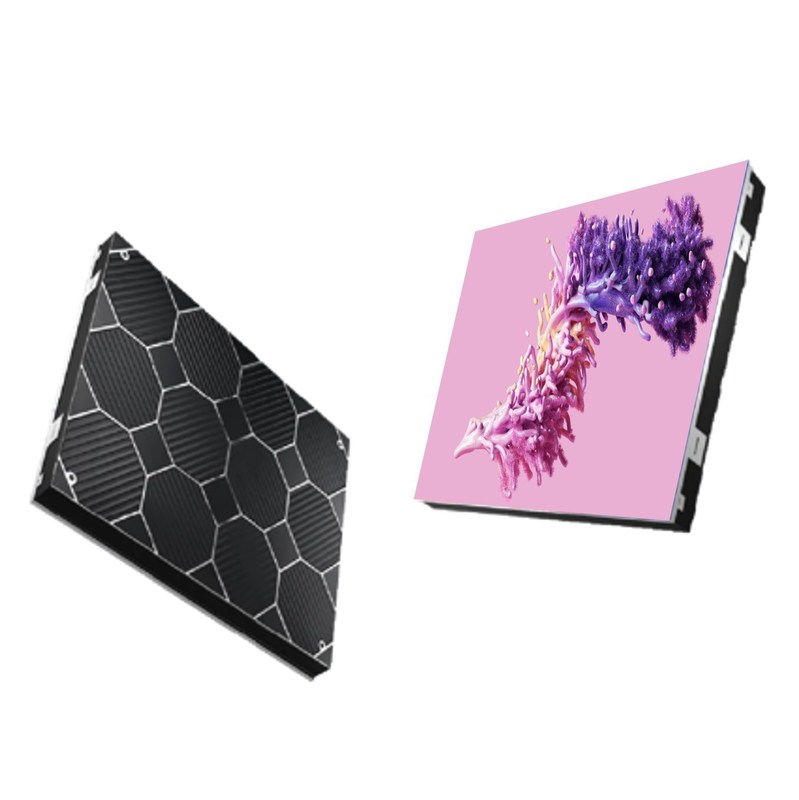

The P2 Outdoor Fixed LED Display supports flexible front/rear installation and comprehensive front maintenance through its ultra-strong magnetic unit modules. Featuring a standardized 640×480mm size for excellent cabinet compatibility, it delivers high refresh rates, superior grayscale performance at low brightness, exceptional contrast ratio, and consistently clear, lifelike image reproduction.
- Thin & Lightweight Design: The die-casting aluminum cabinet is designed to weigh 7 kgs/panel, providing greater convenience during installation and transportation.

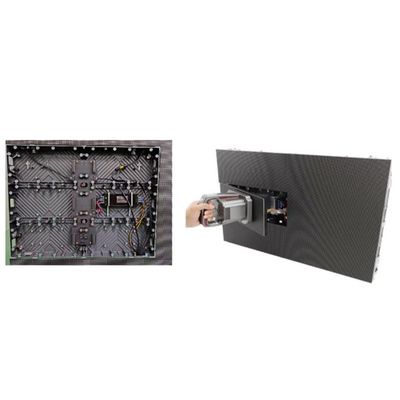

- Easy Installation & Maintenance: Supports front and rear installation, full front maintenance, and super magnetic design of the unit module.
- High Refresh & 5000:1 Contrast: High refresh rate, high grayscale at low lightness, and ultra-high contrast make the picture quality clear and realistic.
- Low Radiation & Ultra-Quiet & Wide Viewing Angle: Visual World offers vertical angles of 120° and horizontal viewing angles of 140°, allowing for a wide viewing range.

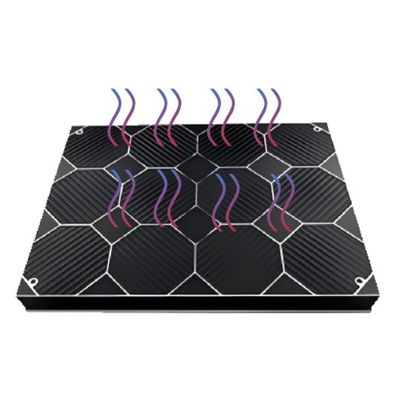

- Better Heat Dissipation: Better metal heat dissipation capability, low power consumption and longer lifetime. Using the latest technology, it can eliminate the phenomenon of LED light "caterpillars".
| Product Model | P2 |
|---|---|
| LED Type | SMD1212 |
| Pixel Pitch | 2mm |
| Module Resolution | 160×80 |
| Module Size | 320×160mm |
| Cabinet Resolution | 320×240 |

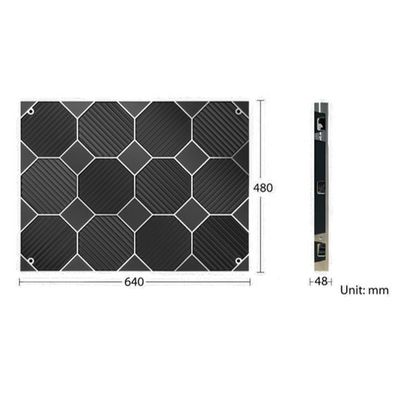

| Cabinet Size | 640×480×48mm |
| Pixel Density | 250,000dots/m² |
| Driving Mode | 1/40 |
| Cabinet Weight | 7Kg |
| Brightness | 500~900 nit |
| Viewing Angle | H140°/V120° |
| Highest Contrast | ≥5000:1 |
| Gray Scale | ≥14bit |
| Installation Type | Hoisting/mounting/wall hanging |
| Refresh Rate | ≥3840 |
| Input Voltage | AC:100V~240V(50~60Hz) |
| Maximum Power Consumption | 500W/m² |
| Average Power Consumption | 120W/m² |
| LED Lifespan | 100,000 hours |
| Operating Temperature | -10°C~+40°C |
| Operating Humidity | 10%~90%RH,no condensation |
- Control centers
- Broadcast studios
- Home theaters
- Museums
A1: Yes, we encourage sample orders to test and evaluate the quality, whether for a module or a complete screen.
A2: Yes, we provide a 24-month warranty on all our products to guarantee your satisfaction and confidence in our offerings.
A3: Of course. All the goods can be customized, we have a professional product development team, welcome to customize.
A4: Yes, we can print your logo. Please inform us formally before production and confirm the design based on our sample.
A5: Low MOQ, 1 square meter or a module checking is available.
A6: Always a pre-production sample before mass production; Always final Inspection before shipment.
A7: You should provide width/height of the display, the main use, the viewing distance, the scene photos, special requirements, then I can provide you with a detailed list of quotations.
