RGB Full Color P4.8 LED Screen Magnet Connection For Indoor
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | P4.8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 15 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1800sqm/month |
|
Detail Information |
|||
| Tube Chip Color: | RGB Full Color | Usage: | Indoor Fixed Installation |
|---|---|---|---|
| Pixels Density: | 43264 Dots/sqm | Display Function: | Control Backup, Module Flash |
| Application: | Curved, Innovative, Creative Shaped | Module Connection: | Magnet |
| Warranty: | 2 Years | Life Span: | 100000 Hours |
| Highlight: | RGB P4.8 LED Screen,P4.8 LED Screen Indoor,Magnet Connection Indoor LED Screen |
||
Product Description

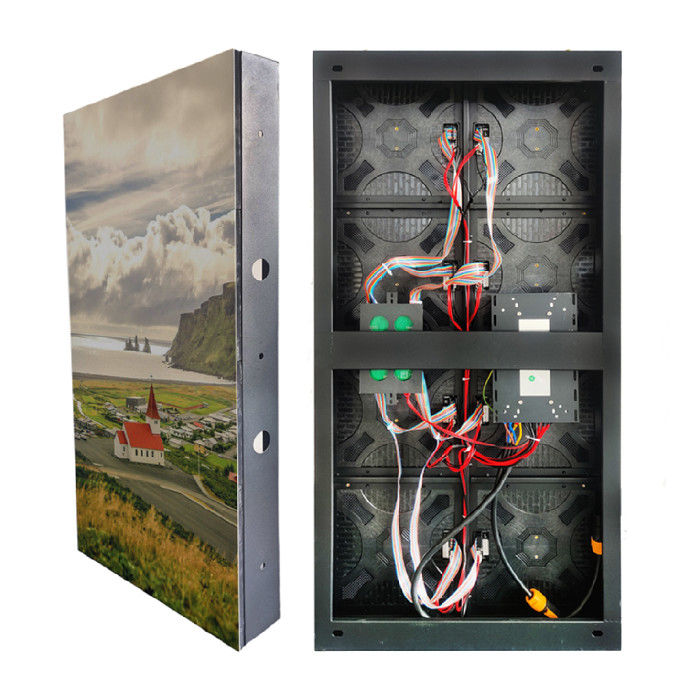

Indoor P4.8 Fixed LED Screen Front Access Metal Sheet Panel 500x1000mm
LED cabinet adopting simple steel is the most cost-effective LED display for indoor led projects. Due to fixed installation, we minimize product costs by reducing redundant components and materials without changing product use function and safety, thereby achieving cost control and improving resource utilization.
Product Quick Details:
1. Cost-effective
2. Quick installation
3. Low power consumption
4. Wide viewing angles
5. Seamless splicing
TECHNICAL SPECIFICATIONS
| Product Model: | FS |
| Pixel Pitch: | 4.8 mm |
| LED Type: | SMD2121 |
| Cabinet Dimension: | 500x1000 mm |
| Cabinet Resolution: | 104*208 pixels |
| Module Size: | 250x250 mm |
| Module Resolution: | 52*52 pixels |
| Module Qty/cabinet: | 2x4=8pcs |
| Pixel Density: | 43264 dots/sqm |
| Cabinet Weight: | 14 kg |
| Cabinet Material: | Steel |
| Driving Type: | 1/13 |
| Brightness: | 600-1000 nits |
| Max/Avg Power: | 500/175 W/m2 |
| Maintenance: | Front service |
| Environment: | Indoor Use |
| IP Rating: | IP20 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Hanging/Stacking |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -20℃~+50℃ |
| Operational Humidity: | 10%~90% RH |
FEATURES
This panel is made for front maintenance. Led module is fixing by magnets from front. 500x1000mm cabinet is only weighing 14kg same like die-casting aluminum. The installation is quick and easy with light cabinet and quick lock. If maintenance is required, use vacuum suction tool to remove the module on the front, then to do problem shooting.
1. COST EFFECTIVE
Optimize the cost of the structure and enhance the competitiveness of the product. replacing the die-casting box with this product solution to complete the same fixed installation project.
2. QUICK INSTALLATION
The steel cabinet equips with fast locks and positioning pins. Just stack the cabinets with pins and lock them. Light weight makes the whole installation effortless.
3. LOW POWER CONSUMPTION
Maximum 250W/panel, average 88W/panel, save electric cost while doing commercial advertising.
4. WIDE VIEWING ANGLES
Audience can watch the screen from wide viewing angles, horizontal 140°, vertical 140°.
5. SEAMLESS SPLICING
Exquisite sheet metal technology enables seamless connection between modules during assembly.
APPLICATION FIELD
Architecture
Conference Room
Enterprise Exhibition Hall
Reading Room
Multifunctional audio-visual room
Literature Room
Waiting hall
Reception Room
ACCESSORIES
| Colorlight / Novastar led controller |
| Power supply |
| Receiving card |
| Hub board |
| Main signal cable |
| Main power cable |
| Metal connector |
| Screws and screw drivers |
| Module power cable |
| Module safety rope |
| Flat cable |
| module mask |
| module shell |
| Front service suction tool |
CASE
MAINTENANCE TOOLS
Front service suction tool
Hotair gun
Welding station
Tin wire
Glue
Tweezers
Magnifier
Welding paste
Multimeter
Brightness meter
FAQ
Q1. Who is Visual World?
We are a led industry frontier manufacturer founded in Shenzhen China, providing customized LED screens according to customers' requirements. Our team is composed of manufacturers, designers and engineers with more than ten years experiences in LED industry. We specialize in OEM and ODM LED display. We also keep passion on designing new and innovative products as well as elegant and sophisticated.
Q2. Why choose Visual World?
-Over 20000sqm factory area
-Complete production equipment: SMT machines, temperature furnaces, LED dead pixel detectors, screw fixing machines, packaging machines, aging racks, assembling lines, different kinds of test machine like temperature impact, vibration, waterproof, salt spray test machines.
-Senior sales and technical teams with more than 20 years industry experiences
-Rich project experiences, hundreds of cases all over the world
-Product certification: CE, ROHS, EMC, LVD, ETL, FCC
-Online 24/7 technical support
Q3. What led brand do you use for this model?
We use NationStar SMD LED which provides stable quality and longer lifespan for this led screen.
Q4. How to do the configuration with novastar controller on site?
Don’t worry! We will finish the configuration when doing aging test. Then the configuration data will be saved in a u-disk, which will be sent to you with the shipment together. When you receive the shipment, you just need to do the wiring, and follow the software user manual we prepare for you. Or we can remote control the computer to light up the screen.
Q5. What is the delivery time for 100sqm?
The delivery time will be 20 days after order confirmation. The time may vary according to orders status.
