P2.5 Small Pixel Pitch Outdoor LED Display Good Heat Dissipation For Banquet

P2.5 Small Pixel Pitch Outdoor LED Display Good Heat Dissipation For Banquet
Brand Name
Visual World
Product Model
P2.5
Certificate
CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:

P2.5 outdoor LED display

,

small pixel pitch LED screen

,

banquet LED display with heat dissipation
Product Name: P2.5 Small Pixel Pitch Outdoor LED Display Good Heat Dissipation For Banquet
Pixel Pitch: 2.5mm
Weight(Kg/Pc): 6
Brightness: 4500nits
Module Size: 300x337.5mm
Cabinet Size: 600x337.5×50mm
Protection Grade: IP65
Cabinet Material: Aluminum Alloy
Product Description
Detailed Specifications And Features
P2.5 Small Pixel Pitch Outdoor LED Display with Excellent Heat Dissipation
Our advanced Small Pixel Pitch Display delivers superior performance, energy efficiency, and seamless ultra-HD visuals. Engineered for high-impact applications, it excels in premium digital signage, control room monitoring, and immersive VR/XR simulations.

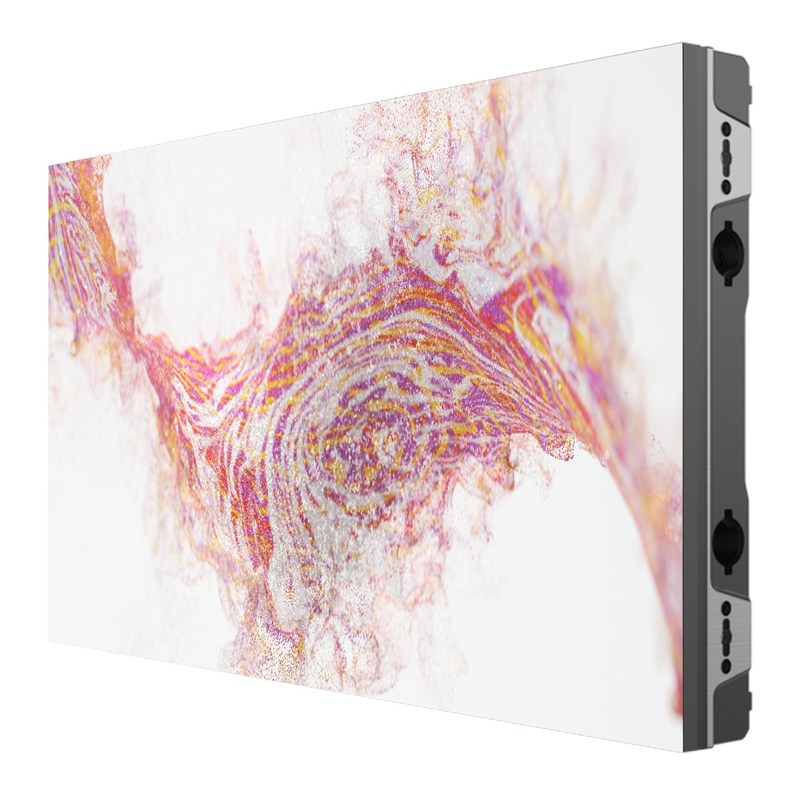

P2.5 Small Pixel Pitch Outdoor LED Display Good Heat Dissipation For Banquet 0
Key Features
  • Independent module design for easy installation and removal
  • No maintenance access required for outdoor installation
  • Die-cast aluminum cabinet ensures structural stability and excellent heat dissipation
  • Front service installation reduces labor requirements and overall costs
  • High refresh rate (3840Hz+) eliminates screen tearing and shadow dragging
  • Precise synchronization for high-speed shutter shooting and live events
Technical Specifications
Pixel Pitch (mm) 2.5
Module Size (mm) 300 x 337.5
Module Resolution (dot) 120 x 135
Module Assembly 2 x 1
Panel Size (w x h x d) (mm) 600 x 337.5 x 50
Panel Resolution (dot) 240 x 135
LED Type SMD1415
Brightness (cd/m²) 4500
Viewing Angle (H/V) 140° / 140°
Gray Level 16384
Refresh Rate (Hz) 3840Hz
Power Consumption (Max/Avg) 700W/m² / 350W/m²
Voltage AC100~240V 50/60Hz
Operating Temperature -30℃ to +50℃
Storage Temperature -40℃ to 80℃
Operating Humidity 10~95% RH
Protection Grade IP65
Cabinet Material Aluminum alloy
LED Lifetime 100,000 hours
Weight (kg/pc) 6
Applications
  • Digital signage systems
  • Chain stores
  • Street furniture
  • Billboards
  • Football stadiums
  • Perimeter LED posters
  • Arena displays

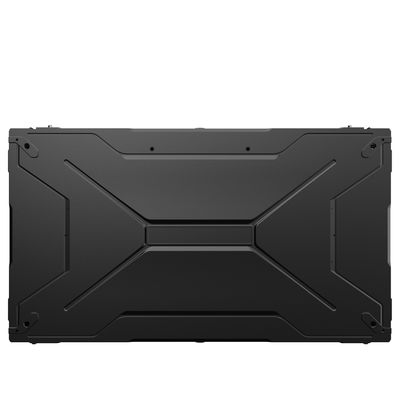

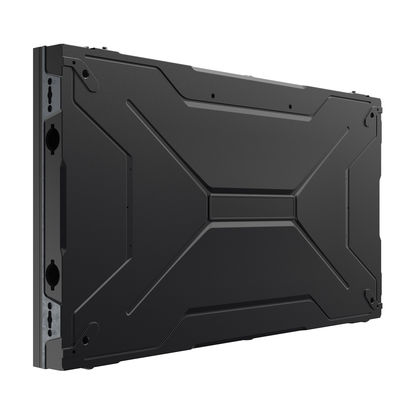

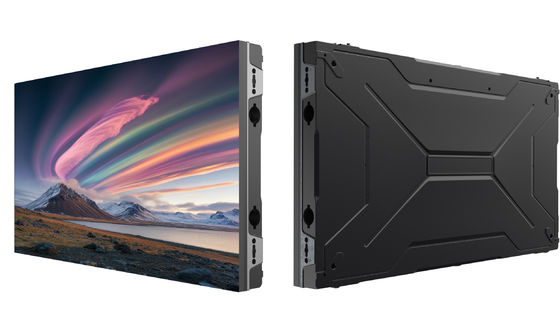

P2.5 Small Pixel Pitch Outdoor LED Display Good Heat Dissipation For Banquet 1 P2.5 Small Pixel Pitch Outdoor LED Display Good Heat Dissipation For Banquet 2
Packing & Shipping
Packing: Anti-shaking wooden cabinet/Air flight case/strong carton
Shipping Port: Shenzhen, China
Shipping Methods: Air; Express; Ocean; Land Transportation
Delivery Time: 10-15 working days after payment confirmation
Frequently Asked Questions
Q: Can you provide customized services?
A: Yes, we can design different categories of products according to your requirements.
Q: Is it possible to print our logo on the LED screen?
A: Yes, we offer logo customization. Please share your logo design and our team will confirm the details before production.
Q: Can I order a sample of the LED display?
A: Yes, we welcome sample orders for quality testing. You can choose any item you're interested in.
Q: How much is the freight?
A: Shipping costs depend on screen size and project specifications. Please provide details for an accurate quote.
Q: Do you offer a product warranty?
A: Yes, we provide a 2-year warranty on all our products.
Q: What information do I need to provide to order a display?
A: Please provide display dimensions, primary use, viewing distance, scene photos, and any special requirements for a detailed quotation.
