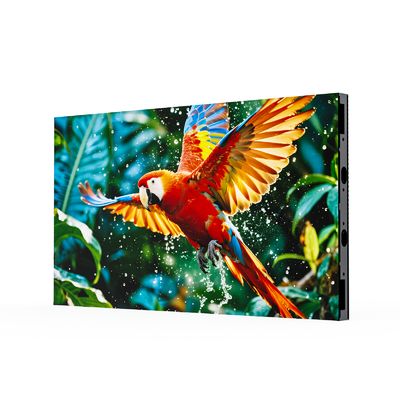

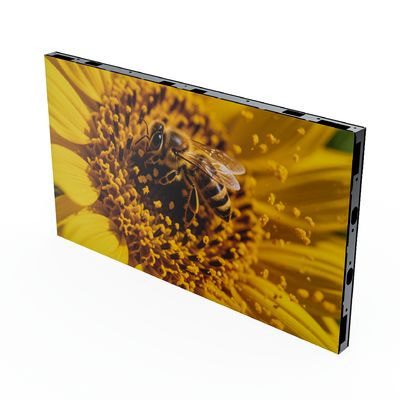

P0.9 Fine Pitch LED Display Flip-COB 600X337.5mm Die-casting Aluminum Only 4kg
P0.9 Fine Pitch LED Display Flip-COB 600X337.5mm Die-casting Aluminum Only 4kg
Brand Name
Visual World
Product Model
P1.25
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:
P0.9 fine pitch LED display
,Flip-COB LED display 600x337.5mm
,die-casting aluminum LED display
Product Name:
P0.9 Fine Pitch LED Display Flip-COB 600X337.5mm Die-casting Aluminum Only 4kg
Pixel Pitch:
P0.7/P0.9/P1.25/P1.56
Cabinet Weight:
4.6kg
Brightness:
0-2000nits
Cabinet Material:
Die-casting Aluminum
LED Type:
COB
Cabinet Dimension:
600x337.5mm
Maintenance:
Front Service
Product Description
Detailed Specifications And Features
P0.9 Fine Pitch LED Display Flip-COB 600X337.5mm Die-casting Aluminum Only 4kg
Discover the cutting-edge display technology of the P0.9 Fine Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features:
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
| Model | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.78mm | 0.9375mm | 1.25mm | 1.56mm |
| LED Type | Flip-COB (common cathode) | |||
| Cabinet Dimension (mm) | 600*337.5*29.5 | |||
| Cabinet Resolution | 768*432 | 640*360 | 480*270 | 384*216 |
| Module Size(mm) | 150x168.75 | |||
| Cabinet Weight | 4kg | |||
| Cabinet Material | Die-casting Aluminum | |||
| Driving Type | 1/36 | 1/54 or 1/36 | 1/60 or 1/27 | 1/48 |
| Maintenance | Front service | |||
| Brightness | 600/2000 nits | 600/2000 nits | 600/1500 nits | 600/1000 nits |
| Max Power | 390W/m² | 420W/m² | 330W/m² | 330W/m² |
| Avg Power | 136W/m² | 147W/m² | 100W/m² | 100W/m² |
| IP Rating | Front: IP54 Rear: IP30 | |||
| Refresh Rate | >3840Hz | |||
| Installation Type | Mounting/Hanging/Stacking | |||
| Gray Scale | 16bit | |||
| Viewing Angle | H:170°V:170° | |||
| Operational Temp | -20℃~+50℃ | |||
| Operational Humidity | 10%-90%RH | |||
Applications:
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment
FAQ:
Q1: Are you a manufacturer or trading company?
We are a professional OEM/ODM manufacturer, which has specialized in the LED display industry for more than 10 years.
Q2: How to install?
Free of charge to provide detailed steel structure drawings and installation guidance and wiring diagram, free remote debugging.
Technical support: Provide technical consultation and guidance to help users solve problems encountered during use;
Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.
Technical support: Provide technical consultation and guidance to help users solve problems encountered during use;
Remote collaboration: Specialized after-sales department online remote operation to ensure the normal use of the screen.
Q3: What about your quality?
The lamp beads used in our LED display are all genuine lamp beads. We do not need to be used scattered lights and tail lights.
Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Using silver-containing solder paste, pure copper power cords and short cables, a good screen is our commitment to every customer.
Q4: What about the warranty?
Calculated from the goods to the customer, the warranty period is 3 years, don't worry, there is a problem with the module, you can send it back to us for repair.
Q5: What's your after-sale service?
If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
Q6: Can the product system be customized with models?
Yes, support customization.
