P1.25 Fine Pixel Pitch Displays Full Flip-chip COB 4.6kg Front Service
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P1.25 Fine Pixel Pitch Displays Full Flip-chip COB 4.6kg Front Service | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aliuminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | Fine Pixel Pitch LED Display,Full Flip-chip COB LED Display,Front Service LED Display |
||
Product Description

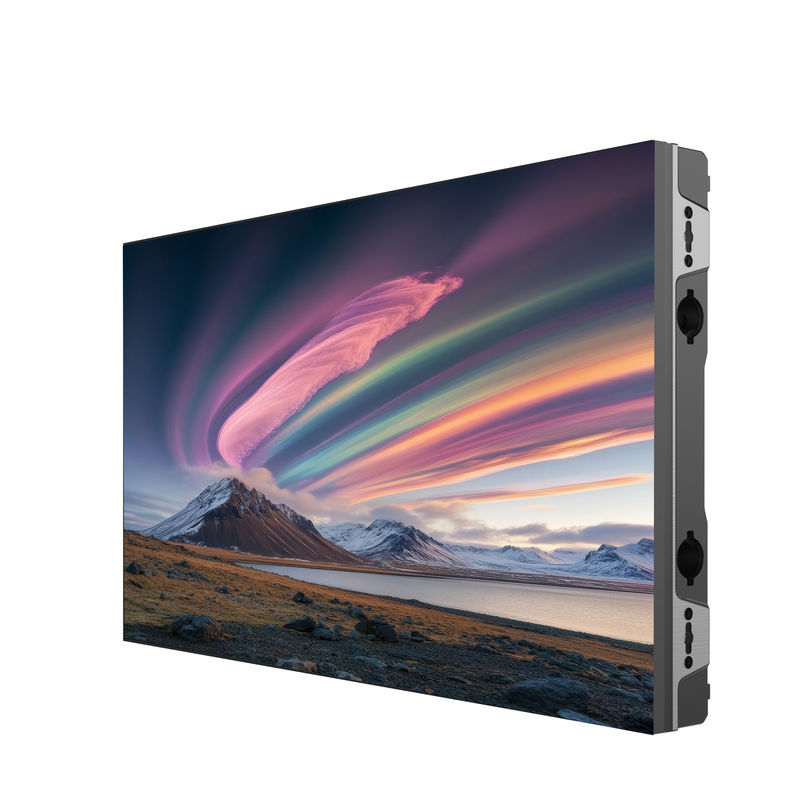

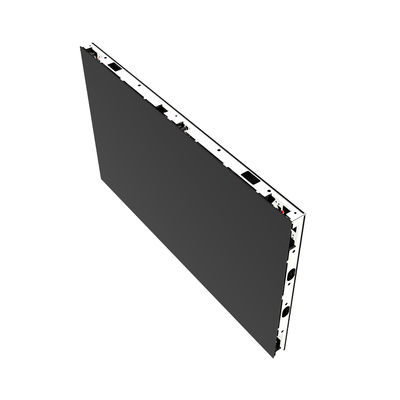

P1.25 Fine Pixel Pitch Displays Full Flip-chip COB 4.6kg Front Service
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Key Features
- Full flip-chip COB process with anti-collision, waterproof, moisture-proof, and salt spray protection
- 3D ink printing technology increases contrast by 20% and reduces brightness requirements
- LCD status display panel for real-time cabinet operation monitoring
- HDI multi-layer circuit board design ensures excellent color uniformity and temperature distribution
- Sunrise energy-saving common cathode chip with 16-bit grayscale for superior performance
Technical Specifications
| Parameter | P0.7 | P0.9 | P1.25 | P1.56 |
|---|---|---|---|---|
| Pixel Pitch | 0.7mm | 0.9mm | 1.25mm | 1.56mm |
| LED Type | COB | COB | COB | COB |
| Cabinet Dimension | 600×337.5×35mm | 600×337.5×35mm | 600×337.5×35mm | 600×337.5×35mm |
| Module Size | 150×168.75mm | 150×168.75mm | 150×168.75mm | 150×168.75mm |
| Cabinet Weight | 4.6kg | 4.6kg | 4.6kg | 4.6kg |
| Cabinet Material | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum | Die-casting Aluminum |
| Driving Type | 1/36 | 1/36 | 1/27 | 1/48 |
| Maintenance | Front Service | Front Service | Front Service | Front Service |
| Brightness | 0-2000 nits | 0-2000 nits | 1500 nits | 1000 nits |
| Max/Avg Power | 390/136 W/m² | 420/147 W/m² | 330/100 W/m² | 330/100 W/m² |
| IP Rating | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 | Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz | >3840Hz | >3840Hz | >3840Hz |
| Installation Type | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking | Mounting Hanging Stacking |
| Gray Scale | 16bit | 16bit | 16bit | 16bit |
| Viewing Angle | H:170° V:170° | H:170° V:170° | H:170° V:170° | H:170° V:170° |
| Operational Temp | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
Applications
Advertising Publish
Retail Store
Shopping Mall
Home Cinema
Welcome Display
Self-Service Business
Exhibition Hall
Airport
Subway
Elevator
Restaurant & Hotel Supplies
Education
Medical Treatment
Frequently Asked Questions
Are you a manufacturer or trade company?
We are a professional OEM/ODM manufacturer with more than 10 years of professional experience in the LED display screen industry.
What can I get from you?
LED module, LED display screen, LED display screen series products.
How about your warranty period?
1-3 years warranty covering structure design, installation issues, and programming screens.
How to use LED screens?
We have a complete technical team, with a dedicated technical engineer and sales manager assigned to each customer. From pre-sales to during-sales and after-sales, we provide 24/7 service to ensure that you can operate your LED display proficiently in the shortest time possible.
What other services can you provide for LED displays?
As our customer, you will have a dedicated technical engineer and sales manager who will visit you offline 1 to 3 times per year, providing offline maintenance and guidance on the latest technologies for your products.
