P3.9 Holographic Indoor LED Transparent Display 6KG Per Square Meter Rear Service
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P3.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood case, flight case |
| Delivery Time: | 5-10 days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 3000sqm/month |
|
Detail Information |
|||
| Product Name: | P3.9 Holographic Indoor LED Transparent Display 6KG Per Square Meter Rear Service | Brightness: | 1000-5000nits |
|---|---|---|---|
| Waterproof: | IP42 | Led Type: | SMD1415 1R1PG1PB UV |
| Driving Method: | Static | Transparent Rate: | 70% |
| Maintenance: | Rear Service | Cabinet Size: | 600/1200/1800x500/600/700/800mm |
| Cabinet Material: | Aluminum+PCB | Panel Weight: | 6 Kg/sqm |
| Highlight: | Holographic Indoor LED Transparent Display,P3.9 Indoor LED Transparent Display,6KG Indoor LED Transparent Display |
||
Product Description

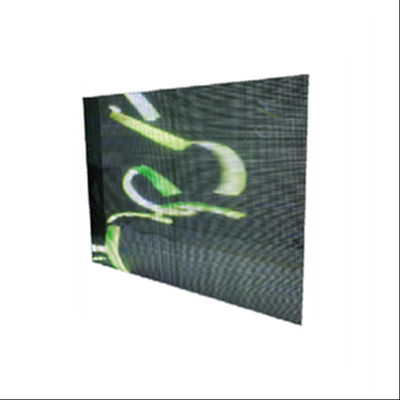

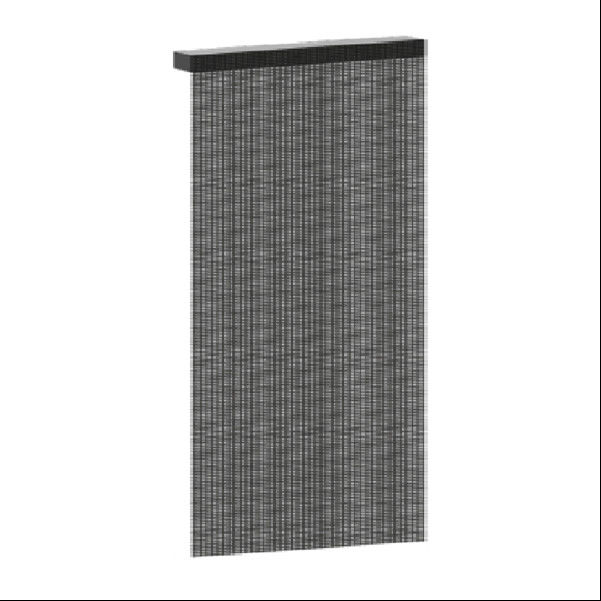

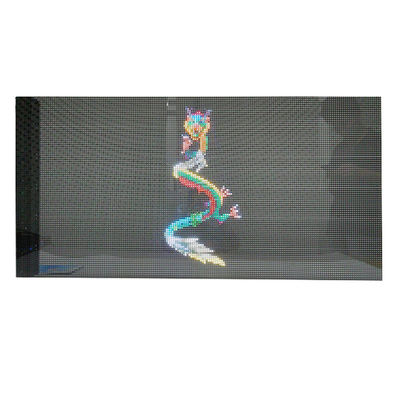

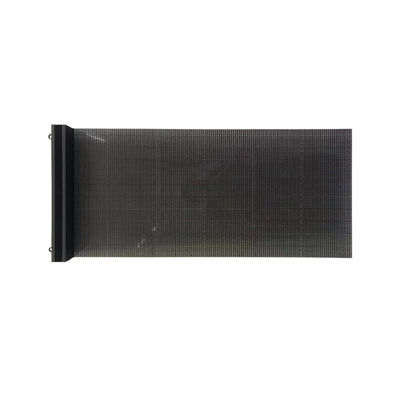

P3.9 Holographic Indoor LED Transparent Display 6KG Per Square Meter Rear Service
Product Description:
P3.9 Indoor Holographic Transparent LED Display is an innovative display solution designed for indoor applications that require a high level of visual engagement without compromising on aesthetics or space. This lightweight display system, weighing only 6kg per square meter, offers a perfect blend of technology and design.
Features:
-
Transparent:Industry premiere,with no structural backbone；Real fully transparent；Permeability can reach 70%
- Thin:Module thickness<3mm；Seamless curved surface mountingIntegrated seamlessly onto glass
- Foldable and arbitrarytransformation shape；Soft and bendable.lt can becustomized into different shapes according to different scenes, for example,triangles, ellipses, etc.
- Arbitrary cutting,seamless spiced display:The screen size can be arbitrarily cropped, the closer the distance betweenthe screen beads of the seamless splicing screen, the clearer the pixeldensity. And the seamless cropped screen is more flexible to match theinstallation and regional carrier.
Technical Parameters:
| Pixel Pitch (H/V) | W:3.9;H:3.9mm |
| LED Configuration | SMD1415 1R1PG1PB UV |
| Pixel Density | 65536dot/㎡ |
| Transparency | <66.66% |
| Drive Scheme | 18 aisle |
| Scan method | 0 Scan(6 layer PCB) |
| Refresh Rate | 1920-3840Hz |
| Module Size | 375/750/1125/1500X125mm(L/R) |
| Module Resolution | 96/192/288/384X32dot |
| Product Size | 375/750/1125/1500X500mm |
| Cabinet Resolution | 96/192/288/384X128dot |
| Cabinet Weight | 6kg/㎡ |
| IP Rating ( front/back) | IP42 |
| Brightness | 1000-5000nits/㎡ |
| Viewing Angle (H/V) | 140°/140° |
| Viewing Distance | 4m |
| Gray Scale | 16 bit |
| Max.Power Consumption | 800W/m² |
| Ave.Power Consumption | 240W/m² |
| Maintenance | Rear service |
| Environment | indoor |
| Operation Power | AC:100_240V;50/60Hz |
| Operating Temperature | ﹣10℃~40℃ (work) |
| Operating Humidity | 35%～85% (work),10%～90% |
| Operating Life | 100,000hours |
Applications:
-
Retail Displays: Enhance product showcases with dynamic holographic displays that capture the attention of shoppers and provide an immersive shopping experience.
-
Galleries and Exhibitions: Provide a unique viewing experience for art and exhibits, allowing visitors to see the artwork in a new light.
-
Corporate Settings: Use in conference rooms and lobbies for impactful presentations and informational displays that leave a lasting impression.
-
Entertainment Venues: Create immersive environments in theaters, clubs, and other entertainment spaces, adding depth and excitement to the atmosphere.
FAQ:
Q1: The model of LED display screens is generally represented by "P", such as P2, P3, P4... P8, P10. What does this mean?
A1: P3 P4..... P8, P10 indicates that the pixel pitch is 3mm, 4mm... 10mm, which determines the resolution of the display. The smaller the pixel pitch, the higher the resolution of the LED display.
Q2: What pixel pitch should I choose on my display?
A2: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q3: What information do I have to give you to order a monitor?
A3: You should provide the width/height of the monitor, main use, viewing distance, on-site photos and other special requirements before I can provide you with a detailed quotation list
Q4: How about delivery time?
A4: We will ship as soon as possible, but depending on the distance and some other necessary processes, it usually takes 2-3 weeks to receive the goods.
Q5: What if I don't know how to maintain the screen?
A5: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
