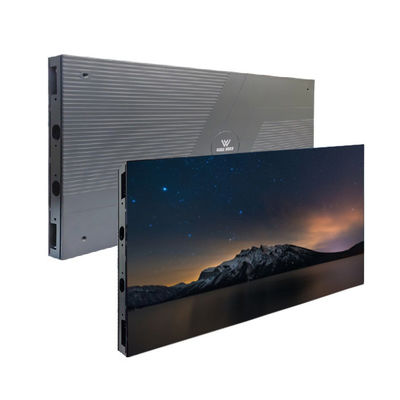

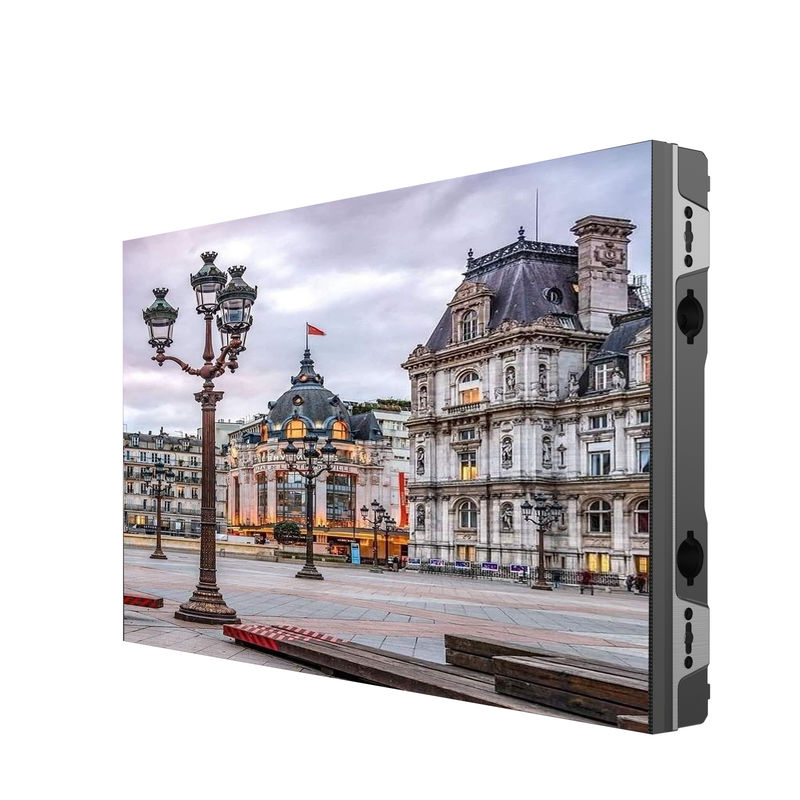

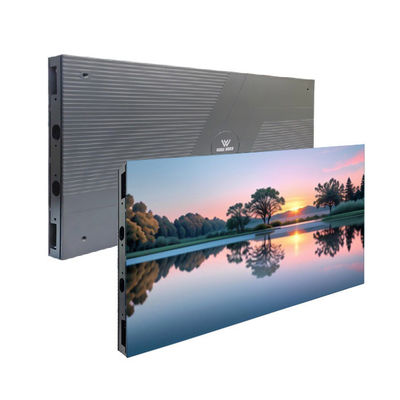

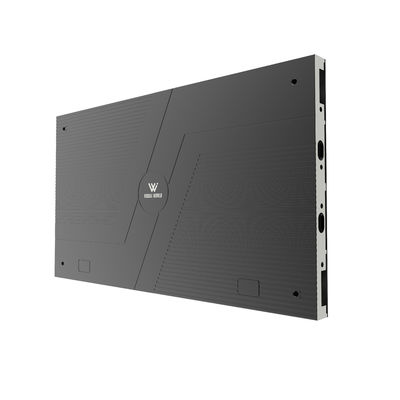

P0.9 Fine Pixel LED Display COB Front Service 600x337.5mm Die-casting AL
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 Fine Pixel LED Display COB Front Service 600x337.5mm Die-casting AL | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Weight: | 4.6kg | Brightness: | 0-2000nits |
| Cabinet Material: | Die-casting Aliuminum | LED Type: | COB |
| Cabinet Dimension: | 600x337.5mm | Maintenance: | Front Service |
| Highlight: | P0.9 Fine Pixel LED Display,COB Fine Pixel LED Display,Front Service Fine Pixel LED Display |
||
Product Description
P0.9 Fine Pixel LED Display COB Front Service 600x337.5mm Die-casting AL
Product Description:
Discover the cutting-edge display technology of the P1.25 Small Pixel Pitch LED Display COB, expertly designed by VISUAL WORLD. This 600x337.5mm cabinet, featuring front service access, is tailored for seamless integration and easy maintenance, making it a preferred choice for event professionals.
Features:
- Full flip-chip COB process, protection technology includes anti-collision, waterproof, moisture-proof, salt spray.
- The module adopts 3D ink printing technology, which increases the contrast by 20% and reduces the requirements for display brightness.
- Supports LCD status display panel, which can intuitively understand the real-time status of the cabinet operation.
- The module PCB adopts HDI multi-layer circuit board design, with good color uniformity and uniform temperature distribution.
- The entire series adopts Sunrise's energy-saving common cathode chip, which has higher performance and a grayscale level of up to 16bit.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m2 |
| IP Rating |
Front: IP65 Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type |
Mounting Hanging Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
Advertising publish / retail store / shopping mall / home cinema / welcome display / self-service business / exhibition hall / airport / subway / elevator / restaurant & hotel supplies / education / medical treatment /
FAQ:
Q1: The model of LED display screens is generally represented by "P", such as P2, P3, P4... P8, P10. What does this mean?
A1: P3 P4..... P8, P10 indicates that the pixel pitch is 3mm, 4mm... 10mm, which determines the resolution of the display. The smaller the pixel pitch, the higher the resolution of the LED display.
Q2: What pixel pitch should I choose on my display?
A2: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q3: What information do I have to give you to order a monitor?
A3: You should provide the width/height of the monitor, main use, viewing distance, on-site photos and other special requirements before I can provide you with a detailed quotation list
Q4: How about delivery time?
A4: We will ship as soon as possible, but depending on the distance and some other necessary processes, it usually takes 2-3 weeks to receive the goods.
Q5: What if I don't know how to maintain the screen?
A5: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
