P1.25 Flexible LED Display Panels Magnets 240*120mm Front Service 0.2KG
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.25 Flexible LED Display Panels Magnets 240*120mm Front Service 0.2KG | Pixel Pitch: | P1.25,P1.579,P1.667,P1.875,P2,P2.5,P3,P4 |
|---|---|---|---|
| Module Size: | 240*120mm | Curved Angle: | 110°-180° |
| Cabinet Material: | Steel Cabinet With Painting | Module Weight: | 0.2kg |
| Brightness: | 600-1000 Nits | Maintenance: | Magnets Front Service |
Product Description

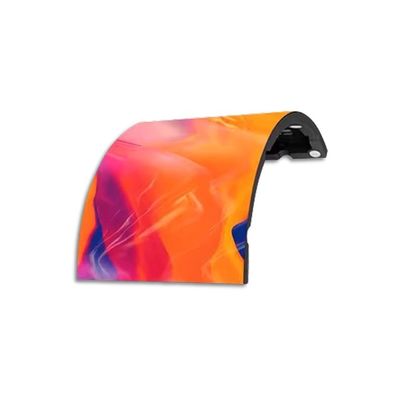

P1.25 Flexible LED Display Panels Magnets 240*120mm Front Service 0.2KG
Product Description:
The P1.25 Flexible LED Display Screen features a unique design with stable, advanced functionality. Its high flexibility and superior HD performance make it a better choice for outdoor LED displays compared to traditional models.
Features:
- Flexible Design
Soft PCB allows bending for versatile installations.

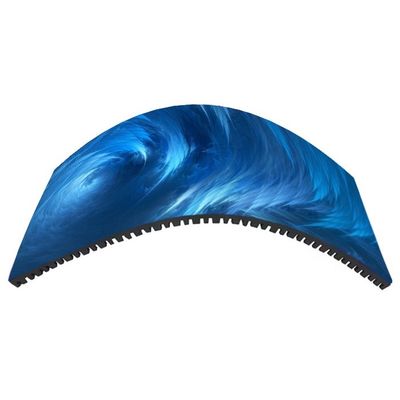

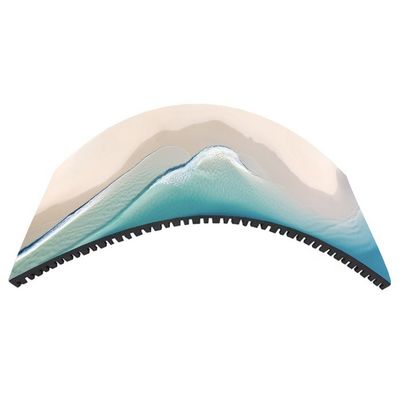

- Curved Display
Supports angles from 110° to 180°, both inner and outer curves.

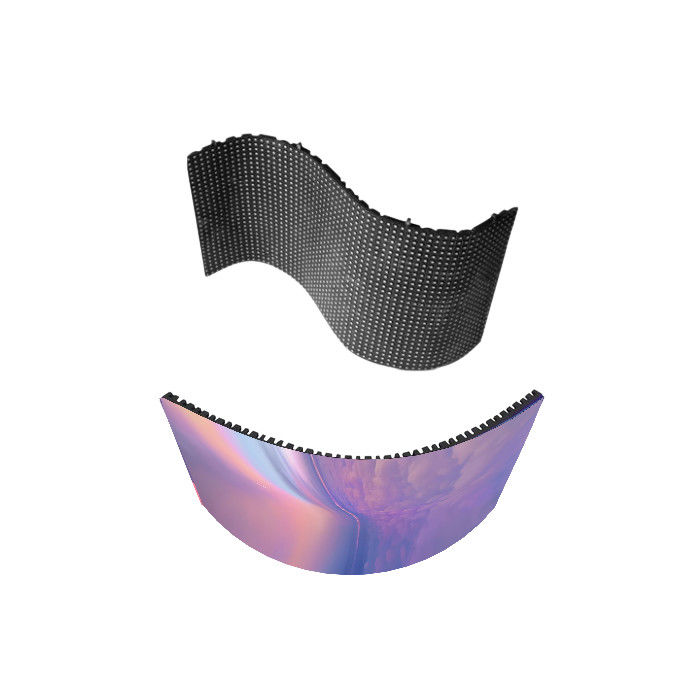

- Multiple Shapes
Adapts to round, convex, concave, S-shaped, and other irregular designs.
- Magnetic Front Service
Easy front maintenance with magnetic modules; optional safety rope for secure high-position installations.
Technical Parameters:
| Product Model: | P1.25 |
| Pixel Pitch: | 1.25 mm |
| LED Type: | SMD1010 |
| Module Resolution: | 192*96 pixels |
| Module Size: | 240*120mm |
| Module Weight: | 0.215 kg |
| Cabinet Material: | Iron with painting |
| Driving Type: | 1/48 |
| Brightness: | 600-1000 nits |
| Max Power: | 19 w/pcs |
| Maintenance: | Front & Rear service |
| Environment: | Indoor Use |
| IP Rating: | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting / Hanging |
| Gray Scale: | 14 bit |
| Viewing Angle: | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH |
Application:
-
Creative Designs: Adaptable for unique shapes (cubes, spheres, ribbons) and customizable angles.
-
Outdoor Advertising: Scalable, durable, excellent heat dissipation, long lifespan, low maintenance.
-
360° Displays: Ultra-thin, lightweight, bendable up to 180°, versatile shapes (cylinders, ribbons).
FAQ:
Q1: The model of LED display screens is generally represented by "P", such as P2, P3, P4... P8, P10. What does this mean?
A1: P3 P4..... P8, P10 indicates that the pixel pitch is 3mm, 4mm... 10mm, which determines the resolution of the display. The smaller the pixel pitch, the higher the resolution of the LED display.
Q2: What pixel pitch should I choose on my display?
A2: It mainly depends on the viewing distance, the size of the display, the desired effect and the customer's budget.
Q3: What information do I have to give you to order a monitor?
A3: You should provide the width/height of the monitor, main use, viewing distance, on-site photos and other special requirements before I can provide you with a detailed quotation list
Q5: How about delivery time?
A4: We will ship as soon as possible, but depending on the distance and some other necessary processes, it usually takes 2-3 weeks to receive the goods.
Q6: What if I don't know how to maintain the screen?
A6: When you place your order, we will provide you with the operating manual and software, and we can help you remotely adjust the software through the team.
