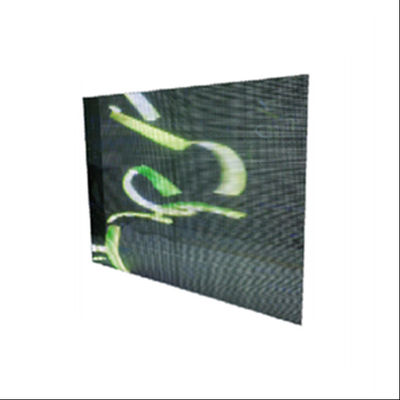

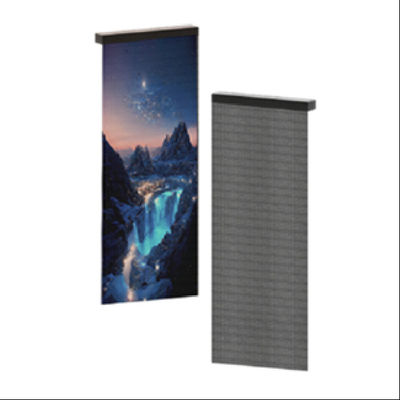

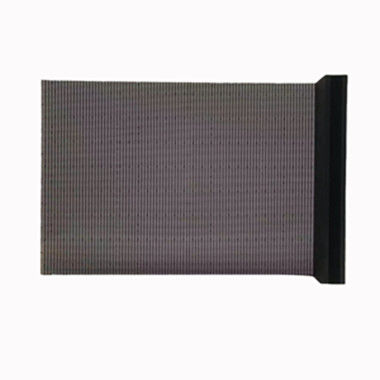

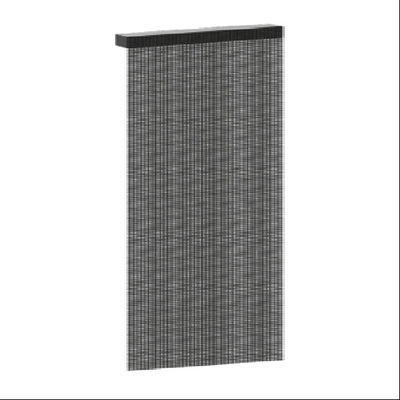

P3.9 Holographic Indoor LED Transparent Display Rear Service 70% High Transparency
Product Details:
Place of Origin: | CN |
Brand Name: | VW |
Certification: | EMC,CE,FCC,ROHS |
Model Number: | P3.9 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Plywood case, flight case |
Delivery Time: | 5-10 days |
Payment Terms: | T/T, L/C, D/A, D/P |
Supply Ability: | 3000sqm/month |
Detail Information |
|||
Product Name: | P3.9 Holographic Indoor LED Transparent Display Rear Service 70% High Transparency | Brightness: | 1000-5000nits |
---|---|---|---|
Waterproof: | IP42 | Led Type: | SMD1415 1R1PG1PB UV |
Driving Method: | Static | Transparent Rate: | 70% |
Maintenance: | Rear Service | Cabinet Size: | 600/1200/1800x500/600/700/800mm |
Cabinet Material: | Aluminum+PCB | Panel Weight: | 6 Kg/sqm |
Product Description
P3.9 Holographic Indoor LED Transparent Display Rear Service 70% High Transparency
Product Description:
P3.9 Indoor Holographic Transparent LED Display is an innovative display solution designed for indoor applications that require a high level of visual engagement without compromising on aesthetics or space. This lightweight display system, weighing only 6kg per square meter, offers a perfect blend of technology and design.
Features:
-
Transparent:Industry premiere,with no structural backbone;Real fully transparent;Permeability can reach 70%
- Thin:Module thickness<3mm;Seamless curved surface mountingIntegrated seamlessly onto glass
- Foldable and arbitrarytransformation shape;Soft and bendable.lt can becustomized into different shapes according to different scenes, for example,triangles, ellipses, etc.
- Arbitrary cutting,seamless spiced display:The screen size can be arbitrarily cropped, the closer the distance betweenthe screen beads of the seamless splicing screen, the clearer the pixeldensity. And the seamless cropped screen is more flexible to match theinstallation and regional carrier.
Technical Parameters:
Pixel Pitch (H/V) | W:3.9;H:3.9mm |
LED Configuration | SMD1415 1R1PG1PB UV |
Pixel Density | 65536dot/㎡ |
Transparency | <66.66% |
Drive Scheme | 18 aisle |
Scan method | 0 Scan(6 layer PCB) |
Refresh Rate | 1920-3840Hz |
Module Size | 375/750/1125/1500X125mm(L/R) |
Module Resolution | 96/192/288/384X32dot |
Product Size | 375/750/1125/1500X500mm |
Cabinet Resolution | 96/192/288/384X128dot |
Cabinet Weight | 6kg/㎡ |
IP Rating ( front/back) | IP42 |
Brightness | 1000-5000nits/㎡ |
Viewing Angle (H/V) | 140°/140° |
Viewing Distance | 4m |
Gray Scale | 16 bit |
Max.Power Consumption | 800W/m² |
Ave.Power Consumption | 240W/m² |
Maintenance | Rear service |
Environment | indoor |
Operation Power | AC:100_240V;50/60Hz |
Operating Temperature | ﹣10℃~40℃ (work) |
Operating Humidity | 35%~85% (work),10%~90% |
Operating Life | 100,000hours |
Applications:
-
Retail Displays: Enhance product showcases with dynamic holographic displays that capture the attention of shoppers and provide an immersive shopping experience.
-
Galleries and Exhibitions: Provide a unique viewing experience for art and exhibits, allowing visitors to see the artwork in a new light.
-
Corporate Settings: Use in conference rooms and lobbies for impactful presentations and informational displays that leave a lasting impression.
-
Entertainment Venues: Create immersive environments in theaters, clubs, and other entertainment spaces, adding depth and excitement to the atmosphere.
FAQ:
Q2: How do we ensure quality?
A2: Seven quality control steps ensure that the screens you order are of good quality
1). We are committed to using premium-grade LED components.
2). We have a complete quality inspection system, and professional technical workers and machines are used to inspect materials.
3). Each product is strictly tested at least 4 times before shipment.
4). All modules are subjected to a 48-hour high-temperature aging test before assembling the cabinet.
5). After the cabinet is assembled, all functions of each cabinet are tested.
6). All tested cabinets are assembled and debugged and then subjected to a 72-hour aging test.
7). All products and spare parts are checked and confirmed again during packaging.
Q3: How to operate and use it?
A3: Our technician will help you to configure LED screen by video call or by remote if you don’t know how to make LED screen work.
Q5: How long does it take to ship?
A5: Express and air freight usually take 5-10 days. Sea freight takes about 15-55 days according to different countries.
