P1.25 Flexible LED Display Screen Magnets Front Service Iron With Painting
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P1.25 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 2000sqm per month |
|
Detail Information |
|||
| Product Name: | P1.25 Flexible LED Display Screen Magnets Front Service Iron With Painting | Pixel Pitch: | P1.25,P1.579,P1.667,P1.875,P2,P2.5,P3,P4 |
|---|---|---|---|
| Module Size: | 240*120mm | Curved Angle: | 110°-180° |
| Cabinet Material: | Steel Cabinet With Painting | Module Weight: | 0.2kg |
| Brightness: | 600-1000 Nits | Maintenance: | Magnets Front Service |
Product Description

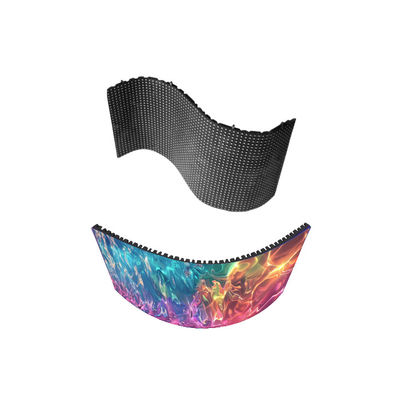

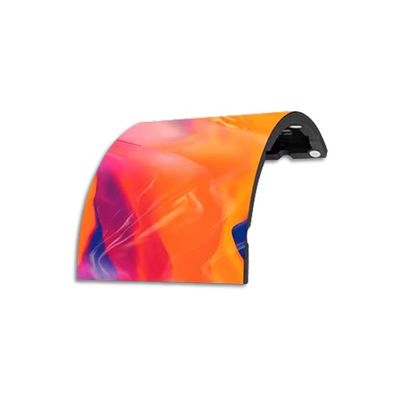

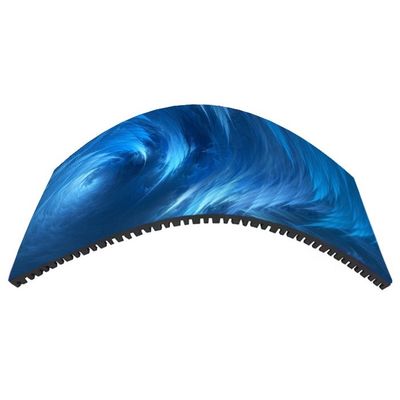

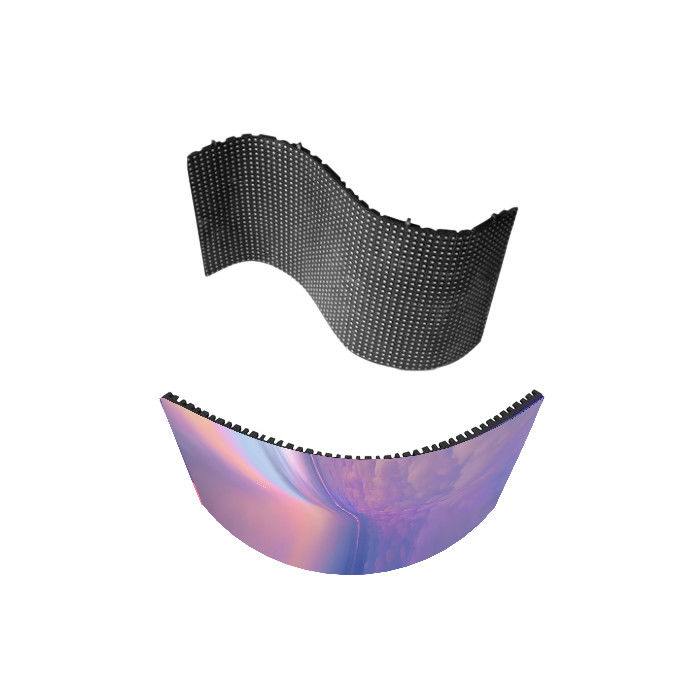

P1.25 Flexible LED Display Screen Magnets Front Service Iron With Painting
Product Description:
The P1.25 Flexible LED Display Screen features a unique design with stable, advanced functionality. Its high flexibility and superior HD performance make it a better choice for outdoor LED displays compared to traditional models.
Features:
- Flexible Design
Soft PCB allows bending for versatile installations.
- Curved Display
Supports angles from 110° to 180°, both inner and outer curves.
- Multiple Shapes
Adapts to round, convex, concave, S-shaped, and other irregular designs.
- Magnetic Front Service
Easy front maintenance with magnetic modules; optional safety rope for secure high-position installations.
Technical Parameters:
| Product Model: | P1.25 | P1.579 | P1.667 | P1.875 |
| Pixel Pitch: | 1.25 mm | 1.579 mm | 1.667 mm | 1.875 mm |
| LED Type: | SMD1010 |
SMD1212 |
SMD1212 | SMD1515 |
| Module Resolution: | 192*96 pixels | 152*76 pixels | 144*72 pixels | 128*64 pixels |
| Module Size: | 240*120mm | 240*120mm | 240*120mm | 240*120mm |
| Module Weight: | 0.215 kg | 0.203 kg | 0.195 kg | 0.216 kg |
| Cabinet Material: | Iron with painting | Iron with painting | Iron with painting | Iron with painting |
| Driving Type: | 1/48 | 1/38 | 1/36 | 1/32 |
| Brightness: | 600-1000 nits | 600-1000 nits | 600-1000 nits | 600-1000 nits |
| Max Power: | 19 w/pcs | 19 w/pcs | 19 w/pcs | 19 w/pcs |
| Maintenance: | Front & Rear service | Front & Rear service | Front & Rear service | Front & Rear service |
| Environment: | Indoor Use | Indoor Use | Indoor Use | Indoor Use |
| IP Rating: | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 | F: IP20, R: IP20 |
| Refresh Rate: | >3840 Hz | >3840 Hz | >3840 Hz | >3840 Hz |
| Installation Type: | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging | Mounting / Hanging |
| Gray Scale: | 14 bit | 14 bit | 14 bit | 14 bit |
| Viewing Angle: | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° | H:140°；V:140° |
| Operational Temp: | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ | -40℃~+60℃ |
| Operational Humidity: | 10%~90% RH | 10%~90% RH | 10%~90% RH | 10%~90% RH |
Application:
-
Creative Designs: Adaptable for unique shapes (cubes, spheres, ribbons) and customizable angles.
-
Outdoor Advertising: Scalable, durable, excellent heat dissipation, long lifespan, low maintenance.
-
360° Displays: Ultra-thin, lightweight, bendable up to 180°, versatile shapes (cylinders, ribbons).
Service and support:
Pre-Sale Services
-
Quick Responses: Inquiries addressed within 24 hours.
-
Market Analysis: Research and forecasts for better decision-making.
-
Customized Solutions: Tailored proposals to fit specific needs.
-
Samples Available: Datasheets and sample units for evaluation.
-
Extra Services: Custom packaging and factory visits upon request.
In-Sale Services
-
Production Updates: Regular progress reports.
-
Visual Tracking: Photos/videos are provided upon request.
-
Free Spare Parts: Complimentary extras for reliability.
After-Sales Support
-
Fast Issue Resolution: Complaints are handled within 24 hours, and solutions within 48 hours.
-
Warranty Coverage: 24-month product warranty.
-
Technical Training: Free training sessions for technicians.
-
Complete Documentation: Includes installation, software, and maintenance guides, plus control system software CD.
FAQ:
Q1:Are you a manufacturer or trading company?
Q2: How do we ensure quality?
A2: Seven quality control steps ensure that the screens you order are of good quality
1). We are committed to using premium-grade LED components.
2). We have a complete quality inspection system, and professional technical workers and machines are used to inspect materials.
3). Each product is strictly tested at least 4 times before shipment.
4). All modules are subjected to a 48-hour high-temperature aging test before assembling the cabinet.
5). After the cabinet is assembled, all functions of each cabinet are tested.
6). All tested cabinets are assembled and debugged and then subjected to a 72-hour aging test.
7). All products and spare parts are checked and confirmed again during packaging.
Q3:What is your MOQ?
A3:Any quantity is acceptable for your order. And the price is negotiable for large quantity.
Q4: What is your best service?
A4: 1: One to one sales engineer to customer responsibility system;
2. Know your project and provide the best solution for it;
3. Track your order and let you know each step and detail of it;
4. Teach you how to install and use the screen;
5. Care the subsequent use of your screen and ensure your after - sales service be well.
Q5: How long does it take to ship?
A5: Express and air freight usually take 5-10 days. Sea freight takes about 15-55 days according to different countries.
