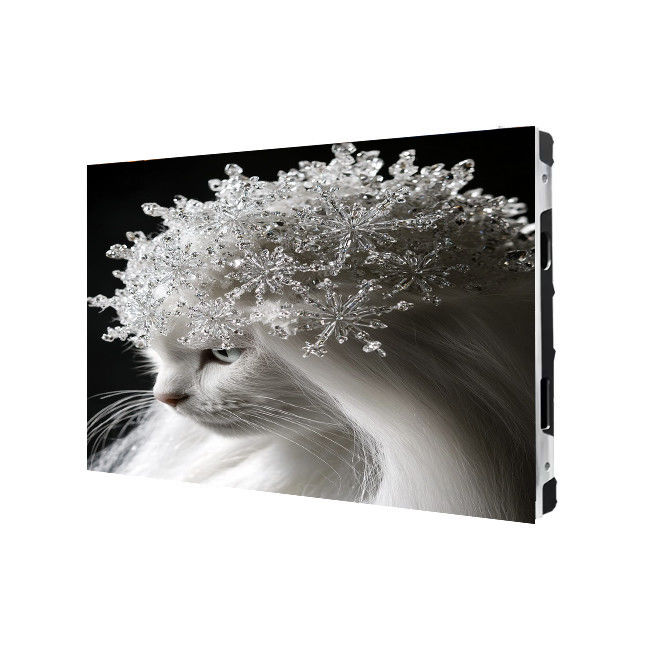

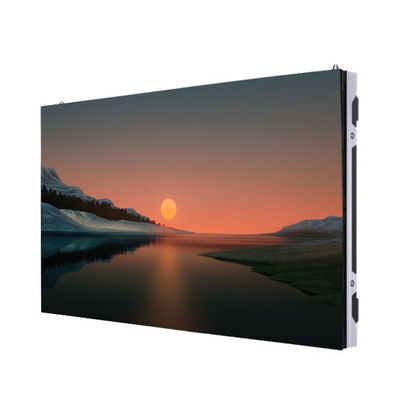

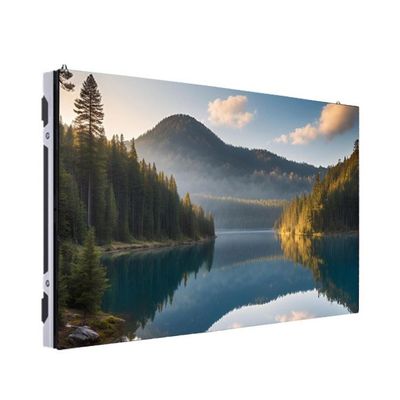

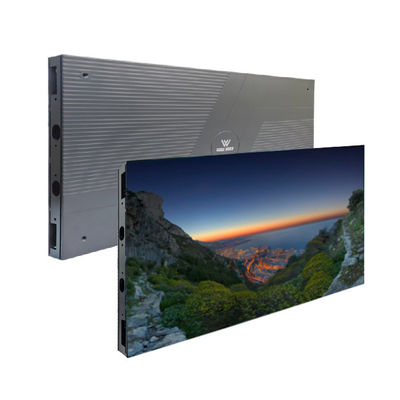

P0.9 COB Small Pitch LED Display Die-casting Aliuminum Front Service 600x337.5mm
Product Details:
| Place of Origin: | CN |
| Brand Name: | Visual World |
| Certification: | EMC,CE,FCC,ROHS |
| Model Number: | P0.9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case, export carton box |
| Delivery Time: | 12 work days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 sqm/month |
|
Detail Information |
|||
| Product Name: | P0.9 COB Small Pitch LED Display Die-casting Aliuminum Front Service 600x337.5mm | Pixel Pitch: | P0.7/P0.9/P1.25/P1.56 |
|---|---|---|---|
| Cabinet Material: | Die-casting Aliuminum | Cabinet Size: | 600x337.5mm |
| Maintenance: | Front Service | Brightness: | 600-800nits |
| Refresh Rate: | ＞3840Hz | Durability: | 100000 Hours |
| Highlight: | Die-casting Aliuminum LED Display,P0.9 COB LED Display,600x337.5mm LED Display |
||
Product Description
P0.9 COB Small Pitch LED Display Die-casting Aliuminum Front Service 600x337.5mm
Product Description:
Features:
- The complete flip-chip COB process integrates advanced protective technologies, including anti-collision, waterproofing, moisture resistance, and salt spray resistance. These features provide robust protection, ensuring LED screens remain free from blinding or malfunction, even in high-humidity or salt-laden environments.
- This module features 3D ink printing technology, enhancing contrast by 20% while minimizing the need for higher brightness levels. An integrated LCD status display panel provides real-time monitoring of cabinet operations, ensuring enhanced usability.
- The PCB design employs an HDI multi-layer circuit board, ensuring consistent color uniformity and efficient temperature management. Additionally, the series integrates Sunrise’s energy-efficient common cathode chips, delivering outstanding performance with up to 16-bit grayscale levels.
Technical Parameters:
| Model | P0.9 |
| Pixel Pitch | 0.9mm |
| LED Type | COB |
| Cabinet Dimension | 600*337.5*35mm |
| Module Size | 150x168.75 mm |
| Cabinet Weight | 4.6kg |
| Cabinet Material | Die-casting Aluminum |
| Driving Type: | 1/36 |
| maintenance | Front service |
| Brightness | 0-2000 nits |
| Max/Avg Power | 420/147 W/m² |
| IP Rating |
Front: IP65 / Rear: IP30 |
| Refresh Rate | >3840Hz |
| Installation Type |
Mounting / Hanging / Stacking |
| Gray Scale | 16bit |
| Viewing Angle | H:170°；V:170° |
| Operational Temp | -20℃~+50℃ |
| Operational Humidity | 10%-90%RH |
Applications:
- Digital Signage system
- Chain store
- Street furniture
- Billboard
- Football stadium
- Perimeter LED poster
- Arena display, etc.
FAQ:
Q1: Are you a manufacturer or a trading company?
A1: We are a professional OEM/ODM manufacturer with 10 years of professional experience in the LED display industry.
Q2: How is your factory doing in terms of quality control?
A2: Quality first. We attach great importance to quality control from beginning to end. We focus on every detail. Our factory has obtained ISO9001, ISO14001,CE, RoHS, FCC certification.
Q3: What is your minimum order quantity?
A3: Your order can accept any quantity. And the price for large quantities can be negotiated.
Q4: When will you deliver?
A4: According to the size and quantity of your order, we can deliver the led module within 3-5 working days and the finished led screen within 10-12 days.
Q5: What technical support can you provide?
A5: We provide various technical training free of charge, including the operation and maintenance training of LED display
in the factory. We can send a team of engineers to the customer's country to guide the installation.
in the factory. We can send a team of engineers to the customer's country to guide the installation.
Q6: How long is the warranty period?
A6: The standard warranty period is 1 year. Depending on the requirements, the time may be longer.
Q7: Do you provide free spare parts in every order?
A7: Yes, a certain number of spare parts will be provided free of charge, including modules, power lines, signal lines, LED lights, IC, masks, power supplies, receiving cards, etc.
