P0.7 COB Small Pitch LED Display Front Service Only 4.6kg Per Cabinet

P0.7 COB Small Pitch LED Display Front Service Only 4.6kg Per Cabinet
Brand Name
Visual World
Product Model
P0.7
Certificate
EMC,CE,FCC,ROHS
Country Of Origin
CN
MOQ
Negotiate
Unit Price
Negotiate
Payment Method
T/T
Supply Capacity
5000 sqm/month
Product Details
Highlight:

P0.7 COB LED Display

,

4.6kg COB LED Display

,

Front Service COB LED Display
Product Name: P0.7 COB Small Pitch LED Display Front Service Only 4.6kg Per Cabinet
Pixel Pitch: P0.7/P0.9/P1.25/P1.56
Cabinet Material: Die-casting Aliuminum
Cabinet Size: 600x337.5mm
Maintenance: Front Service
LED Type: COB
Cabinet Weight: 4.6kg
Installation Type: Mounting/Hanging/Stacking
Product Description
Detailed Specifications And Features
P0.7 COB Small Pitch LED Display Front Service Only 4.6kg Per Cabinet
Introducing our cutting-edge COB Small Pixel Pitch Display, designed to redefine visual experiences. This innovative display technology boasts superior performance and efficiency, ideal for various applications, from high-end digital signage to immersive virtual reality experiences.

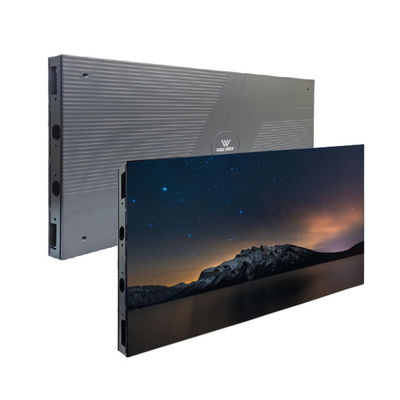

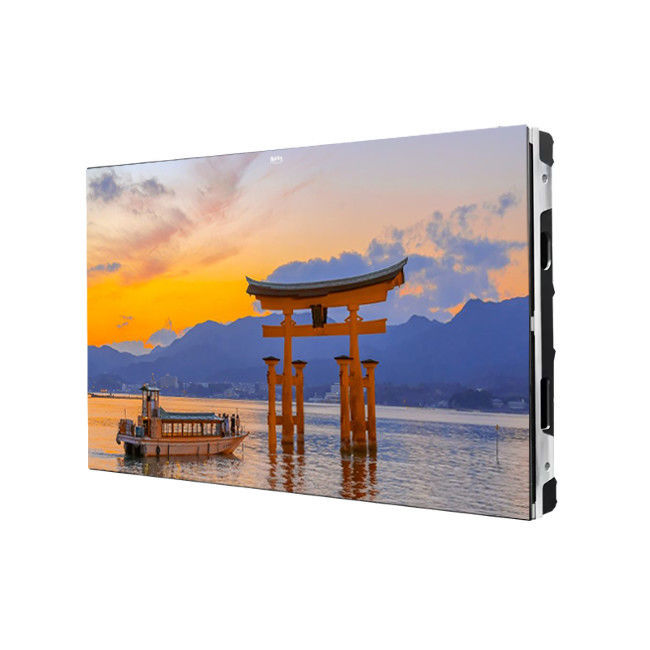

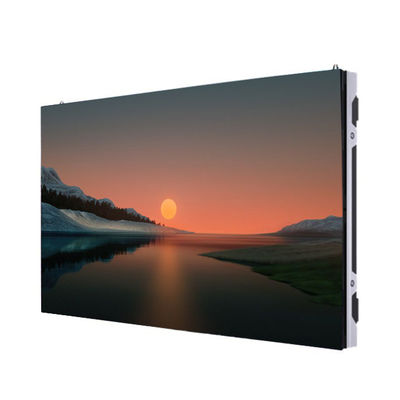

P0.7 COB Small Pitch LED Display showcasing high-resolution visual performance
Key Features
  • Full flip-chip COB process with comprehensive protection including anti-collision, waterproof, moisture-proof, and salt spray resistance
  • 3D ink printing technology increases contrast by 20% and reduces brightness requirements
  • LCD status display panel for real-time monitoring of cabinet operation status
  • HDI multi-layer circuit board design ensures excellent color uniformity and even temperature distribution
  • Sunrise energy-saving common cathode chip technology delivers higher performance with 16-bit grayscale
Technical Specifications
Parameter P0.7 P0.9 P1.25 P1.56
Pixel Pitch 0.7mm 0.9mm 1.25mm 1.56mm
LED Type COB COB COB COB
Cabinet Dimension 600*337.5*35mm 600*337.5*35mm 600*337.5*35mm 600*337.5*35mm
Module Size 150x168.75 mm 150x168.75 mm 150x168.75 mm 150x168.75 mm
Cabinet Weight 4.6kg 4.6kg 4.6kg 4.6kg
Cabinet Material Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum Die-casting Aluminum
Driving Type 1/36 1/36 1/27 1/48
Maintenance Front service Front service Front service Front service
Brightness 0-2000 nits 0-2000 nits 1500 nits 1000 nits
Max/Avg Power 390/136 W/m² 420/147 W/m² 330/100 W/m² 330/100 W/m²
IP Rating Front: IP65 Rear: IP30 Front: IP65 Rear: IP30 Front: IP65 Rear: IP30 Front: IP65 Rear: IP30
Refresh Rate >3840Hz >3840Hz >3840Hz >3840Hz
Installation Type Mounting Hanging Stacking Mounting Hanging Stacking Mounting Hanging Stacking Mounting Hanging Stacking
Gray Scale 16bit 16bit 16bit 16bit
Viewing Angle H:170°; V:170° H:170°; V:170° H:170°; V:170° H:170°; V:170°
Operational Temp -20℃~+50℃ -20℃~+50℃ -20℃~+50℃ -20℃~+50℃
Operational Humidity 10%-90%RH 10%-90%RH 10%-90%RH 10%-90%RH
Applications
  • Digital Signage systems
  • Chain stores
  • Street furniture
  • Billboards
  • Football stadiums
  • Perimeter LED posters
  • Arena displays
Technical diagram of P0.7 COB LED display components and structure P0.7 COB LED display installation and application examples
Service and Support
Pre-sale Services
  • Inquiries answered within 24 hours
  • Market research and forecasts
  • Customized solutions based on customer requirements
  • Data sheets and samples provided
  • Additional services including custom packing and factory visits
In-sale Services
  • Continuous production monitoring
  • Photos and videos of production available upon request
  • Free spare parts included
After-sale Services
  • Complaints addressed within 24 hours
  • Maintenance guidance and solutions within 48 hours
  • 24-month comprehensive warranty
  • Free technician training
  • Free documentation including installation guide, software manual, maintenance guide, and control system software CD
Frequently Asked Questions
What types of LED displays do you provide?
We offer comprehensive LED display solutions including indoor, outdoor, rental, advertising, transparent, and poster LED displays.
Do your LED displays comply with international certification standards?
Yes, our LED displays are certified to meet various international standards including CE, RoHS, and FCC certifications.
Do you support custom design and customization requests for your LED displays?
Yes, we provide custom design and production services tailored to meet specific customer requirements and demands.
How do you guarantee product quality?
Seven comprehensive quality control steps ensure optimal performance:
  1. Long-term partnerships with renowned industry leaders
  2. Material inspection by professional workers and automated systems
  3. Individual module debugging
  4. 48-hour aging test for all modules prior to assembly
  5. Complete cabinet functionality testing by engineers and specialized equipment
  6. 72-hour aging test for complete screens before shipment
  7. Final comprehensive inspection of all details before packaging
What is the warranty period?
We provide a comprehensive 2-year warranty on all our LED display products.
