67% Transparent Rate Indoor Holographic Transparent LED Display with 6KG Cabinet

67% Transparent Rate Indoor Holographic Transparent LED Display with 6KG Cabinet
Brand Name
VW
Product Model
Indoor Holographic Transparent LED DIsplay
Certificate
CE, ROHS
Country Of Origin
China
MOQ
Negotiable
Unit Price
Negotiable
Payment Method
T/T
Supply Capacity
3000 sqm/month
Product Details
Highlight:

Indoor Holographic Transparent LED Display

,

Light-Weight Holographic Transparent LED Display

Product Name: 67% Transparent Rate Indoor Holographic Transparent LED Display With 6KG Cabinet
LED Type: SMD 1415
Brightness: 1000 —— 5000 Nits
Viewing Angle: H:140° V:140°
Cabinet Weight: 6 KG/㎡
IP Rating: IP 42
Operation Temperature: -10℃ —— 40 ℃
OPeration Humidity: 35% —— 85%
Max/Avg Power Consumption: 800 / 240 W/㎡
Life Span: 10,000 Hours
Product Description
Detailed Specifications And Features

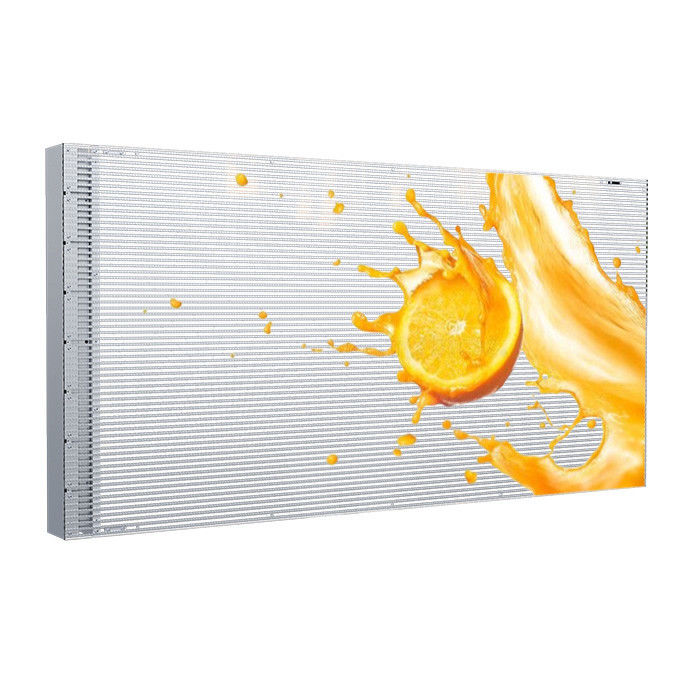

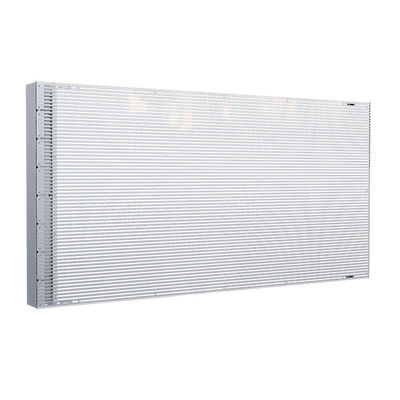

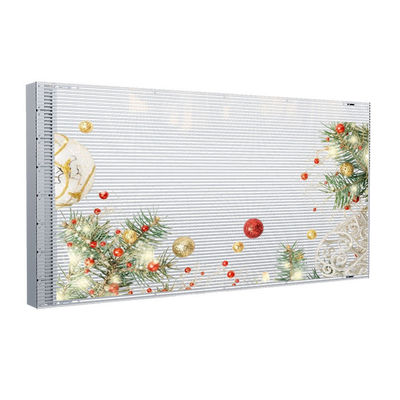

67% Transparent Rate Indoor Holographic Transparent LED Display with 6KG Cabinet



Product Description



Experience next-level digital displays with our 67% Transparent Indoor Holographic LED Display, designed for stunning visual presentations while maintaining visibility through the screen. Weighing just 6kg per cabinet, this ultra-lightweight display offers seamless integration into modern architectural and retail environments.



Product Feature



High-Transparency Visuals

  • Highly transparent with a 66.7% (P3.9) and 70% (P6.25) transparency rate, delivering clear, holographic visuals.


High-Resolution Displays:

  • Choose from P3.9 for detailed visuals or P6.25 for broader coverage.
  • High-resolution modules (up to 384 × 32 dots for P3.9 and 288 × 16 dots for P6.25) ensure sharp, clear images.

Wide Viewing and Installation Adaptability

  • Optimal viewing distances: 4 meters (P3.9) and 6 meters (P6.25) ensure engaging visuals for close and medium ranges.
  • Lightweight and modular design (cabinet weight: 6 kg/m²) simplifies installation on glass walls or frames

Advanced LED Technology:

  • Long-lasting SMD 1415 LEDs (10,000-hour lifespan).
  • 16-bit gray scale for rich colors and smooth transitions.

Flexible Design:

  • Multiple module and cabinet sizes to fit various applications:
    • Modules: 375/750/1125/1500 × 125mm (P3.9), 600/1200/1800 × 100mm (P6.25).
    • Cabinets: 375/750/1125/1500 × 500mm (P3.9), 600/1200/1800 × 500/600/700/800mm (P6.25).

Product Technical Parameters



Product Type Indoor Holog Transparent LED Display
Pixel Pitch P3.9 P6.25
LED Type SMD 1415
Life Span 10,000 hours
Transpare Rate <66.7% <70%
Viewing Distance 4m 6m

Module  Size

375/750/1125/1500 *125mm 600/1200/1800 *100mm
Module Resolution 96/192/288/384 * 32dot 96/192/288 * 16 dot
Cabinet Size 375/750/11251500 * 500mm 600/1200/1800 * 500/600/700/800
Cabinet Resolution 96/192/288/384 * 128 dot 96/192/288 * 80/96/112/128 dot
Cabinet Weight  6 KG/㎡
Operationg Power AC :100-240V 50/60HZ
Max / Avg Power Consumption 800/240 W/㎡
Gray Scale 16BIt
Brightness 1000 —— 5000 nits/㎡
Operation Humidity 35% —— 85%
OPeration Temperature -10 ℃ —— 40℃
IP Rating IP 42



Product Application



67% Transparent Rate Indoor Holographic Transparent LED Display with 6KG Cabinet 0



67% Transparent Rate Indoor Holographic Transparent LED Display with 6KG Cabinet 1



67% Transparent Rate Indoor Holographic Transparent LED Display with 6KG Cabinet 2



67% Transparent Rate Indoor Holographic Transparent LED Display with 6KG Cabinet 3
