Fixed LED Display with 73mm Thick Cabinet and Quick Installation 960 * 540 * 73mm
Product Details:
| Place of Origin: | China |
| Brand Name: | VW |
| Certification: | CE, ROHS |
| Model Number: | Fixed LED Display |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Plywood Case, Carton Box |
| Delivery Time: | 15 days |
| Payment Terms: | T/T |
| Supply Ability: | 3000 sqm/month |
|
Detail Information |
|||
| Product Name: | P3.75 P5 P7.5 Fixed LED DIsplay With 16:9 Ratio DIsplay And 73mm Thick Cabinet | Module Size: | 480 * 270 Mm |
|---|---|---|---|
| Cabinet Dimension: | 960 * 540 * 73 | Cabinet Weight: | 12.5KG - 13 KG |
| Refresh Rate: | >1920Hz | Gray Scale: | 14 Bit |
| Viewing Angle: | H:140°；V:120° | Operation Temperature: | -20°C~+60°C |
| Operaion Humidity: | 10% —— 90% | ||
| Highlight: | Quick Installation LED Display,73mm Thick Cabinet LED Display,960 * 540 LED Display |
||
Product Description

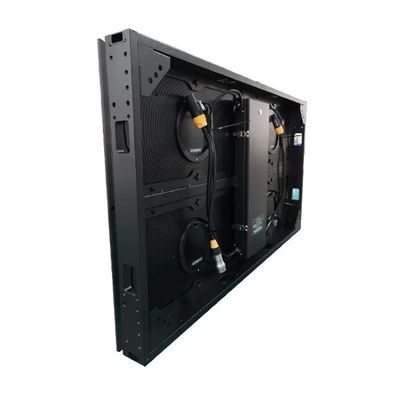

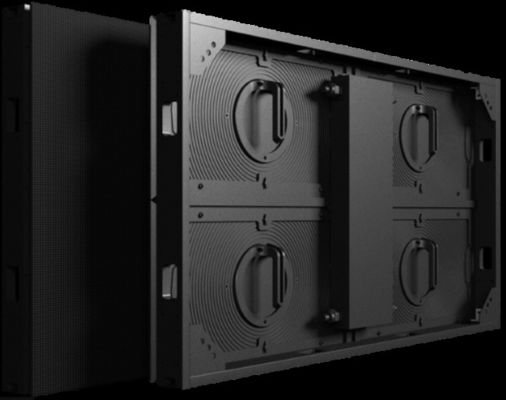

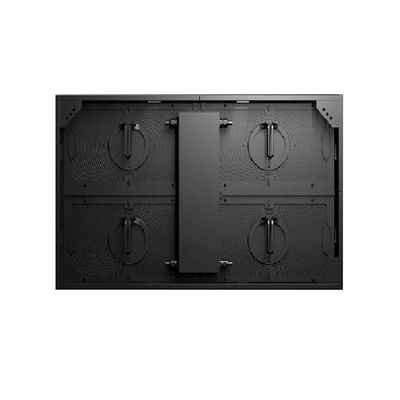

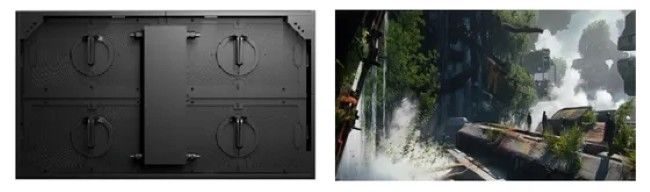

Fixed LED DIsplay with 73mm thick Cabinet and Quick Installation and Dismantling
Product Description
Transform your visual communication with the all-new Fixed LED Display! This innovative solution boasts a remarkably thin 73mm cabinet, making it a dream for both installation and transportation.
Product Feature
- Ultra-Slim Design (73mm): The display boasts a remarkably thin cabinet, making it ideal for space-constrained installations.
- Quick Installation & Dismantling: The modular design allows for easy and efficient assembly and disassembly.
- High-Resolution Display: The available pixel pitches (3.75mm, 5mm, and 7mm) provide excellent image quality and clarity.
- Wide Viewing Angles: The display offers wide horizontal and vertical viewing angles, ensuring visibility from various perspectives.
Technical Parameters
| Model | FXBOutdoor3.75 | FXBOutdoor3.75 | FXBIndoor 5 | FXBOutdoor 5 | FXBOutdoor 7 |
| Pixel Pitch | 3.75mm | 3.75mm | 5mm | 5mm | 7mm |
| LED Type | SMD2020 | SMD1921 | SMD2020 | SMD1921 | SMD2727 |
| Module SIze | 480*270mm | ||||
| Cabinet Dimension | 960*540*73mm | ||||
| Cabinet Material | Aluminum Profile | ||||
| Cabinet Weight | 12.5KG | 13KG | 12.5KG | 13KG | 13KG |
| Brightness | 1000nits |
5000nits |
1000nits | 5500nits | 5500nits |
| Max/Avg Power | 560/196 W/㎡ | 660/223 W/㎡ | 560/196 W/㎡ | 660/231 W/㎡ | 660/231 W/㎡ |
| Refresh Rate | >1920HZ | ||||
| Gray Scale | 14 Bit | ||||
| Viewing Angle | H:140 ° V:120° | ||||
| IP Rating | F:IP20 R:IP54 | F:IP65 R:IP54 | F:IP20 R:IP20 | F:IP20 R:IP20 | F:IP65 R:IP54 |
| Operational Temp | -20℃ —— +60℃ | ||||
| Operational Humidity | 10% —— 90% | ||||
Product Application
Ceremonies, Concerts, Speeches, Weddings, Live Competitions
Q&A
Q1: Why choose Green Visual World?
A1: How to Select = High Quality + Strict Quality Control + Aging Time + Prompt Shipping Time + Professional & Quick Reply + Risk Free
Visual World = Assured Quality + 5 Steps Strict QC + 72 Hours Aging Time + Ship as fast as we can + Superior 99.8% Customer Satisfaction + 2 Years Warranty.
Q2: What kind of LED display do you offer?
A2: Our products cover LED full color display for indoor and outdoor, Rental LED Display, LED advertisement display, LED stage display, LED irregular-shape display, truck mobile led display, LED sports display, LED traffic information display etc.
Q3: Are there big differences in vision and price?
A3: Yes. The closer the pixel distance, the clearer the display screen can be seen, and the price is relatively high.
