P8 Outdoor Fixed LED Display Screen 960x960mm Seamless Splicing For Advertising
Product Details:
| Place of Origin: | CN |
| Brand Name: | VW |
| Certification: | CE, ROHS, LVD, EMC |
| Model Number: | P8 |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiate |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Plywood case |
| Delivery Time: | 8-10 work days |
| Payment Terms: | T/T, Western Union, D/P |
| Supply Ability: | 2000 sqm/month |
|
Detail Information |
|||
| Product Name: | P8 Outdoor Fixed LED Display Screen 960x960mm Seamless Splicing For Advertising | Pixel Pitch: | 8 Mm |
|---|---|---|---|
| LED Type: | SMD2727 | Cabinet Dimension: | 960x960 Mm |
| Module Size: | 480x320 Mm | Pixel Density: | 15625 Dots/sqm |
| Module Connection: | Hard Connection | Cabinet Weight: | 22 Kg |
| Cabinet Material: | Aluminum Profile | Driving Type: | 1/4 |
| Highlight: | 960x960mm Outdoor Fixed LED Display Screen,P8 Outdoor Fixed LED Display Screen |
||
Product Description
P8 Outdoor Fixed LED Display Screen 960x960mm Seamless Splicing For Advertising
Product Description:
The Outdoor Fixed LED Display Screen is a highly reliable and durable product suitable for indoor and outdoor applications. It features a working voltage of AC100-240V/50-60HZ, a module connection of hard connection, a storage temperature of -40℃~+60℃, and a lifespan of ≥100,000hrs. It is a perfect solution for outdoor fixed screens, fixed LED displays, and outdoor fixed LED display applications. With its high-quality components and advanced technology, it can provide a stunning visual experience to its users. It can also withstand extreme environmental conditions, making it an ideal choice for outdoor and commercial applications.
Features:
- Dual Port Module
These modules feature two connection ports, both of which can be used, eliminating the need to choose between a left or right side during installation or repairs.
- Front and Rear Service
Both the module and power box can be accessed from the front or rear, providing flexibility and convenience for various project requirements.
- Waterproof
With an IP66 protection rating, the display is durable and stable, making it ideal for outdoor use.
- Efficient Heat Dissipation

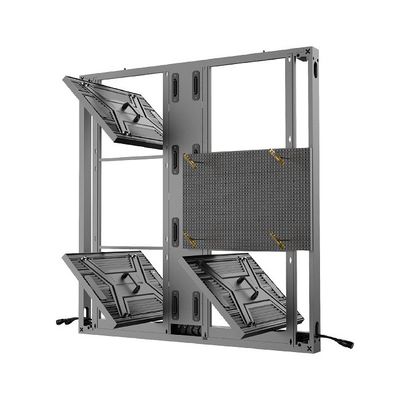

Constructed with an aluminum profile, the frame effectively dissipates heat. The open design of the modules enables heat to pass through, extending the display's lifespan.
- Hard Connection
Modules are directly connected to the hub board without cables, offering quick and easy setup with precise alignment and eliminating the need for cable management.
Technical Parameters:
| Product Name | Outdoor Fixed LED Display Screen |
| Pixel Pitch: | 8 mm |
| LED Type: | SMD2727 |
| Cabinet Dimension: | 960x960 mm |
| Cabinet Resolution: | 120*120 pixels |
| Module Size: | 480x320 mm |
| Module Resolution: | 60*40 pixels |
| Module Qty/cabinet: | 2x3=6pcs |
| Pixel Density: | 15625 dots/sqm |
| Cabinet Weight: | 22 kg |
| Cabinet Material: | Aluminum profile |
| Cabinet Color: | Black / White |
| Driving Type: | 1/4 |
| Brightness: | 6000/9000 nits |
| Max/Avg Power: | 580/165 W/m2 |
| Maintenance: | Front & Rear service |
| Using Condition: | Outdoor use |
| IP Rating: | IP66 |
| Refresh Rate: | >3840 Hz |
| Installation Type: | Mounting/Stacking |
| Gray Scale: | 14 bits |
| Viewing Angle: | H:140°；V:140° |
| Viewing Distance: | ≥10m |
| Operational Humidity: | 10%~90% RH |
Applications:
The application of outdoor LED displays can include highway billboards for high-traffic advertising, pole-mounted LED walls for urban messaging, roadside posters for dynamic content, and large LED screens in sports stadiums to enhance both advertising and the fan experience.
Installation:
Seven installation ways are as follows:
FAQ:
Q1: What is the control system? How is it?
A1: We use the Nova Taurus Series asynchronous control system. Support cluster play and management. Support APP/Phone/ WIFI/ Ipad/Laptop/ PC/ Cloud control. It’s very easy and convenient to control.
Q2: Can you accept the sample orders?
A2: Yes, we accept sample orders for quality verification and market testing.
Q3:Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design first based on our sample.
Q4. How about your delivery time?
A4: Generally, it will take 7-15 days after receiving your deposit. The specific delivery time depends on the items and the quantity of your order.
Q5:How about your Warranty Term?
A5: 2-year warranty. Structure design, installation problem, system problem, how to use the screen…don’t worry, we have a professional after-sale team to solve any questions after you place an order. And your exclusive sales engineer will also help you get over any problems.
