• P2.97 Sheet Metal Indoor Fixed LED Display RGB Full Color Seamless Splicing
P2.97 Sheet Metal Indoor Fixed LED Display RGB Full Color Seamless Splicing

P2.97 Sheet Metal Indoor Fixed LED Display RGB Full Color Seamless Splicing

Product Details:

Place of Origin: CN
Brand Name: VW
Certification: CE, ROHS
Model Number: P2.97

Payment & Shipping Terms:

Minimum Order Quantity: Negotiate
Price: Negotiate
Packaging Details: Plywood case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 2000sqm/month
Get Best Price Contact Now

Detail Information

Tube Chip Color: RGB Full Color Usage: Indoor Fixed Installation
Pixels Density: 112896 Dots/sqm Display Function: Module Flash, Synchronous/asynchronous Control
Application: Indoor Advertising Video Wall Module Connection: Magnet
Warranty: 2 Years Life Span: 100000 Hours
High Light:

Sheet Metal Indoor Fixed LED Display

,

P2.97 Indoor Fixed LED Display

,

Seamless Splicing P2.97 led Display

Product Description

Indoor P2.97 Fixed LED Screen Front Access Sheet Metal 500x1000mm



LED cabinet adopting sheet metal is the most cost-effective LED screen for indoor led projects. Due to fixed installation, we optimized product costs by changing redundant components and materials without changing product visual function and safety, thereby achieving cost control and improving materials utilization.



Product Quick Details:

1. Cost-effective

2. Front service

3. Quality cabinet

4. Seamless splicing

5. Light weight





TECHNICAL SPECIFICATIONS

Product Model: FS
Pixel Pitch: 2.97 mm
LED Type: SMD2020
Cabinet Dimension: 500x1000 mm
Cabinet Resolution: 168*336 pixels
Module Size: 250x250 mm
Module Resolution: 84*84 pixels
Module Qty/cabinet: 2x4=8pcs
Pixel Density: 112896 dots/sqm
Cabinet Weight: 14 kg
Cabinet Material: Steel
Driving Type: 1/28
Brightness: 600-1000 nits
Max/Avg Power: 600/210 W/m2
Maintenance: Front service
Environment: Indoor Use
IP Rating: IP20
Refresh Rate: >3840 Hz
Installation Type: Mounting/Hanging/Stacking
Gray Scale: 14 bits
Viewing Angle: H:140°;V:140°
Operational Temp: -20℃~+50℃
Operational Humidity: 10%~90% RH





FEATURES

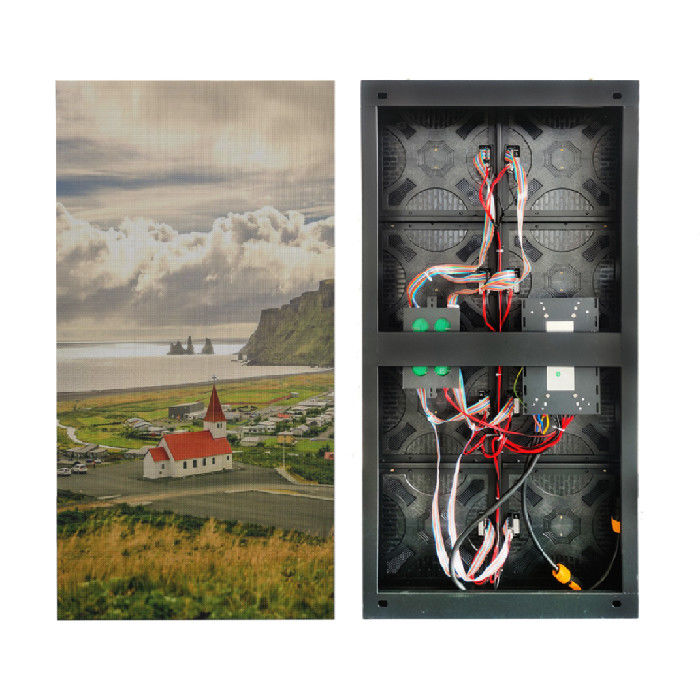

This panel is designed for front maintenance. Led module is connected by magnets from front. 500x1000mm cabinet is only weighing 14kg same like die-casting aluminum. The installation is quick and easy with light frame and fast lock. If maintenance is required, use vacuum front service tool to remove the module on the front, then to access power supply and receiving card.



1. COST EFFECTIVE

Optimize the cost of the structure and enhance the competitiveness of the product. replacing the die-casting box with this product solution to complete the same fixed installation project.

2. FRONT SERVICE

Remove the screws on the back door, and open it to check the led module, cables and other components.

3. QUALITY CABINET

Sophisticated cabinet manufacturing process ensures the integrity and quality of the frame, resulting in a smooth and good screen surface.

Audience can watch the screen from wide viewing angles, horizontal 140°, vertical 140°.

4. SEAMLESS SPLICING

Exquisite sheet metal technology enables seamless connection between modules during assembly.

5. LIGHT WEIGHT

By simplifying the structure, improve the material utilization and reduce the weight while ensuring the basic function and practicality of the led panel.





APPLICATION FIELD

Corporate Culture Wall

Live room

Office area

Indoor activity area

Indoor advertising

Creative modeling

Metro station

Airport





ACCESSORIES

Colorlight / Novastar control system
Power supply
Receiving card
Hub board
Main signal cable
Main power cable
Module power cable
Module safety rope
Flat cable
module mask
module shell
LED
IC





CASE

P2.97 Sheet Metal Indoor Fixed LED Display RGB Full Color Seamless Splicing 0





FAQ

Q1. Who is Visual World?

Visual World is a modern factory dedicated to applying artificial intelligence to the LED industry. In terms of product selection, we use big data to analyze the traditional LED display industry based on AI technology, and select the most popular LED products in the market for R&D and promotion. The AI system will help our clients & partners to grasp the market accurately and formulate market strategies, so as to win from the competition in the industry.



Q2. Why choose Visual World?

-Over 20000sqm factory area

-Complete production equipment: SMT machines, temperature furnaces, LED dead pixel detectors, screw fixing machines, packaging machines, aging racks, assembling lines, different kinds of test machine like temperature impact, vibration, waterproof, salt spray test machines.

-Senior sales and technical teams with more than 20 years industry experiences

-Rich project experiences, hundreds of cases all over the world

-Product certification: CE, ROHS, EMC, LVD, ETL, FCC

-Online 24/7 technical support



Q3. What led brand do you use for this model?

We use NationStar SMD LED which provides stable quality and longer lifespan for this led screen.



Q4. How to do the configuration with novastar controller on site?

Don’t worry! We will finish the configuration when doing aging test. Then the configuration data will be saved in a u-disk, which will be sent to you with the shipment together. When you receive the shipment, you just need to do the wiring, and follow the software user manual we prepare for you. Or we can remote control the computer to light up the screen.



Q5. What is the delivery time for 20sqm?

The delivery time will be 8 days after getting 30% deposit. The time may vary according to orders status.
